A--T04K1 - 406D9

MODIFICATION LOCATION OF BUILD CODE (DAM)

The tyre inflation pressure label has changed to include the paint code and build code sequence .

1 - TYRE PRESSURE LABEL

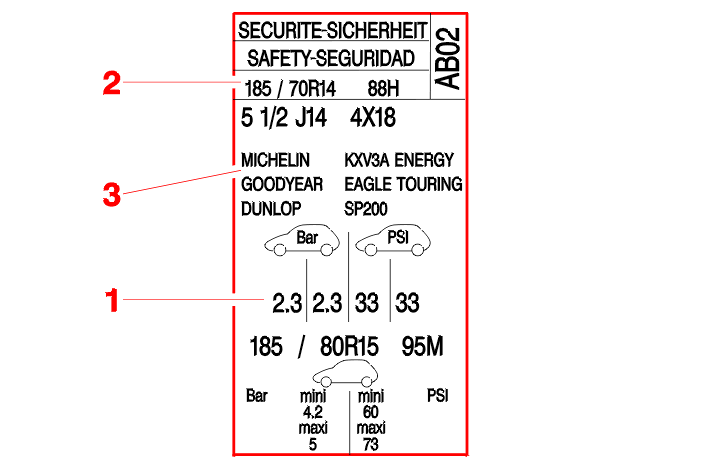

1 - 1 - EARLIER SPECIFICATION

(1) : Tyre pressures .

(2) : Tyre size .

(3) : Approved tyres .

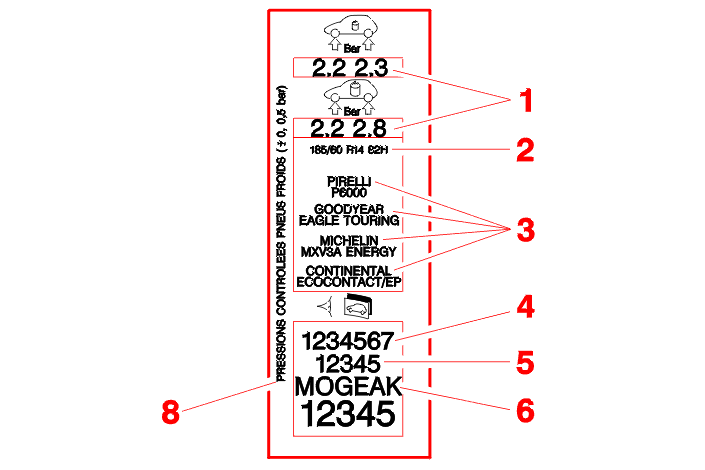

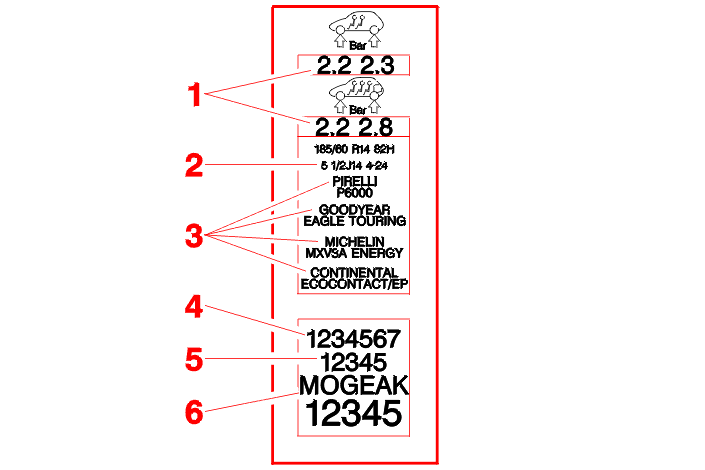

1 - 2 - NEW SPECIFICATION

(1) : Tyre pressures .

(2) : Tyre size .

(3) : Approved tyres .

(4) : Build code .

(5) : Serial number .

(6) : Paint reference .

(7) : VIN number .

(8) : Checking tolerance .

WARNING : on certain vehicles, the build code no longer contains 6 characters but 7 .

2 - INSTALLATION

2 - 1 - TYRE PRESSURE LABEL

Earlier installation .

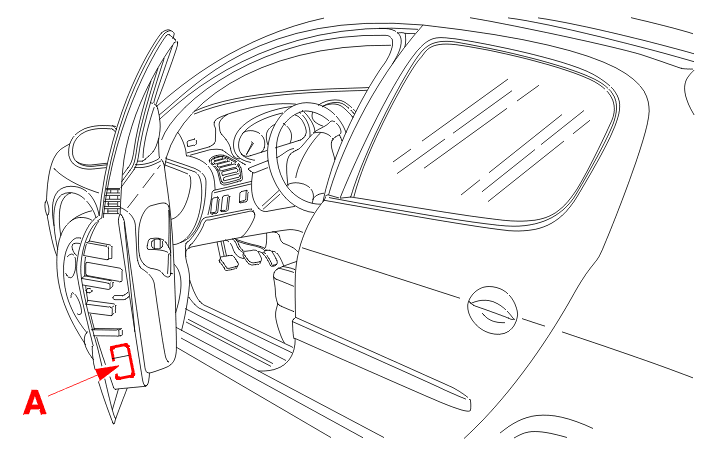

(A) Tyre inflation pressure label on edge of driver's door .

DAM FROM : 814489

Later installation .

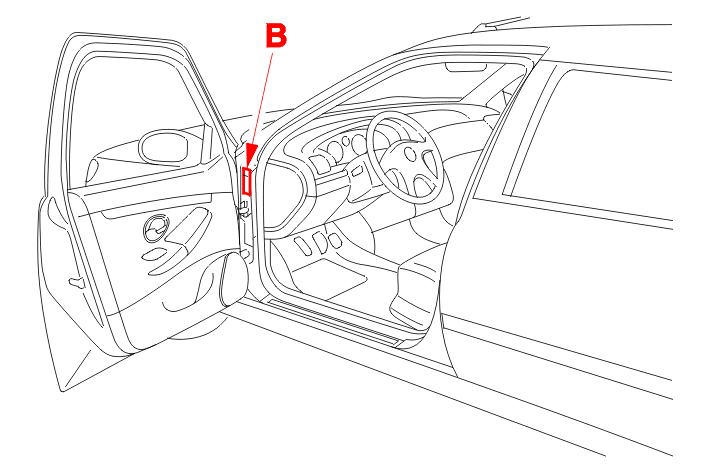

(B) Tyre pressure label on the front door pillar on the driver's side .

3 - BUILD CODE - PAINT CODE - SEQUENCE CODE

3 - 1 - EARLIER INSTALLATION

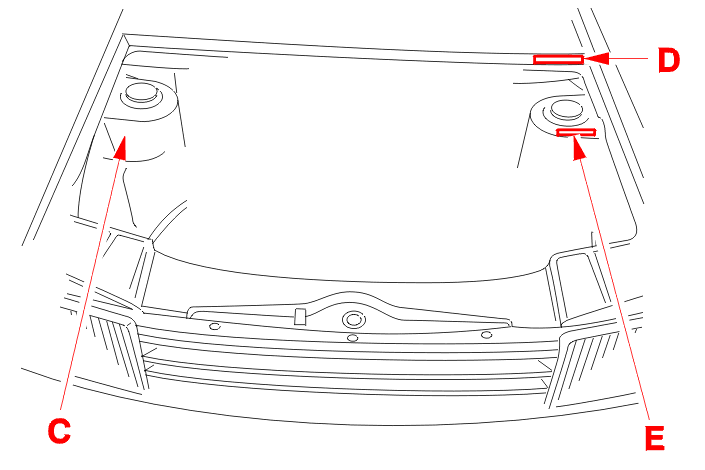

The build code number is located at : (C) - (D) or (E) .

3 - 2 - LATER INSTALLATION

COUPE

The build code number is located at (E), on the front left shock absorber tower .

The new tyre pressure label including the build code, the paint code and the serial number, is at (B), on the driver's side .
