B1BB1XK1 - 406D9 DW10 ENGINE

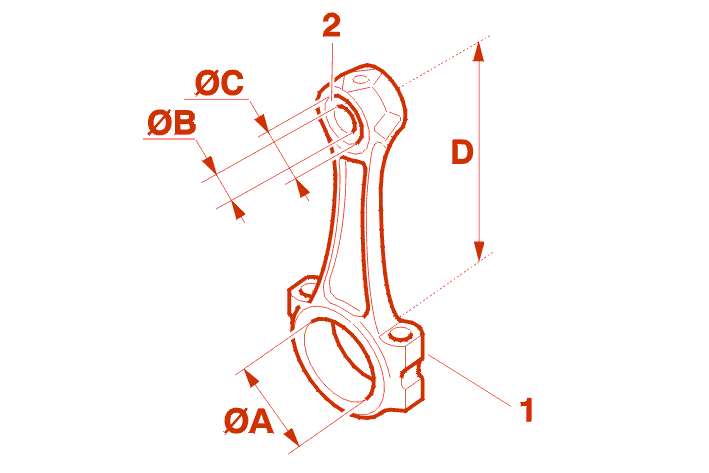

DATA CONNECTING RODS
| distance | nominal (mm) |
|---|---|
| ø A | 53,7 + 0,008 - 0,005 |
| ø B | 28 + 0,02 - 0,007 |
| ø C | 30,2 + 0,021 0 |
| D | 145 ± 0,025 |
(1) Connecting rod .
(2) Little end socket .
When assembling the little end socket with the connecting rod, align the socket lubrication hole with the little end socket lubrication hole .
