B1BB1YK1 - 406D9 DW10 ENGINE

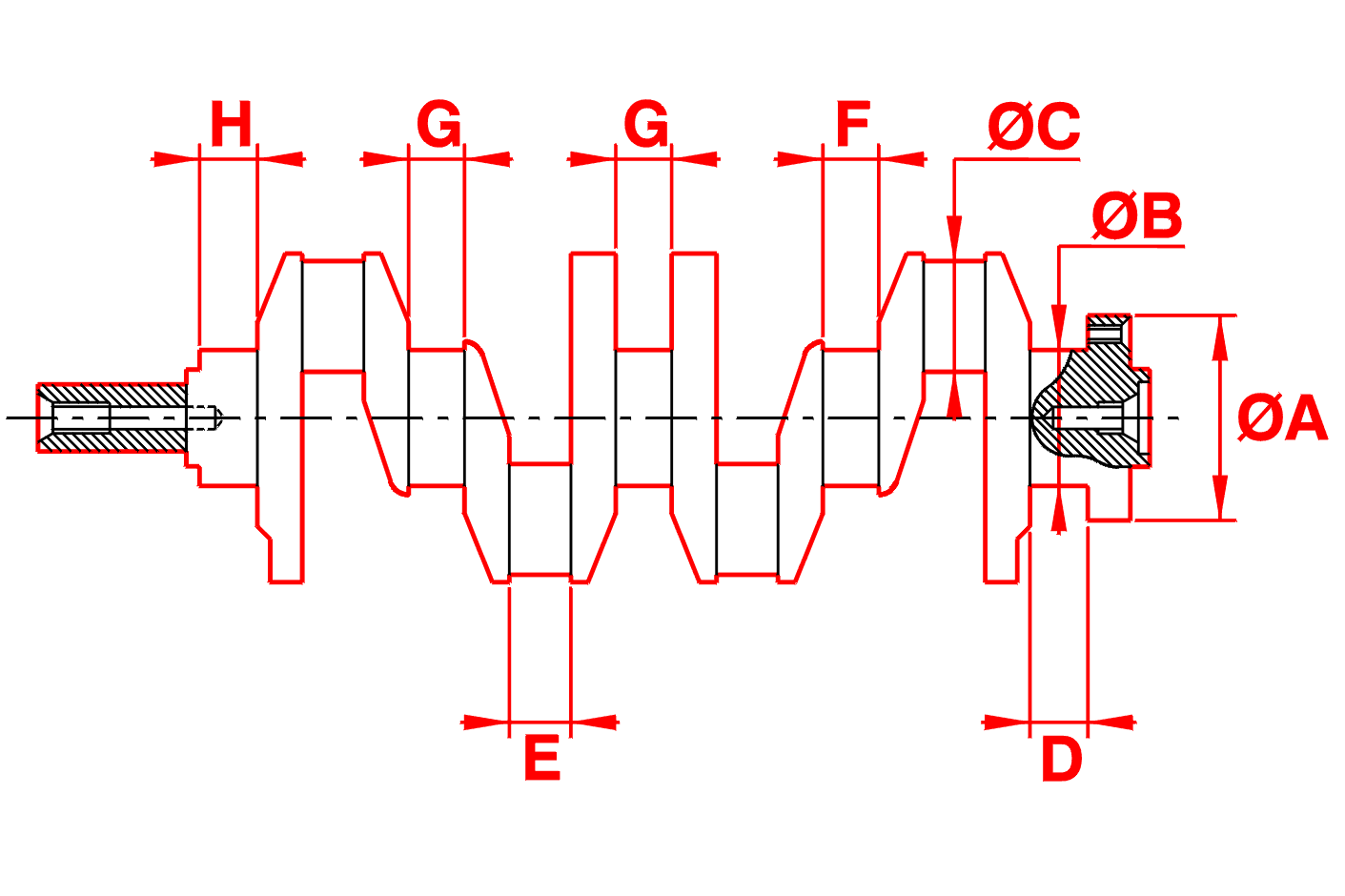

DATA CRANKSHAFT

DW10TD engine
distance (mm) nominal repair
ø A
0
- 0,087		 90 89,8
ø B
0
- 0,023		 60 59,7
ø C
0
- 0,02		 50 49,7
D
± 0,15		 26,55 26,55
E
± 0,2		 24,5 24,5
F
± 0,02		 26,2 26,5
G
+ 0,3
0		 26,1 26,1
H
± 0,35		 26,05 26,05

DW10ATED engine
distance (mm) nominal repair
ø A
0
- 0,087		 90 89,8
ø B
0
- 0,023		 60 59,7
ø C
0
- 0,02		 50 49,7
D
± 0,15		 27,55 27,55
E
± 0,2		 24,5 24,5
F
± 0,02		 26,63 26,93
G
+ 0,3
0		 27 27
H
± 0,35		 27,3 27,3

Grinding of the joint face to - 0,2 mm (fitting of standard seal) .

WARNING : when the grinding operation is carried out, the crankshaft must turn in the opposite direction to its usual direction of rotation in the engine, that is clockwise, seen from the flywheel end .

WARNING : grinding of the crankpins and journals must be followed by a smoothing operation .

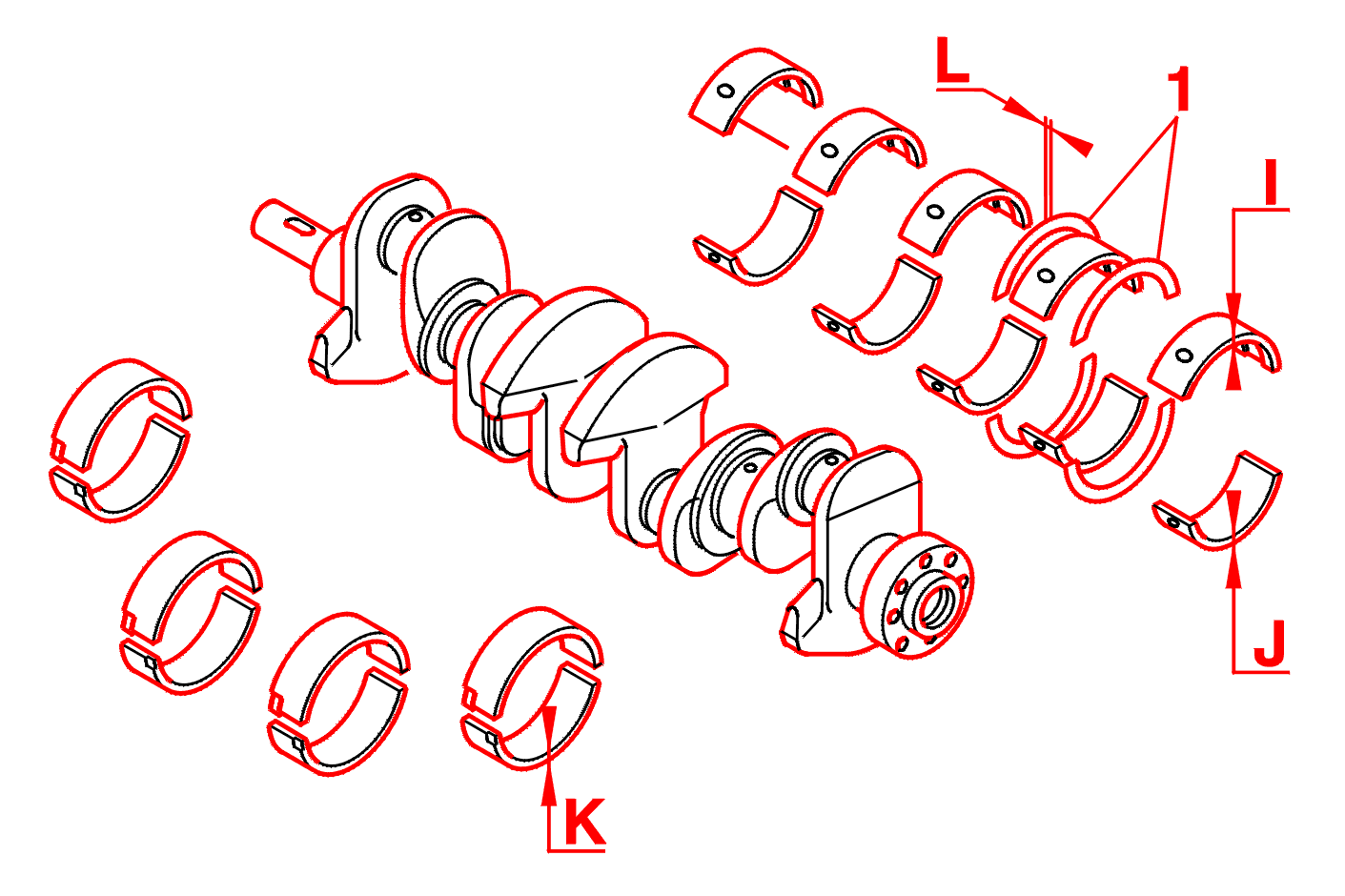

1 - HALF SHELLS

Crankshaft stop thrust washers .

The bearing upper half-shells are grooved and drilled .

distance (mm) nominal repair
I
± 0,003		 1,842 1,992
J
± 0,003		 1,842 1,992
K
± 0,005		 1,833 1,983

DW10 TD engine
distance (mm) nominal
L 1,83/1,88

DW10 ATED engine
distance (mm) nominal
L 2,28/2,33
