B1BBLQK1 - 406D9
MODIFICATION IDENTIFICATION PLATE MARKING
1 - REMINDER

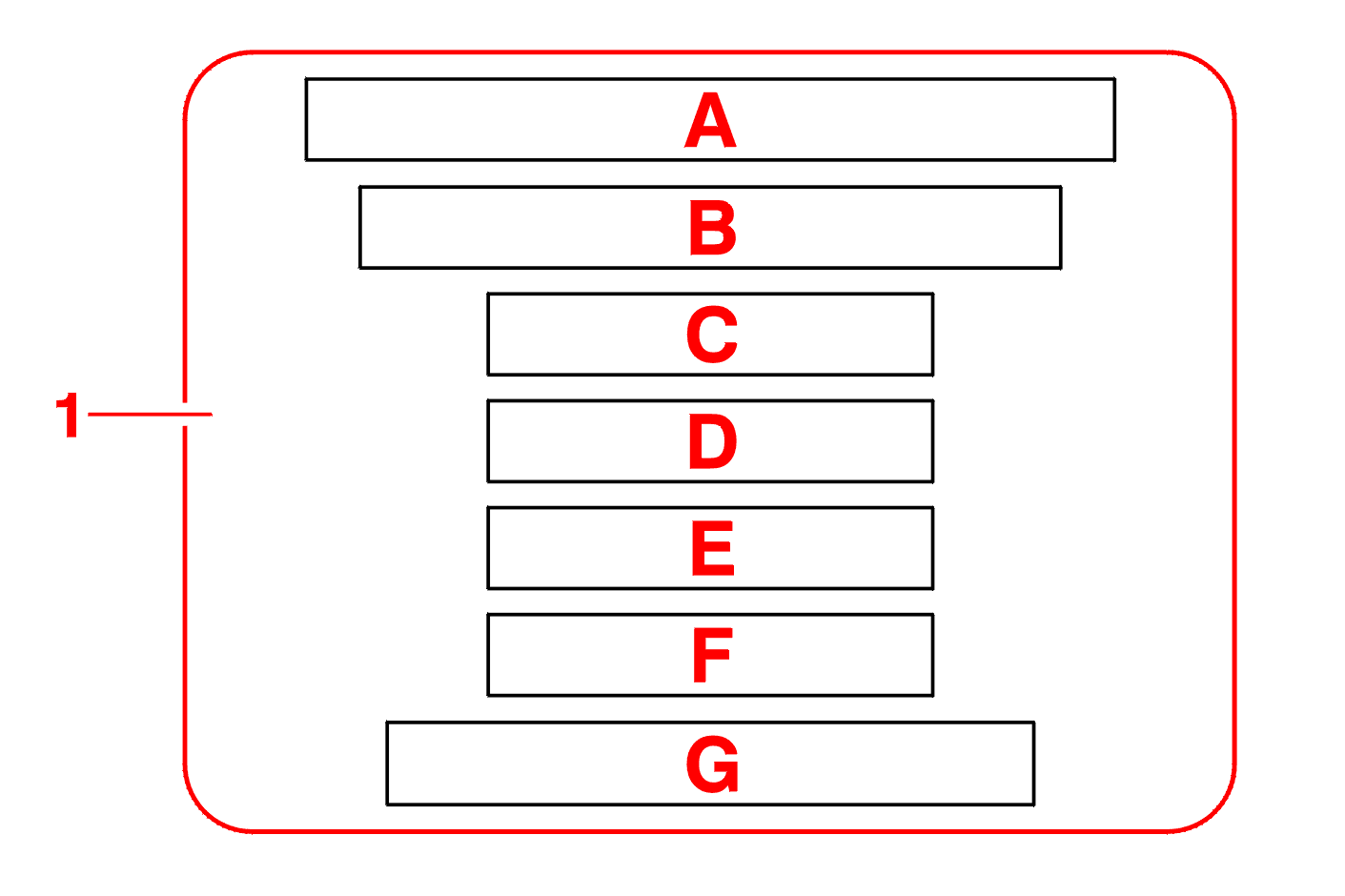

Since 1975, the identification plate (1) includes :
For vehicles intended for the following countries :

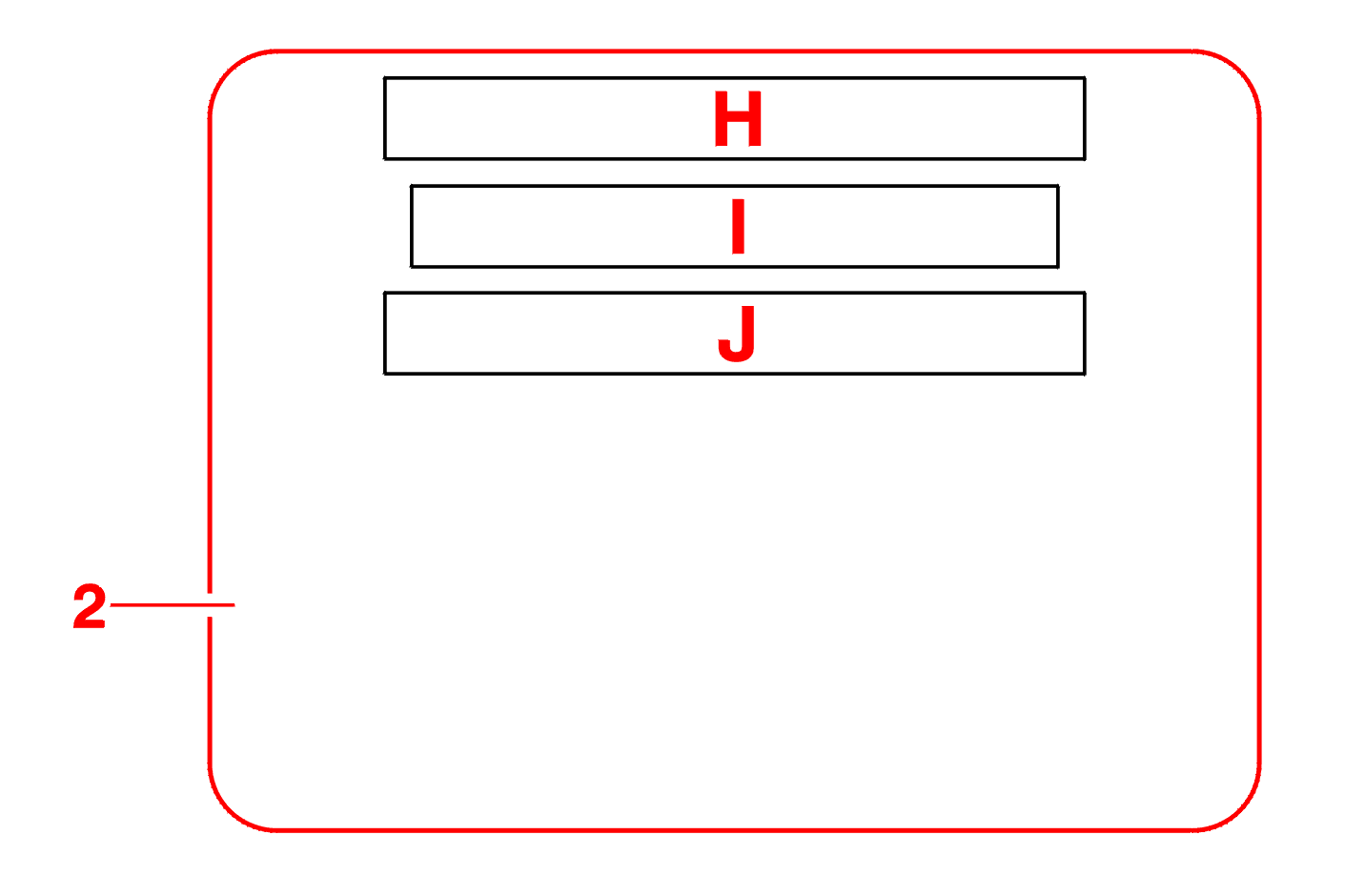

Besides the manufacturer plate, there is a homologation plate (2), known as the additional plate, which contains the following details :
NOTE : if there is enough room on the identification plate (1), the national homologation number is engraved at (G) and in this case, there will be no additional plate .
For other countries, inclusion of the national homologation number is not compulsory .
2 - CHANGES TO THE IDENTIFICATION PLATE

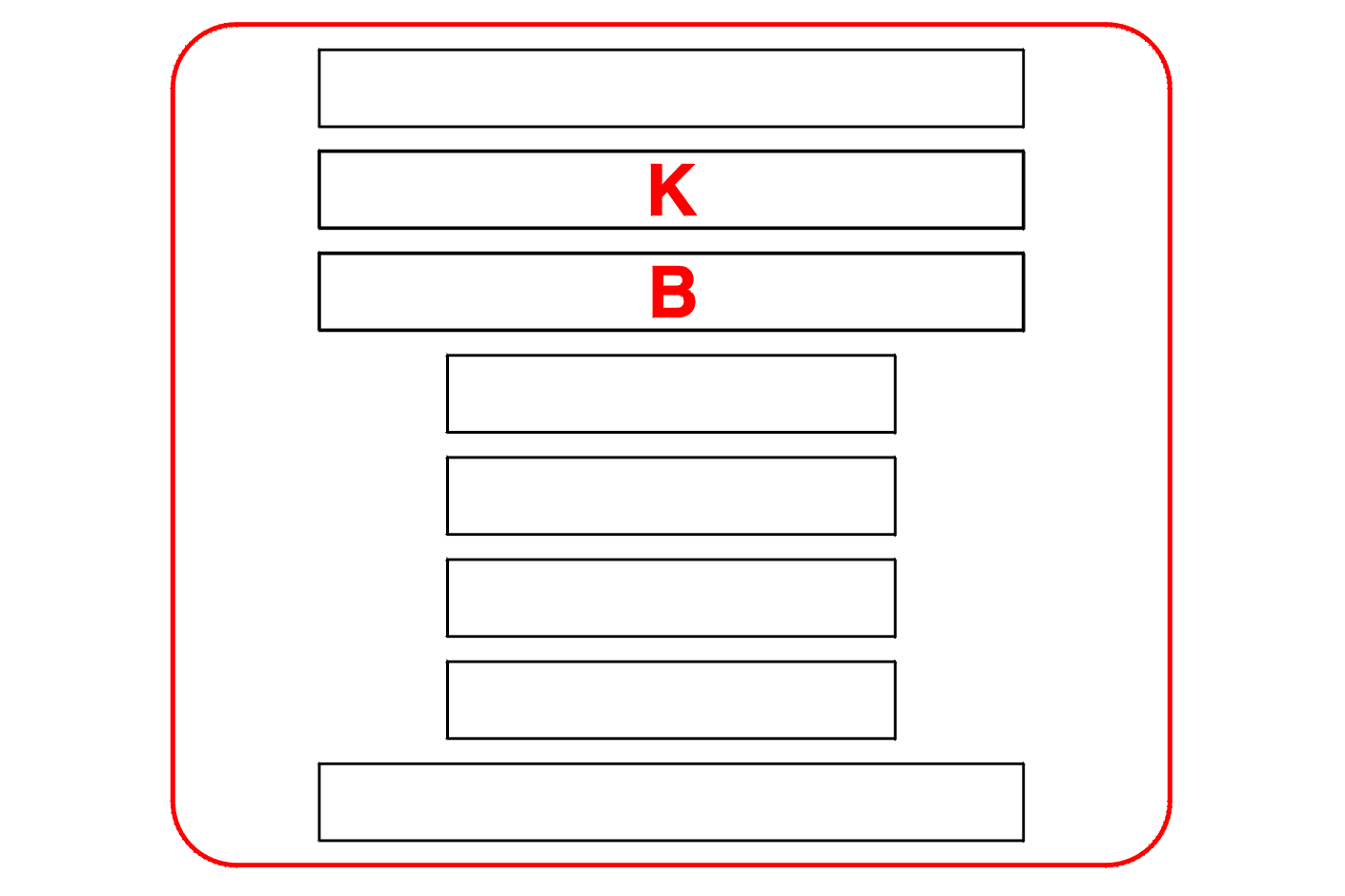

The changes made to the identification plate are as follows :
The European acceptance number certifies that the vehicle is homologated by European acceptance authorities .
This number allows a manufacturer to have its vehicle approved by a member state of the European Union and have it registered without restriction in all the countries belonging to the European Union .
2 - 1 - VEHICLES AFFECTED
- 406 From manufacturing number 693289 .
- All cars from 01/01/98 excluding vans, electric vehicles and LPG or NGV (Natural Gas Vehicles) .
NOTE : vans known as COMBI's will be subject to European acceptance .
2 - 2 - EUROPEAN ACCEPTANCE NUMBER (K)
Composition .
composition | |||||
---|---|---|---|---|---|
coding example |
e | 2 | 93/81 | 0024 | 00 |
description | Europe as considered by Brussels | FRANCE | number of the European Directive | number of the European file | acceptance number extension |
notes | vehicles manufactured in Europe | vehicles homologated by France | number of the European standard | vehicle data file | modifications made to the vehicle during its life |
National homologation number (Additional plate) .
In the context of european homologation, this number no longer exists. this national approval number (additional plate) remains for certain destinations not covered by european homologation .
NOTE : the European acceptance number is not shown if there is a national homologation number .

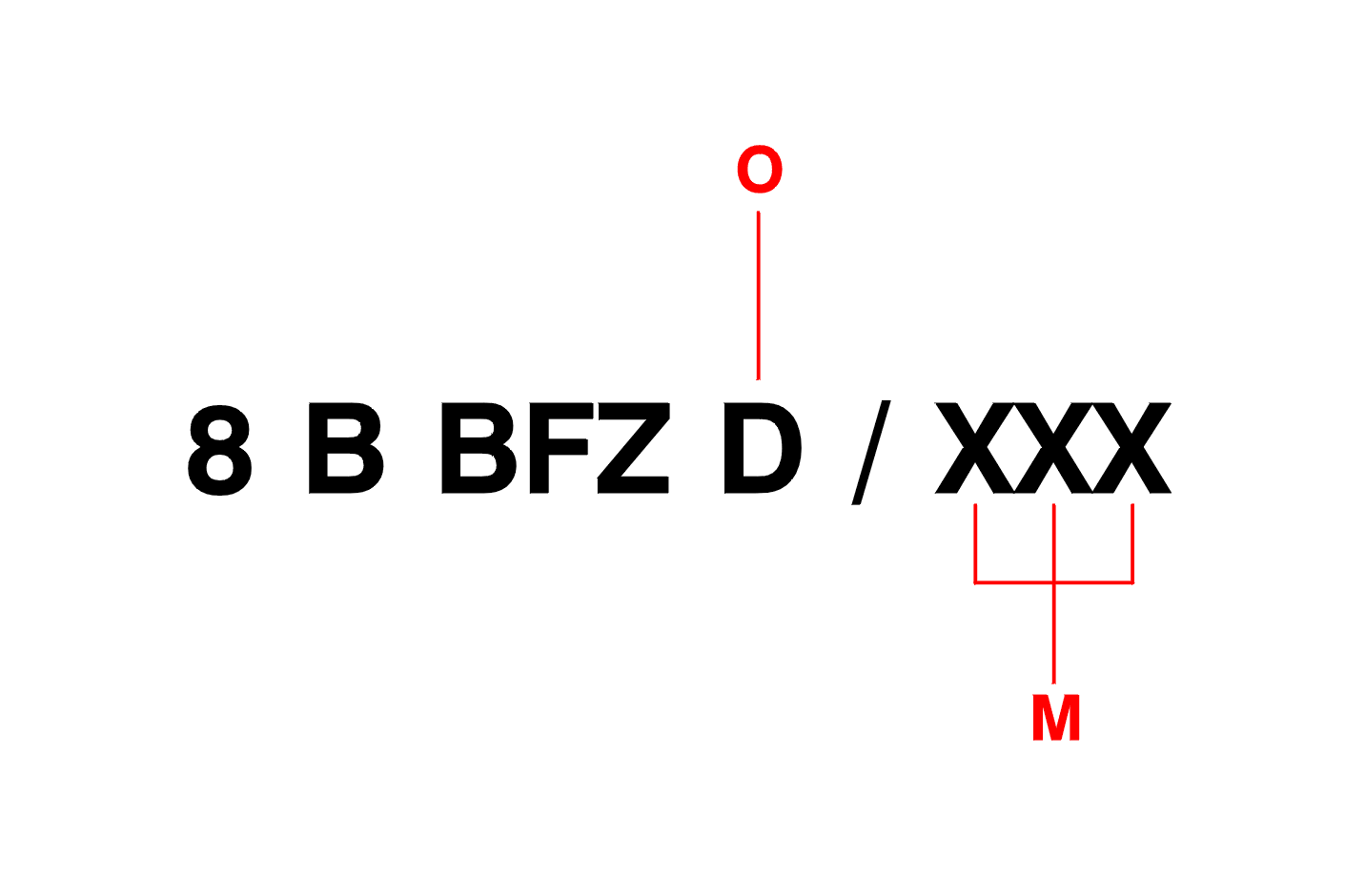

3 - VIN CHANGES
The VIN includes, among other information, the VDS (vehicle model code) .
For European legislation, the VDS or vehicle code becomes the TVV (Type Variant (M), Version (O)) .
3 - 1 - (O) VERSION
types of gearbox and levels of emission control | |||||
---|---|---|---|---|---|
gearbox | other cases emission control K |
emission control L | emission control L3 | emission control L4 | emission control US94W (Taiwan) |
without | 0 | Z | Z | Z | Z |
manual gearbox (4 gears) |
1 | A | B | C | - |
manual gearbox (5 gears) |
2 | D | E | F | 5 |
manual gearbox (6 gears) |
- | G | H | J | - |
automatic gearbox (3 gears) |
3 | K | L | M | - |
automatic gearbox (4 gears) |
4 | N | P | R | 6 |
final drive ratio and/or gearbox different from basic versions | 8 | S | T | U | 7 |
other possible combinations (specific administrative power) |
9 | V | W | X | - |
NOTE : the gearbox identification, for vans and vehicles meeting K emission control standards is not changed .
types of gearbox and levels of emission control | |||||
---|---|---|---|---|---|
gearbox | emission control K | emission control L | emission control L3 | emission control L4 | emission control US94W (Taiwan) |
without | - | - | - | - | - |
manual gearbox (4 gears) |
- | - | - | - | - |
manual gearbox (5 gears) |
- | - | 2 or A | B | - |
manual gearbox (6 gears) |
- | - | - | - | - |
automatic gearbox (3 gears) |
- | - | - | - | - |
automatic gearbox (4 gears) |
- | - | D | E | - |
final drive ratio and/or gearbox different from basic versions | 9 | - | - | - | - |
other possible combinations (manual gearbox : 5 gears - South America) |
- | - | - | - | - |
3 - 2 - VARIANT (M)
additional descriptions | |
---|---|
LPG dual-fuel (cylindrical tank) | GPL |
LPG dual-fuel (ring-shaped tank) | GL |
tax incentive | IF |
combispace (with MAX. REAR : 950 or 1000 kg) | A |
