B1BG14K1 - 406D9 ES9J4S ENGINE EMISSION CONTROL CEE 2000

REMOVAL - REFITTING STYLE COVER

1 - REMOVAL

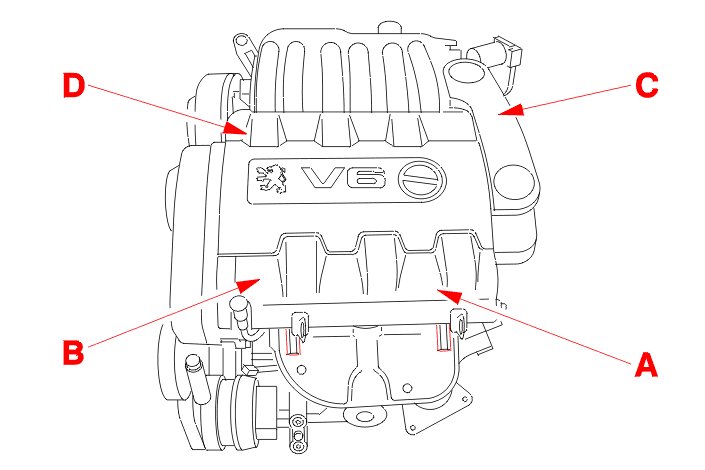

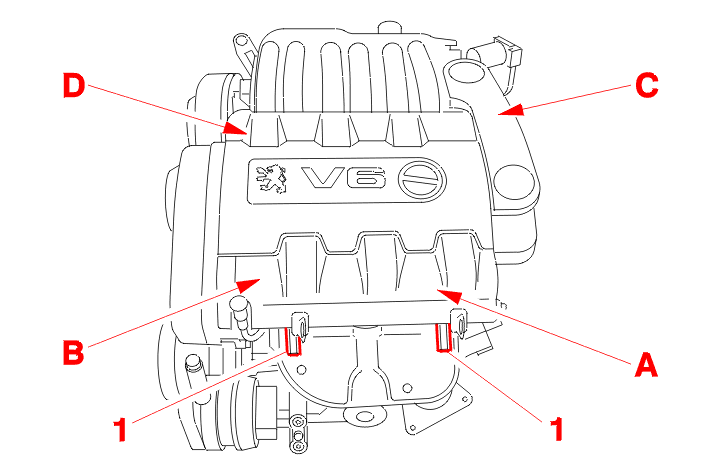

Unclip the style cover at the front at (A) and (B) using the lifting brackets (1) as support then unclip at the rear at (C) and (D) .

2 - REFITTING

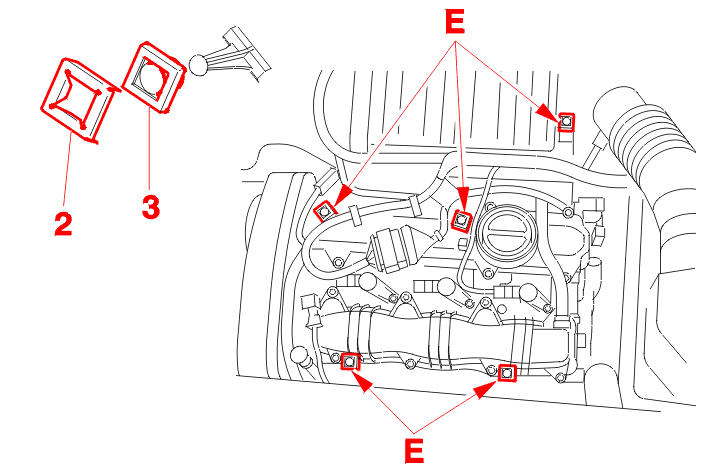

Check the presence of the 5 rubber clips (2) and their brackets (3) in the locations provided (E) .

Replace the style cover .

Press the style cover at (A) (B) (C) et (D) to clip it .
