B1CB1AK1 - 406D9 XU INJECTION
DATA - IDENTIFICATION CYLINDER BLOCK
XU5JP ENGINE XU7JB ENGINE XU7JP ENGINE XU7JP4 ENGINE

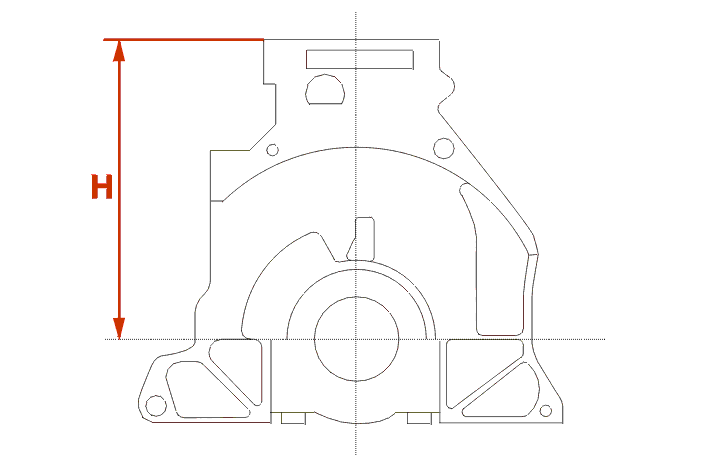

| distance (mm) | nominal | repair |
|---|---|---|
| H | 224.5 ± 0.05 | 222.5 ± 0.05 |
Following facing of the joint face, (cylinder head side), the blocks are marked with a blue circle + letter F stamped on the timing side .
XU10J4R ENGINE
| distance (mm) | nominal |
|---|---|
| ø A | ø 86 |
| H | 235 ± 0.05 |
| reference | without |
| distance (mm) | repair 1 | repair 2 | repair 3 |
|---|---|---|---|
| ø A | ø 86.25 | ø 86.60 | ø 86.80 |
| H | 234 ± 0.1 | 234 ± 0.1 | 234 ± 0.1 |
| reference | R1 | R2 | R3 |

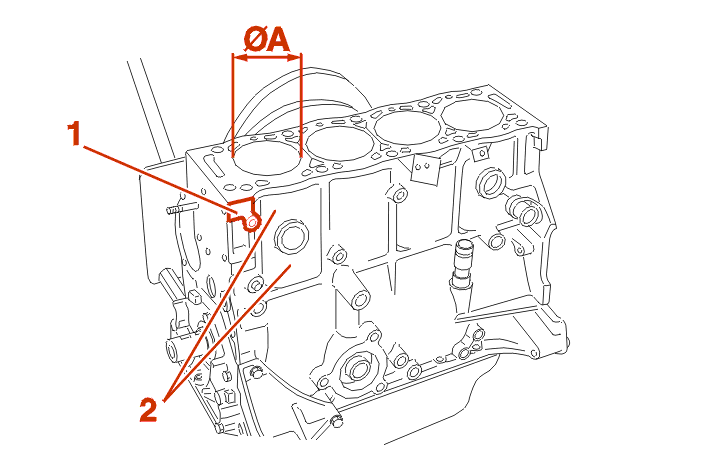

The repair dimension marks are stamped on the cylinder block at (1) or marked in ink at (2) .
WARNING : a special tool must be used to rebore the barrels to the repair dimension (3) .
