B1CB1BK1 - 406D9 XU7 INJECTION XU5 INJECTION
DATA - IDENTIFICATION LINERS

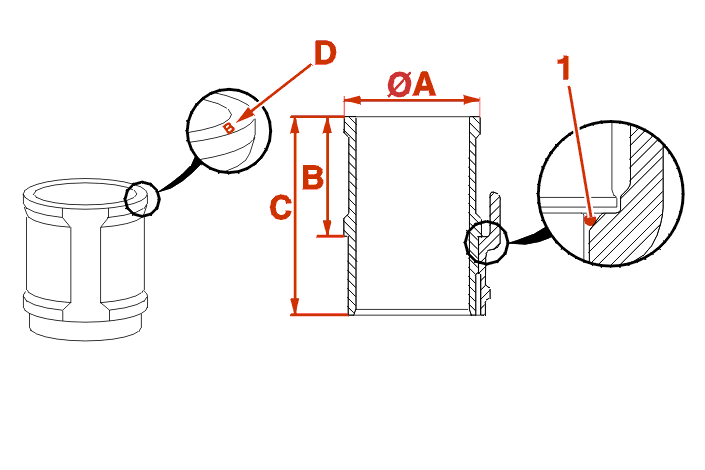

The sealing between the engine block and the liners is assured by a seal (1) .
There are 3 categories of liners differentiated at (D) .
distance | nominal (mm) |
---|---|
ø A category A | 83 + 0.010 + 0 |
ø A - category B | 83.01 + 0.010 + 0 |
ø A - category C | 83.02 + 0.010 + 0 |
B | 95.135 ± 0.015 |
C | 141 ± 0.5 |
