B1CB1SK1 - 406D9 ES9J4 ENGINE
DATA - IDENTIFICATION CRANKSHAFT
1 - CRANKSHAFT

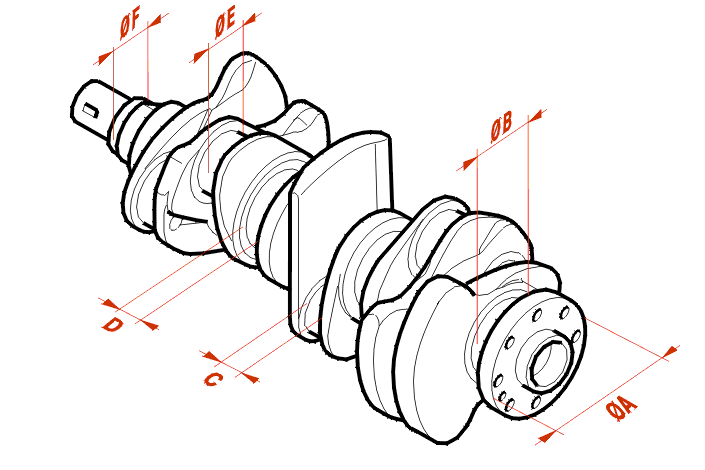

| dimensions (mm) | nominal | repair 1 |
|---|---|---|
| ø A | 98 0 - 0,087 |
97,8 0 - 0,087 |
| ø B | 66 + 0,019 0 |
- |
| C | 21,7 ± 0,1 | - |
| D | 23,36 ± 0,1 | - |
| ø E | 51,2 + 0,029 + 0,010 |
- |
| ø F | 42 + 0,025 0 |
41,8 + 0,025 0 |
WARNING : the special surface treatment does not permit grinding of the crank pins or main journals .

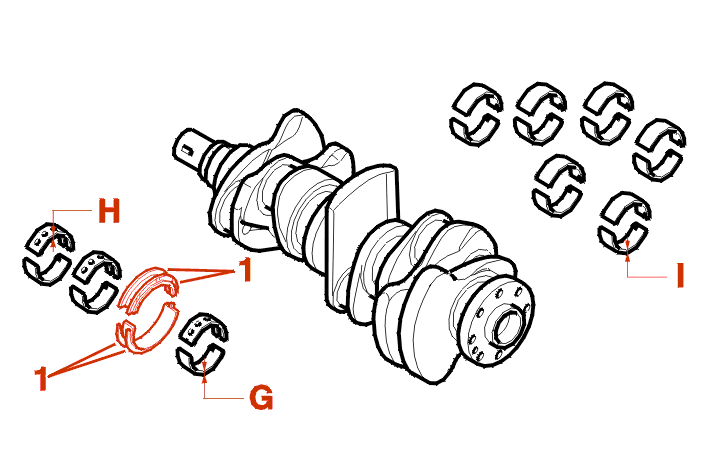

2 - HALF SHELLS
(1) End float adjustment stop thrust washer .
The bearing upper half-shells are grooved and drilled .
| nominal (lower bearing half-shell) |
nominal (upper bearing half-shell) |
nominal (connecting rod half shells) |
||||
|---|---|---|---|---|---|---|
| dimensions (mm) | category C1 (black) |
category C2 (blue) |
category C3 (yellow) |
category C4 (red) |
||
| G | 2,987 + 0,006 0 |
2,995 + 0.006 0 |
3,003 + 0.006 0 |
3,011 + 0.006 0 |
- | - |
| H | - | - | - | - | 2,999 + 0.006 0 |
- |
| I | - | - | - | - | - | 1,753 + 0.015 0 |
