B1CB22K1 - 406D9 XU INJECTION

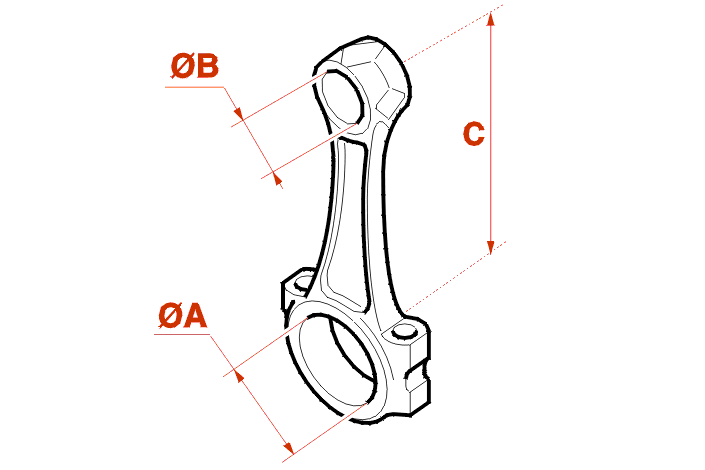

DATA - IDENTIFICATION CONNECTING RODS
XU5JP ENGINE XU7JP ENGINE XU7JP4 ENGINE
| legislation type | BFZ LFW L6A - LFY - LFZ L6B |
|---|---|
| distance (mm) | nominal |
| ø A | ø 48.655 + 0.016 + 0 |
| ø B | ø 22 - 0.041 - 0.029 |
| C | 150.5 |
NOTE : some XU5 engines may be fitted with drilled connecting rods for reasons of standardisation with the XU5JP engine ; in this case, the connecting rod half shells are not drilled .
XU10J4R ENGINE
| legislation type | RFV - R6E - RFS |
|---|---|
| distance (mm) | nominal |
| ø A | ø 53.695 + 0.013 + 0 |
| ø B | ø 22 - 0.041 - 0.029 |
| C | 158 |
Modification Lubrication system .
This modification has been applied progressively in accordance with two methods :
IMPERATIVE : do not fit new pistons with connecting rods which have not been drilled ; do not fit main bearing shells which have not been drilled with drilled connecting rods .
