B1CG02K1 - 406D9 ES9J4 ENGINE
MATCHING MAIN BEARING SHELLS
Markings on the cylinder block and crankshaft enable matching .
1 - IDENTIFICATION

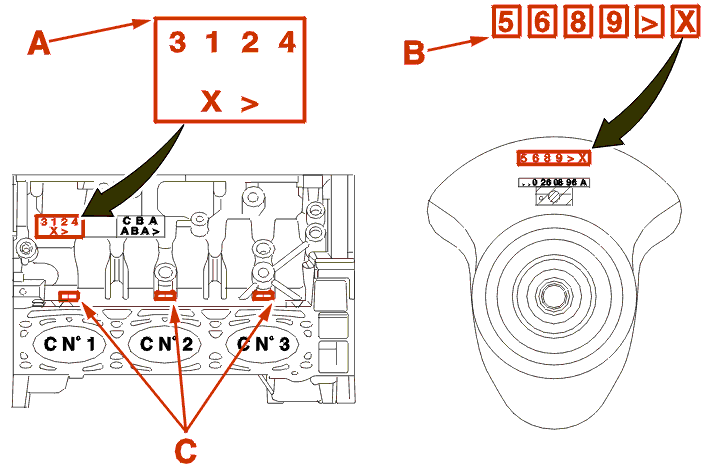

The categories of bearing shells are given on the engine block (A), flywheel side, and on the crankshaft (B), timing side, in the form of codes .
Zone(s) (A) - (B) :
Zone (C) :
2 - IDENTIFICATION : HALF SHELLS

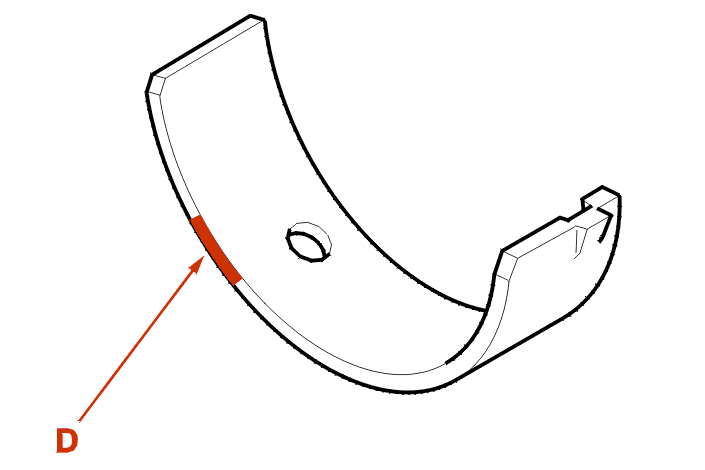

A paint mark at (D) identifies the grade .
3 - MATCHING TABLE
If the first number of the crankshaft is (5) and that of the cylinder block is (3) :
dimensions (mm) | nominal | nominal | nominal | nominal |
---|---|---|---|---|
half shells (reference) |
category C1 (black) |
category C2 (blue) |
category C3 (yellow) |
category C4 (red) |
G | 2,987 + 0,006 - 0 |
2,995 + 0,006 - 0 |
3,003 + 0,006 - 0 |
3,011 + 0,006 - 0 |
