B1CJ0FK1 - 406D9 XU INJECTION

REASSEMBLY - ASSEMBLY ENGINES

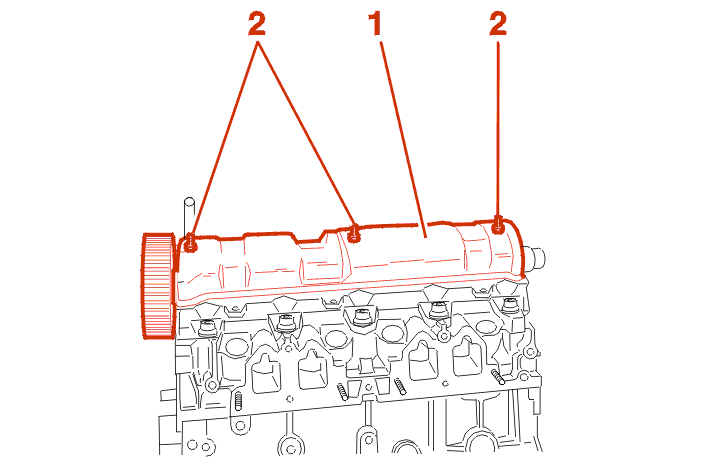

Fit the cylinder head cover (1) .

Tighten the bolts (2) to 1 daN.m .

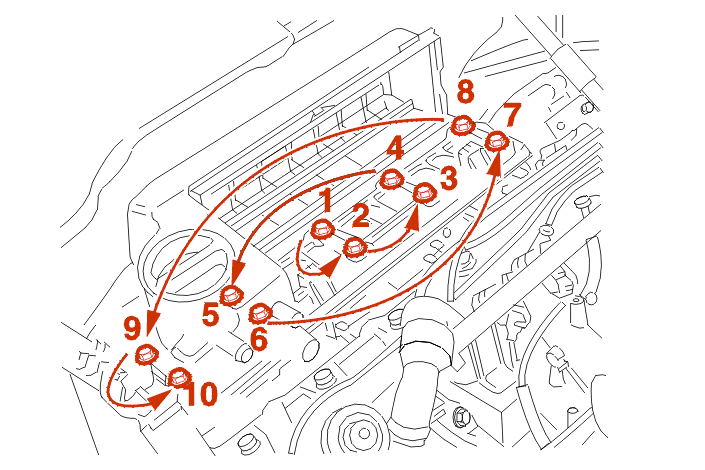

Engines with cylinder head cover secured by 10 bolts .

Tighten the 10 bolts to 1 da.Nm. in the order shown .

XU7JP4 ENGINE XU10J4R ENGINE

NOTE : the cylinder head covers have composite gaskets which can be used several times ; if the gasket is damaged, it can be partially repaired with AUTO JOINT OR jointing paste .

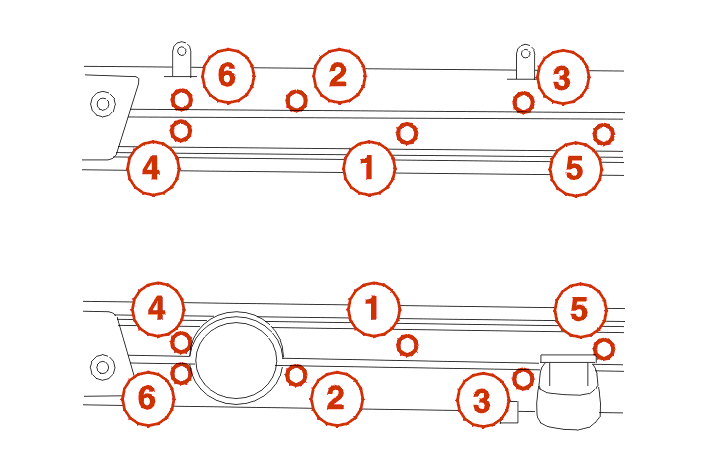

Tighten the bolts to 1 da.Nm. in the order indicated :

• from (1) to (6)

Fit (Depending on engine type) :

• the compact coil unit

Connect the pipes, cables and harnesses connected to the cylinder head .

ALL MODELS

Replace the inlet manifolds fitted with new seals .

Tighten the bolts to 2 daN.m .

Fit :

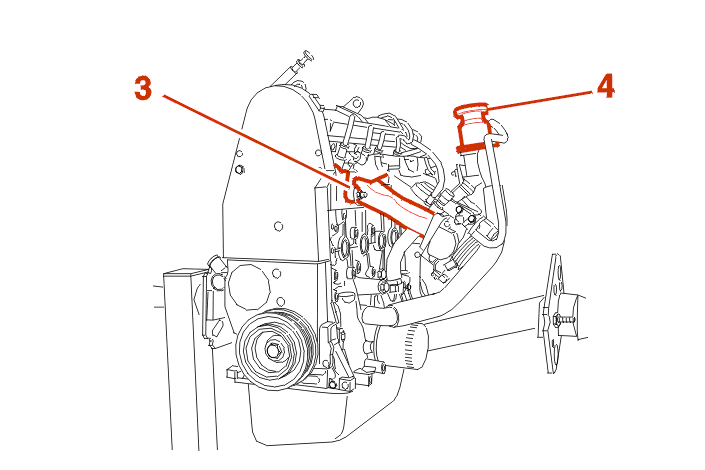

• the breather (4) with its tubes

Fit :

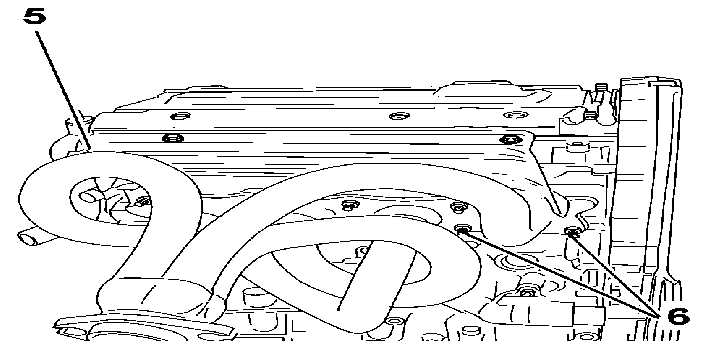

• the exhaust manifold (5) and its new gasket

Tighten the bolts (6) to 3.5 daN.m .

Refit the various components in the reverse order to removal .
