B1DB01K1 - 406D9 ES9J4S ENGINE EMISSION CONTROL CEE 2000
DATA - IDENTIFICATION TIGHTENING TORQUE(S) (ES9J4S)
1 - IDENTIFICATION
1 - 1 - CYLINDER HEAD
No mark .
1 - 2 - CYLINDER HEAD GASKETS
(1A) : Engine identification .
(1B) : Nominal dimension .
(1C) : Repair size .
| cylinder head identification | |
|---|---|
| engine code | XFX |
| engine type | ES9J4S |
| special features | - |
| engine identification (group 1A) | G - H |
| reference : nominal dimension (group 1B) | without |
| reference : repair size (group 1C) | E [1st repair dimension] (R1) E - F [2nd repair dimension] (R2) |
1 - 3 - CYLINDER HEAD BOLT
X = Length under head of bolt .
2 - DATA

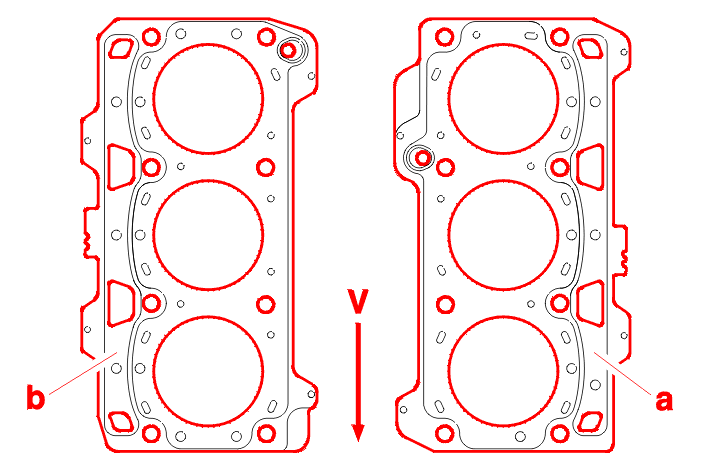

The right- and left-hand cylinder head gaskets are specific: they are the metal, multiple-leaf type .
- (a) : Right-hand cylinder head gasket .
- (b) : Left-hand cylinder head gasket .
- V : Steering wheel side .
Thickness of cylinder head gaskets :
| cylinder head identification | |
|---|---|
| engine code | XFX |
| engine type | ES9J4S |
| special features | - |
| type of cylinder head gasket | laminated metal gasket |
| theoretical thickness (mm) | 0.75 |
| repair dimensions (mm) | 0.95 [1st repair dimension] (R1) 1.15 [2nd repair dimension] (R2) |
| bolt length (mm) X nominal | 147.5 ± 0.5 |
| bolt length (mm) X max. | 149.5 |
| maximum cylinder head bow (mm) | 0.05 |
3 - TIGHTENING TORQUE(S)
| engine code | XFX |
|---|---|
| engine type | ES9J4S |
| special features | |
| pre-tightening (a) ( da.Nm) | 2 |
| slackening (a) | complete |
| tightening (a) (da.Nm) | 1.5 |
| 1st angular tightening (a) (°) | 225 |
