B1DB24K1 - 406D9 XU INJECTION
DATA - IDENTIFICATION VALVE GUIDES

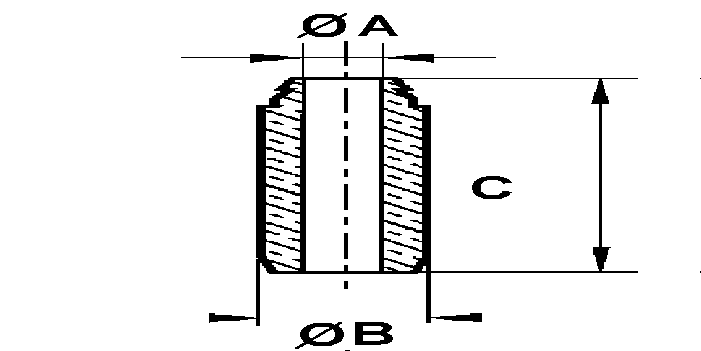

1 - VALVE GUIDES
XU7JP ENGINE XU5JP ENGINE
| inlet | |||
|---|---|---|---|
| legislation type | BFZ LFW - LFZ - L6A L6B |
BFZ LFW - LFZ - L6A L6B |
BFZ LFW - LFZ - L6A L6B |
| distance (mm) | nominal | repair 1 | repair 2 |
| ø A | ø 8 + 0.022 + 0 |
- | - |
| ø B | ø 13 + 0.068 + 0.050 |
ø 13.29 + 0 - 0.011 |
ø 13.59 + 0 - 0.011 |
| C | 38.8 ± 0.25 | - | - |
| exhaust | |||
|---|---|---|---|
| legislation type | BFZ LFW - LFZ - L6A L6B |
BFZ LFW - LFZ - L6A L6B |
BFZ LFW - LFZ - L6A L6B |
| distance (mm) | nominal | repair 1 | repair 2 |
| ø A | ø 8 + 0.022 + 0 |
- | - |
| ø B | ø 13 + 0.068 + 0.050 |
ø 13.29 + 0 - 0.011 |
ø 13.59 + 0 - 0.011 |
| C | 44.95 ± 0.25 | - | - |
XU10J4R ENGINE
| inlet | |||
|---|---|---|---|
| legislation type | RGX R6D RFX - RFV |
RGX R6D RFX - RFV |
RGX R6D RFX - RFV |
| distance (mm) | nominal | repair 1 | repair 2 |
| ø A | ø 8 + 0.022 + 0 |
- | - |
| ø B | ø 13 + 0.068 + 0.050 |
ø 13.275 + 0.068 + 0.050 |
ø 13.525 + 0.068 - 0.050 |
| C | 43.6 ± 0.1 | - | - |
| exhaust | |||
|---|---|---|---|
| legislation type | RGX R6D RFX - RFV |
RGX R6D RFX - RFV |
RGX R6D RFX - RFV |
| distance (mm) | nominal | repair 1 | repair 2 |
| ø A | ø 8 + 0.022 + 0 |
- | - |
| ø B | ø 13 + 0.068 + 0.050 |
ø 13.275 + 0.068 + 0.050 |
ø 13.525 + 0.068 - 0.050 |
| C | 50.6 ± 0.1 | - | - |
XU10J4R ENGINE XU10J4R ENGINE
| inlet - exhaust | |||
|---|---|---|---|
| legislation type | RFT RFY RFV - R6C R6E - LFY |
RFT RFY RFV R6E - LFY |
RFT RFY RFV R6E - LFY |
| distance (mm) | nominal | repair 1 | repair 2 |
| ø A | ø 7 + 0.015 + 0 |
- | - |
| ø B | ø 12.034 + 0.039 + 0.028 |
ø 12.29 + 0 - 0.011 |
ø 12.59 + 0 - 0.011 |
| C | 40 ± 0.025 | - | - |

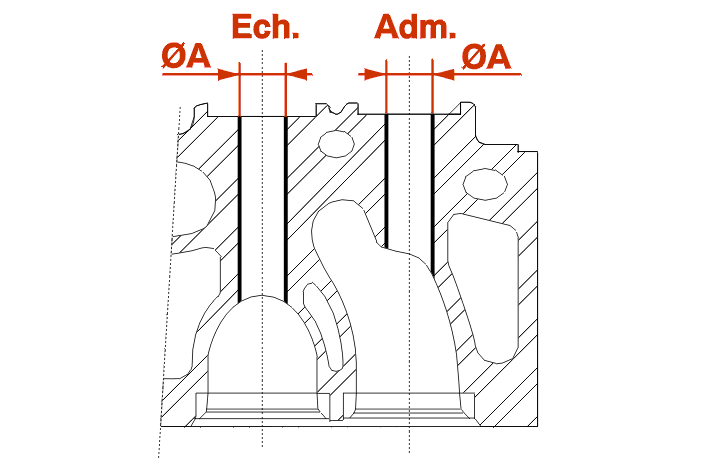

2 - MACHINING IN CYLINDER HEAD
Ech = .
XU7JP ENGINE XU5JP ENGINE
| inlet - exhaust | |||
|---|---|---|---|
| legislation type | BFZ LFW - LFZ - L6A L6B |
BFZ LFW - LFZ - L6A L6B |
BFZ LFW - LFW - L6A L6B |
| distance (mm) | nominal | repair 1 | repair 2 |
| ø A | ø 13 - 0.03 - 0.003 |
ø 13.195 + 0.032 + 0 |
ø 13.495 + 0.032 + 0 |
XU10J4R ENGINE
| inlet - exhaust | |||
|---|---|---|---|
| legislation type | RGX R6D RFX - RFV |
RGX R6D RFX - RFV |
RGX R6D RFX - RFV |
| distance (mm) | nominal | repair 1 | repair 2 |
| ø A | ø 13 - 0.03 - 0.003 |
ø 13.245 + 0 - 0.003 |
ø 13.494 + 0 - 0.03 |
XU10J4R ENGINE XU10J4R ENGINE
| inlet - exhaust | |||
|---|---|---|---|
| legislation type | RFT RFY RFV R6E - LFY |
RFT RFY RFV R6E - LFY |
RFT RFY RFV R6E - LFY |
| distance (mm) | nominal | repair 1 | repair 2 |
| ø A | ø 12 + 0.027 + 0 |
ø 12.215 + 0.027 + 0 |
ø 12.515 + 0.027 + 0 |

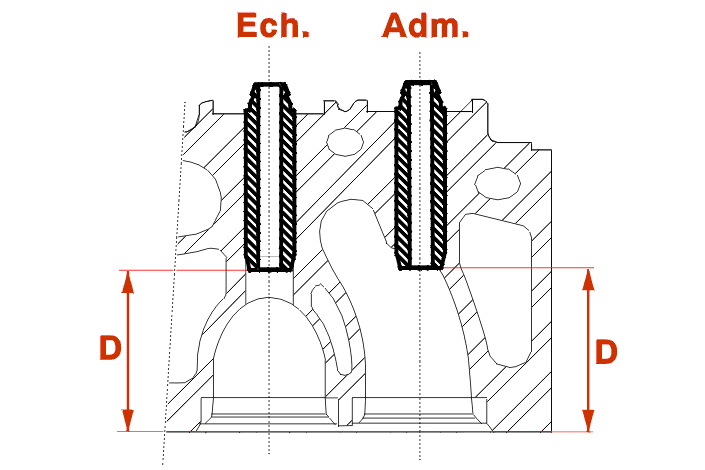

3 - FITTED VALVE GUIDES
Ech = Exhaust .
Adm = Inlet .
XU7JP ENGINE XU5JP ENGINE
| legislation type | BFZ LFW - LFZ - L6A L6B |
BFZ LFW - LFZ - L6A L6B |
|---|---|---|
| distance (mm) | exhaust | inlet |
| D | 38.4 ± 0.35 | 44 ± 0.35 |
XU10J4R ENGINE
| legislation type | RGX RGY - R6D RFX - RFV |
RGX RGY - R6D RFX - RFV |
|---|---|---|
| distance (mm) | exhaust | inlet |
| D | 33 ± 0.35 | 40 ± 0.35 |
EW7J4 ENGINE XU10J4R ENGINE XU10J4R ENGINE
| inlet - exhaust | |||
|---|---|---|---|
| legislation type | RFS | RFS | RFS |
| distance (mm) | nominal | repair 1 | repair 2 |
| ø A | ø 6 + 0.012 + 0 |
- | - |
| ø B | ø 12.034 + 0.039 + 0.028 |
ø 12.334 + 0.039 + 0.028 |
- |
| C | 40.8 ± 0.25 | - | - |
