B1DB2EK1 - 406D9 XU INJECTION
DATA - IDENTIFICATION CYLINDER HEAD BOLT

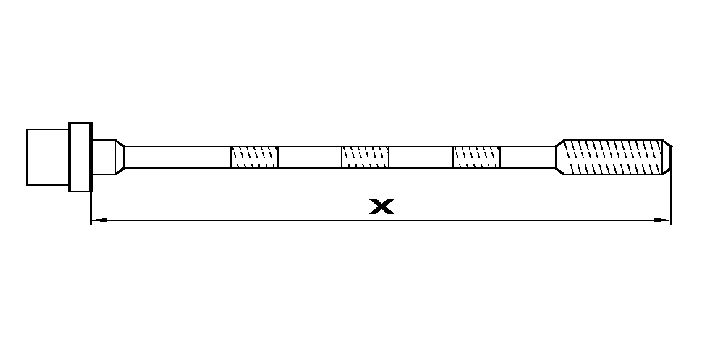

Bolt(s) with guiding end piece .

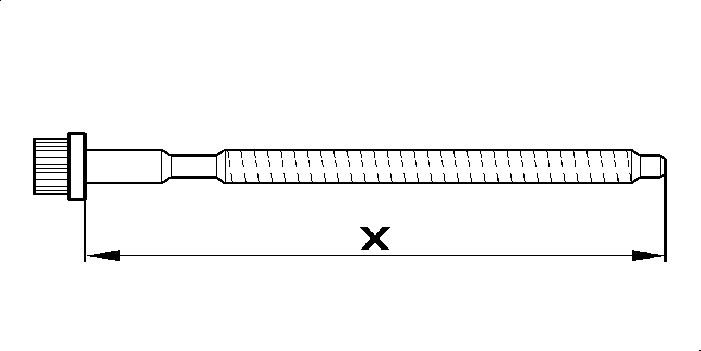

Bolt(s) without a guiding end piece .
Bolt(s) fitted without a washer .
WARNING : the bolts can only be reused if their length (X) is less than the reuse length (X) .
XU5JP ENGINE XU7JP ENGINE
| legislation type | BFZ LFW L6B - LFZ - L6A |
BFZ LFW L6B - LFZ - L6A |
|---|---|---|
| identification | nominal length (X) | reuse length (X) |
| bolt(s) without a guiding end piece | 168 ± 0.5 | scrap |
| bolt(s) without a guiding end piece | 175 ± 0.5 | 176.5 |
| bolt(s) without washer | 168.5 ± 0.5 | 171.8 |
XU7JP4 ENGINE
| legislation type | LFY | LFY |
|---|---|---|
| identification | nominal length (X) | reuse length (X) |
| bolt(s) without a guiding end piece | 159 ± 0.5 | 160 |
XU10J4R ENGINE
| legislation type | R6E - RFT - RFV RFY RFS |
R6E - RFT - RFV RFY RFS |
|---|---|---|
| identification | nominal length (X) | reuse length (X) |
| bolt(s) without a guiding end piece | 110 ± 0.5 | 112 |
