B1DB2FK1 - 406D9 XU INJECTION

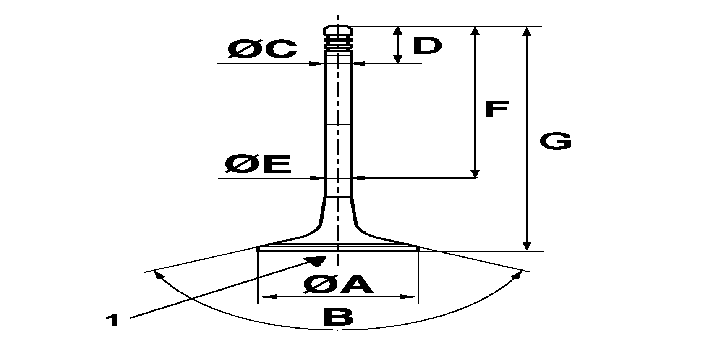

DATA - IDENTIFICATION VALVES
XU5JP ENGINE XU7JP ENGINE
| legislation type | BFZ LFW - LFZ L6A - L6B |
BFZ LFW - LFZ L6A - L6B |
|---|---|---|
| distance | inlet | exhaust |
| ø A | ø 41.6 ± 0.2 | ø 34.5 ± 0.2 |
| B | 91° | 91° |
| ø C | ø 7.981 ± 0.007 | ø 7.98 + 0 - 0.015 |
| D | 15 ± 1.5 | 15.5 ± 1.5 |
| ø E | ø 7.973 ± 0.007 | ø 7.97 + 0 - 0.015 |
| F | 78 ± 1.5 | 77 + 1 - 0 |
| G | 108.99 + 0 - 0.4 |
108.20 + 0.34 + 0 |
(1) Valve marking : (G) .
XU7JP4 ENGINE XU10J4R ENGINE
| legislation type | LFY - RFV - R6E | LFY - RFV - R6E |
|---|---|---|
| distance | inlet | exhaust |
| ø A | ø 34.7 + 0 - 0.2 |
ø 29.7 + 0 - 0.2 |
| B | 91° | 91° |
| ø C | ø 6.988 + 0 - 0.015 |
ø 6.98 + 0 - 0.015 |
| D | 15.5 | 16.5 |
| ø E | ø 6.98 + 0 - 0.015 |
ø 6.96 + 0 - 0.015 |
| F | 74.5 | 75.5 |
| G | 104.38 + 0.4 + 0 |
102.9 + 0.4 + 0 |
(1) Valve marking : (R) .
