B1DB2VK1 - 406D9 ES9J4 ENGINE
DATA - IDENTIFICATION VALVE GUIDES

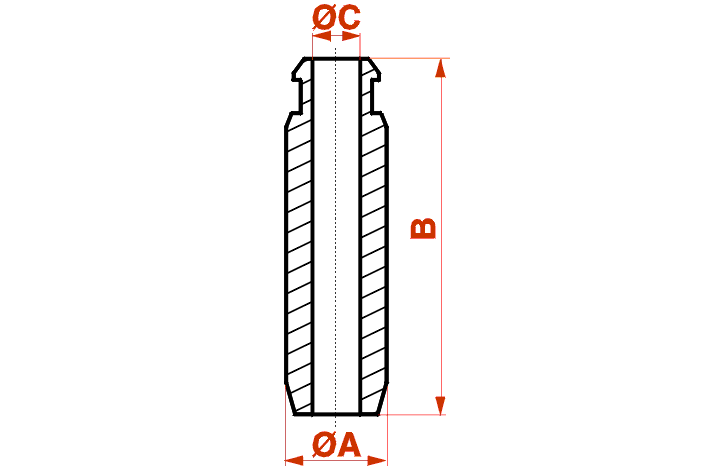

1 - VALVE GUIDES
| Adm - Ech = inlet - exhaust | ||
|---|---|---|
| dimensions (mm) | nominal | repair 1 |
| ø A | 11,034 + 0,039 + 0,028 |
11,334 + 0,039 + 0,028 |
| B | 40 ± 0,25 | 40 ± 0,25 |
| ø C | 5,6 + 0.075 0 |
5,6 + 0,075 0 |

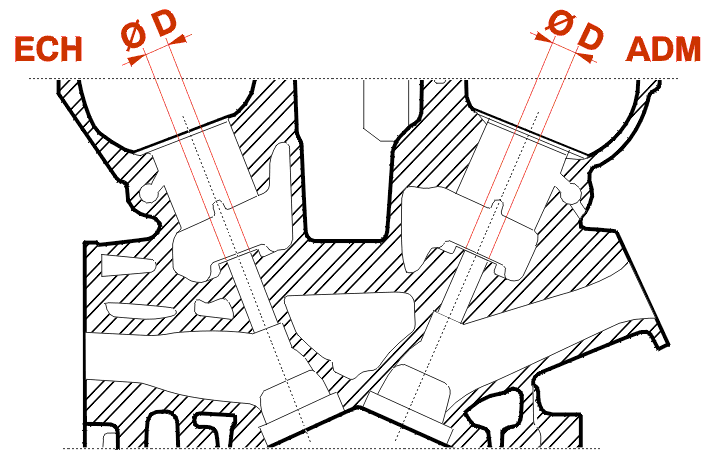

2 - MACHINING IN CYLINDER HEAD
| Adm - Ech = inlet - exhaust | ||
|---|---|---|
| dimensions (mm) | nominal | repair 1 |
| ø D | 11 + 0,027 0 |
11,3 + 0,027 0 |

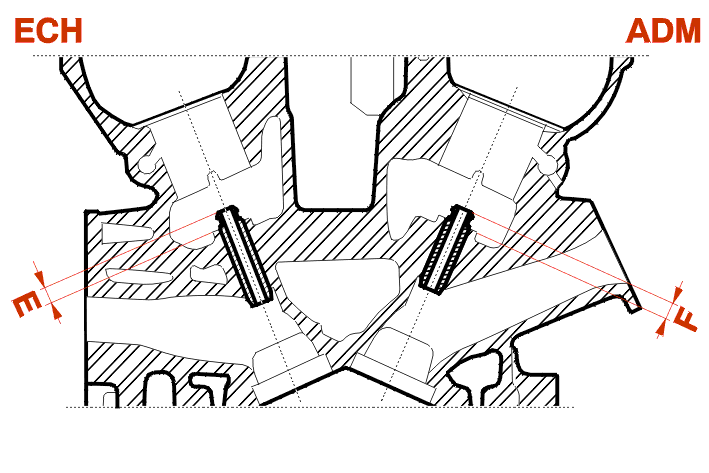

3 - FITTED VALVE GUIDES
| Adm - Ech = inlet - exhaust | ||
|---|---|---|
| dimensions (mm) | nominal | repair 1 |
| E | 7,1 ± 0,25 | |
| F | 7,04 ± 0,25 | |
