B1DB2WK1 - 406D9 ES9J4 ENGINE

DATA - IDENTIFICATION CYLINDER HEAD GASKET

1 - IDENTIFICATION

(A) Marking tab .

2 - DATA

Nominal dimension gasket :

• gasket thickness (nominal dimension = 1.45 mm)

1st fitting .

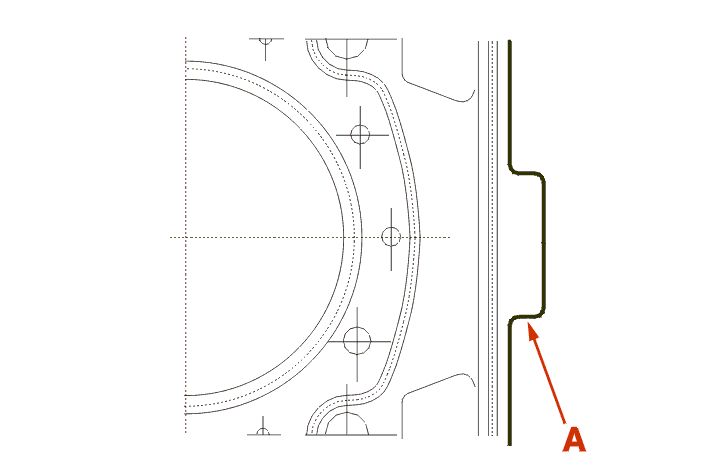

The tab (A) does not have a mark .

The 1st assembly is replaced by the 2nd assembly .

2nd fitting .

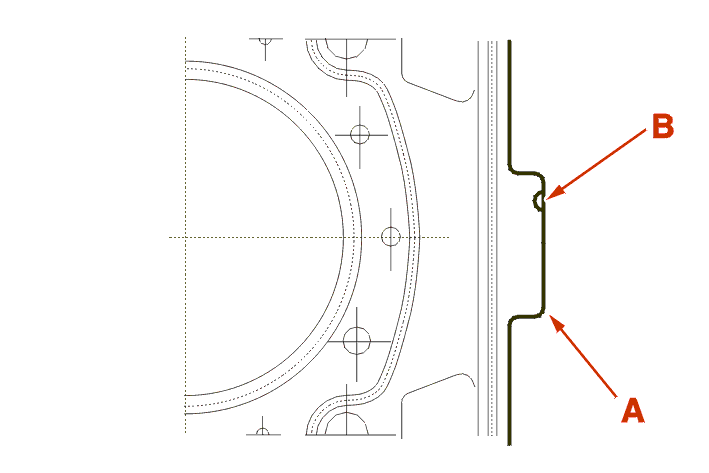

The tab (A) has a notch (B) .

Repair dimension gasket :

• gasket thickness (repair size = 1.65 mm)

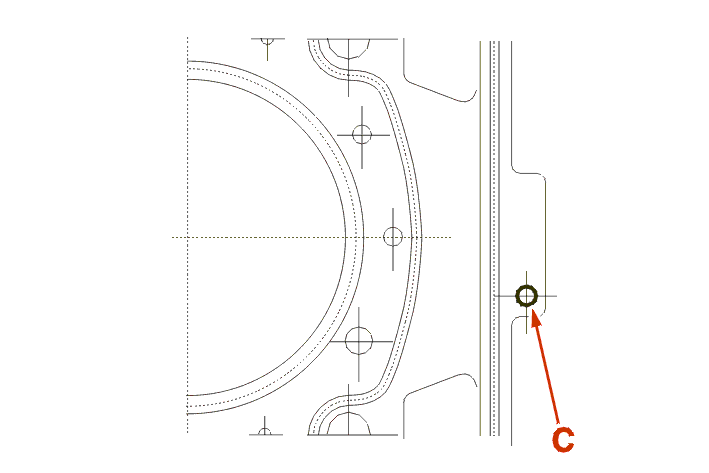

(C) Hole present on the gaskets, repair side .
