B1DB3EK1 - 406D9 DW10 ENGINE

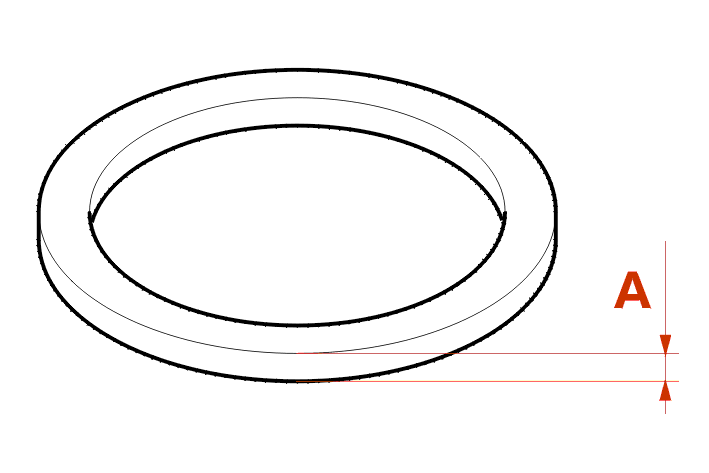

DATA THRUST WASHER - VALVE SPRING

	A
tolerance	nominal	repair
± 0,07	0,8	1,2

IMPERATIVE : on grinding the cylinder head joint face : the valve spring thrust washers are replaced with repair dimension washers .
