B1EB0EK1 - 406D9 ES9J4 ENGINE
DATA - IDENTIFICATION CAMSHAFTS
1 - IDENTIFICATION

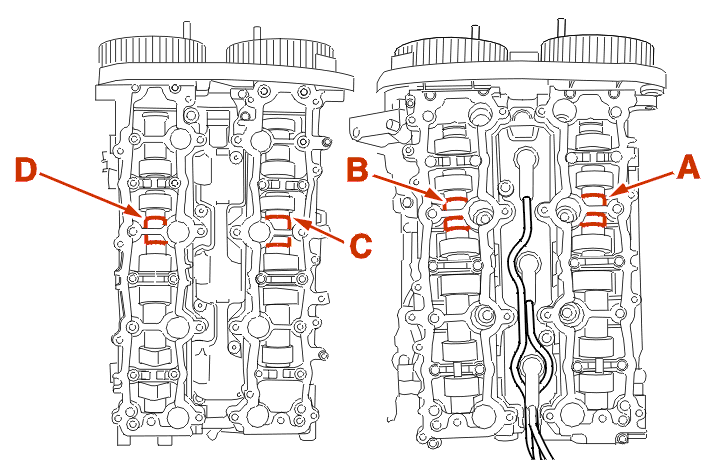

It is possible to identify the camshafts by means of the marking (Zone(s) (A) - (B) - (C) - (D)) .
1st fitting :
| zone(s) | camshafts | reference |
|---|---|---|
| A | right-hand exhaust | E719 |
| B | right-hand inlet | A717 |
| C | left-hand inlet | A718 |
| D | left-hand exhaust | E720 |
2nd fitting :

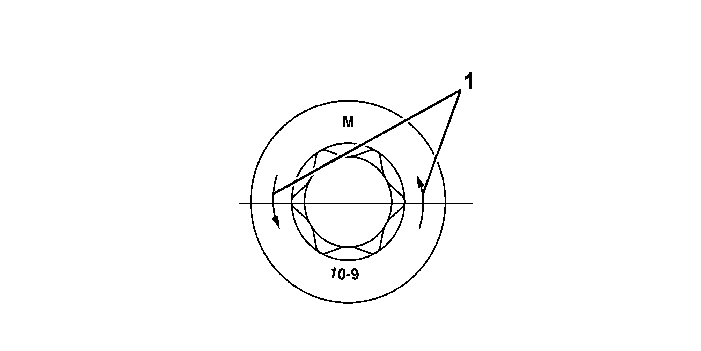

These bolts can be identified by the 2 arrows (1) stamped on the head .
| zone(s) | camshafts | reference |
|---|---|---|
| A | right-hand exhaust | E280 |
| B | right-hand inlet | A278 |
| C | left-hand inlet | A279 |
| D | left-hand exhaust | E281 |
WARNING : the 2 assemblies are not interchangeable .
2 - DATA

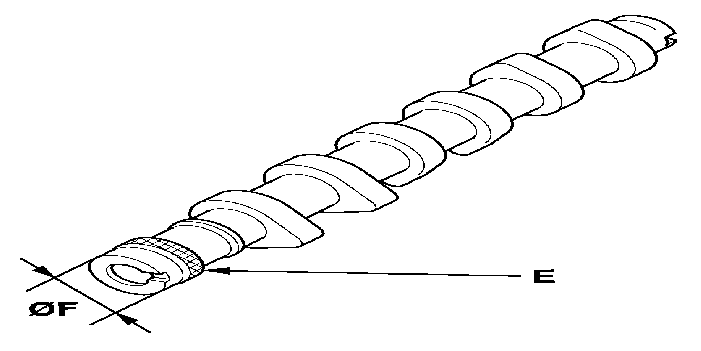

(E) : Camshaft seal bearings .
| dimensions (mm) | nominal | repair 1 |
|---|---|---|
| ø F | 38 0 -0,16 | 37,8 0 -0,16 |
Grinding of the seal bearing surfaces to - 0,2 mm (non specific seal) .
