B1EB0JK1 - 406D9 DW10 ENGINE

DATA CAMSHAFTS

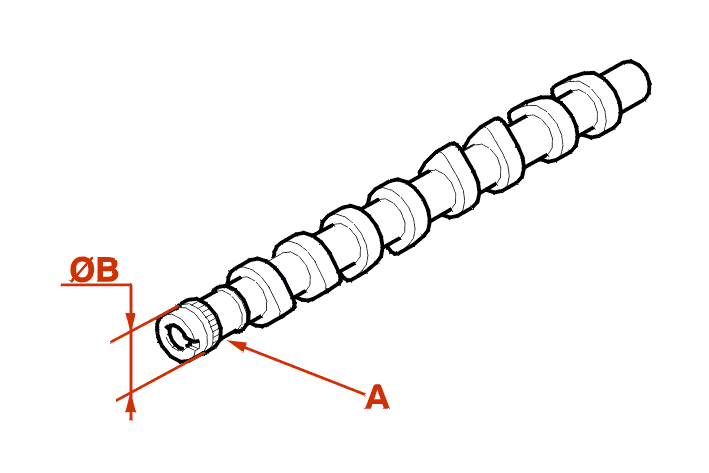

(A) : Camshaft joint face .

distance tolerance (mm)	nominal (mm)	repair 1 (mm)
ø B 0 - 0,013	27	26,8

Grinding of camshaft seal bearings to 0.2 mm (production seals fitted) .
