B1EF06K1 - 406D9 XU5JP ENGINE XU7JB ENGINE XU7JP ENGINE
ADJUSTMENT VALVE CLEARANCES (8 VALVE ENGINE(S))

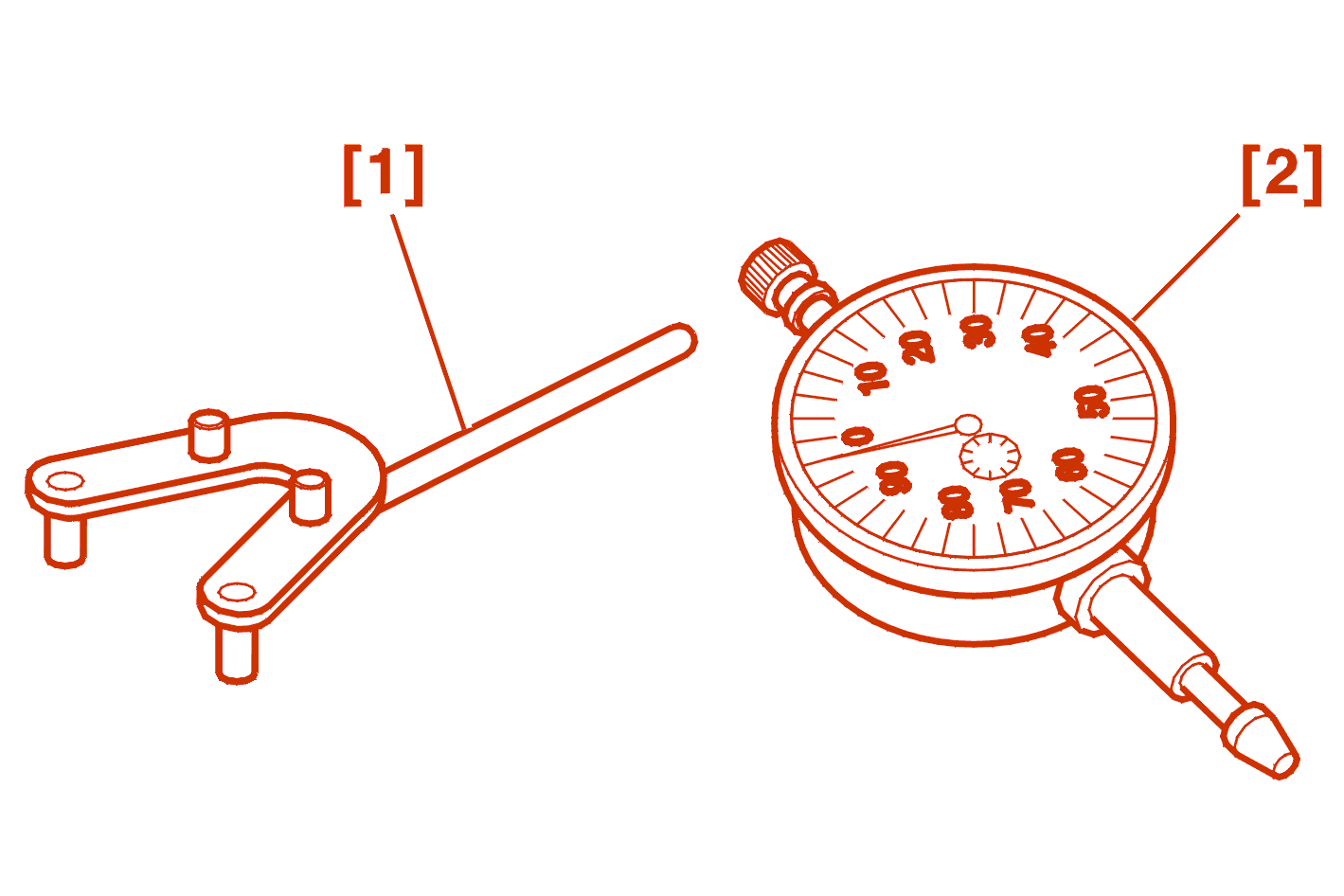

1 - SPECIAL TOOLS
| reference | description | reference | reference |
|---|---|---|---|
| [1] | timing gear tool | (-).0132-AA | 6016 - T |
| [2] | dial gauge | (-).1504 | 2437 - T |
2 - VALVE CLEARANCE ADJUSTMENT

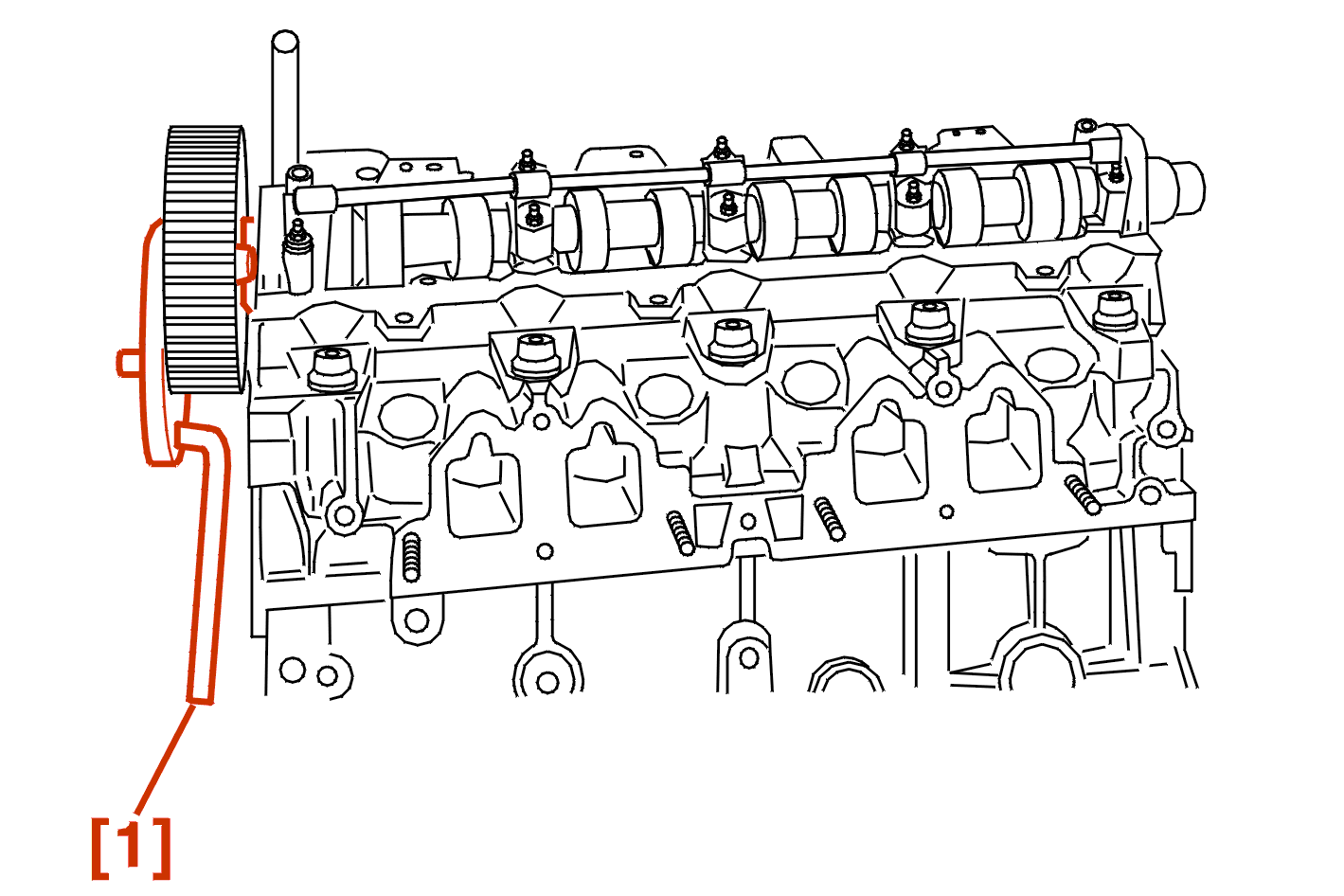

Fit the tool [1] .
Turn the camshaft using tool [1] .
Operating clearance in mm :
| set fully open | check | check |
|---|---|---|
| exhaust valve | inlet valve | exhaust valve |
| 1 | 3 | 4 |
| 3 | 4 | 2 |
| 4 | 2 | 1 |
| 2 | 1 | 3 |
Place the cam on the cam back and measure the clearance (J) .
Note the value of the clearance measured for each valve : A1-E1; E2-A2; A3-E3; E4-A4 .
If the clearances (J) noted are incorrect, remove :

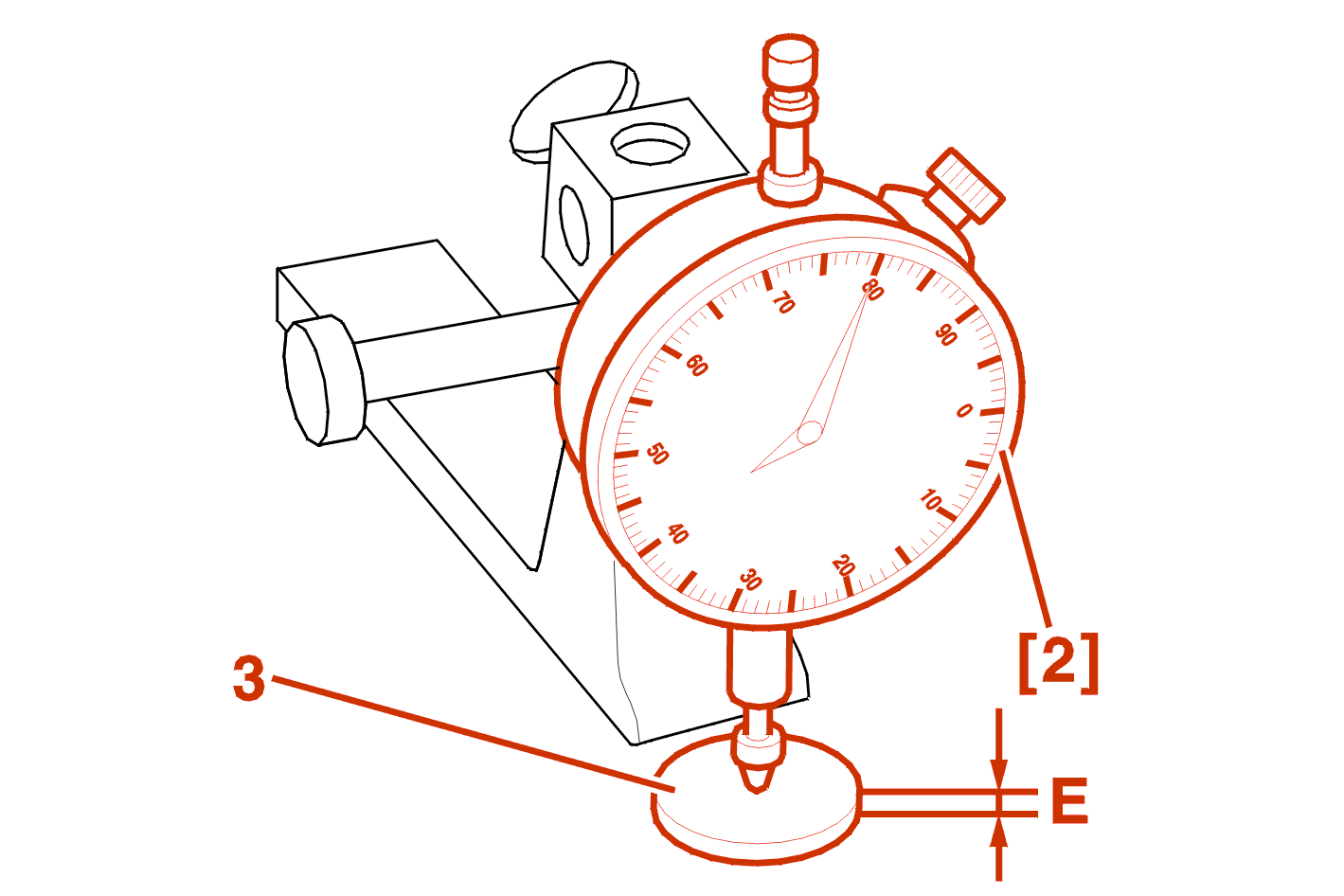

Measure the thickness (E) of the adjustment shims (3) .
Determine the thickness of adjustment shims (3) to be fitted by referring to the example (column A or B) .
Example : .
| A | B | |
|---|---|---|
| operating clearance | 0.20 | 0.40 |
| clearance measured | 0.10 | 0.55 |
| difference | - 0.10 | + 0.15 |
| E | 2.35 | 2.95 |
| shims to be fitted | 2.25 | 3.10 |
| clearance obtained | 0.20 | 0.40 |
Fit the adjustment shims (3) thus determined then the tappets (1) .

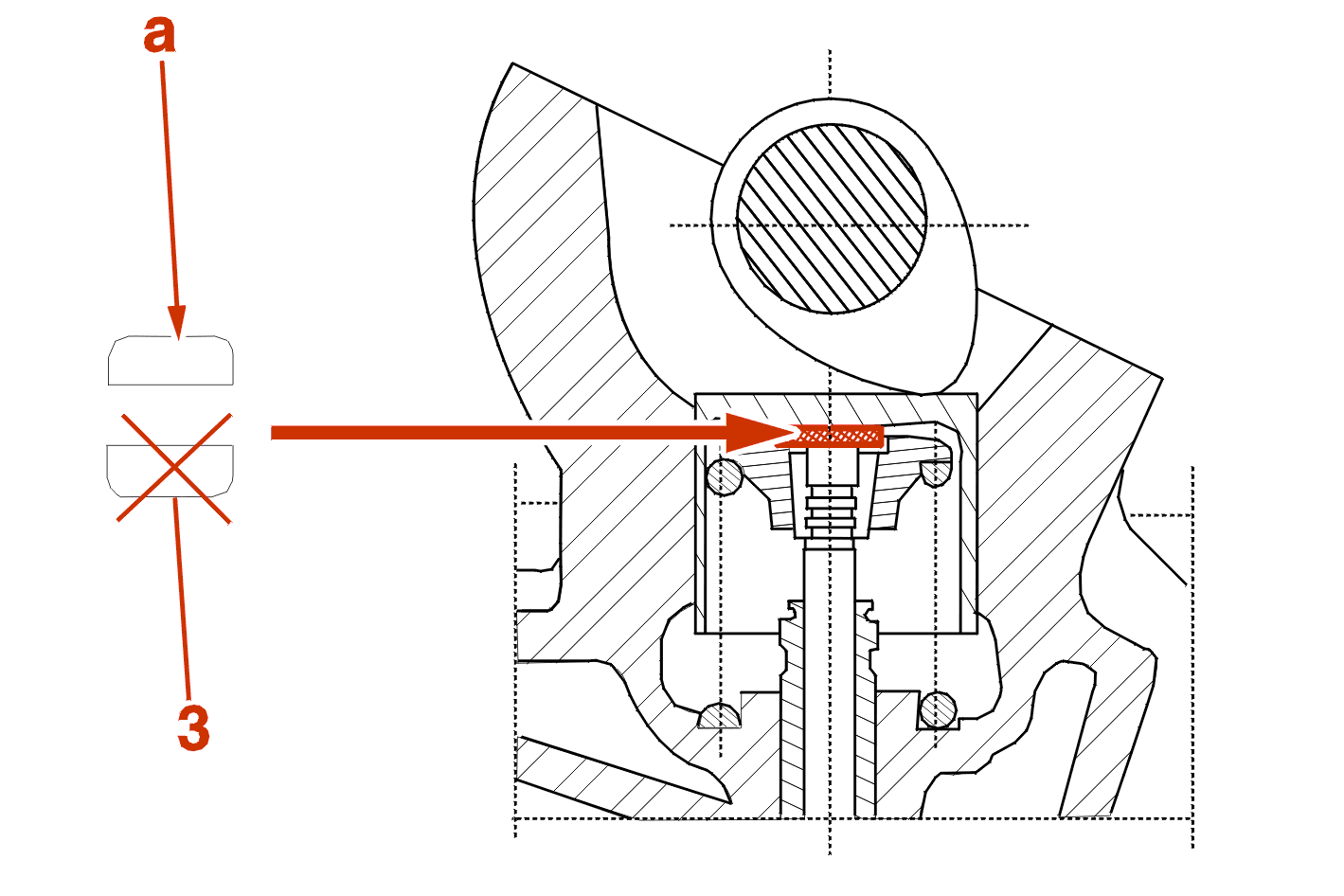

WARNING : observe the direction of fitting of the adjustment washers .
NOTE : zone (a) can be identified by its brightness .
Fit :
IMPERATIVE : for the various tightening torques .
Bearings 2 and 4 are numbered .

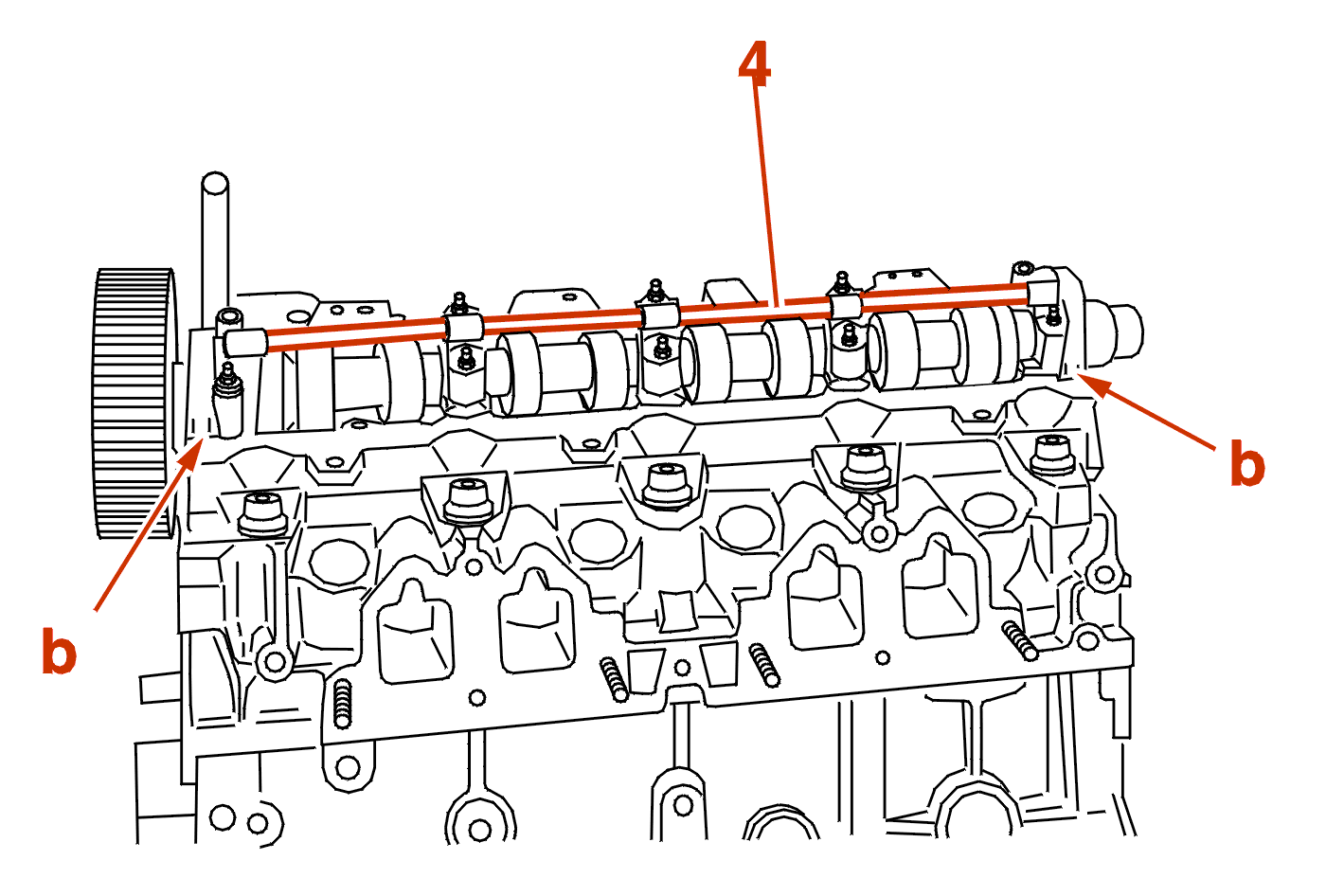

Refit the lubrication rails (4) .
Apply a drop of AUTO JOINT OR compound to the four corners (b) of the camshaft bearings .

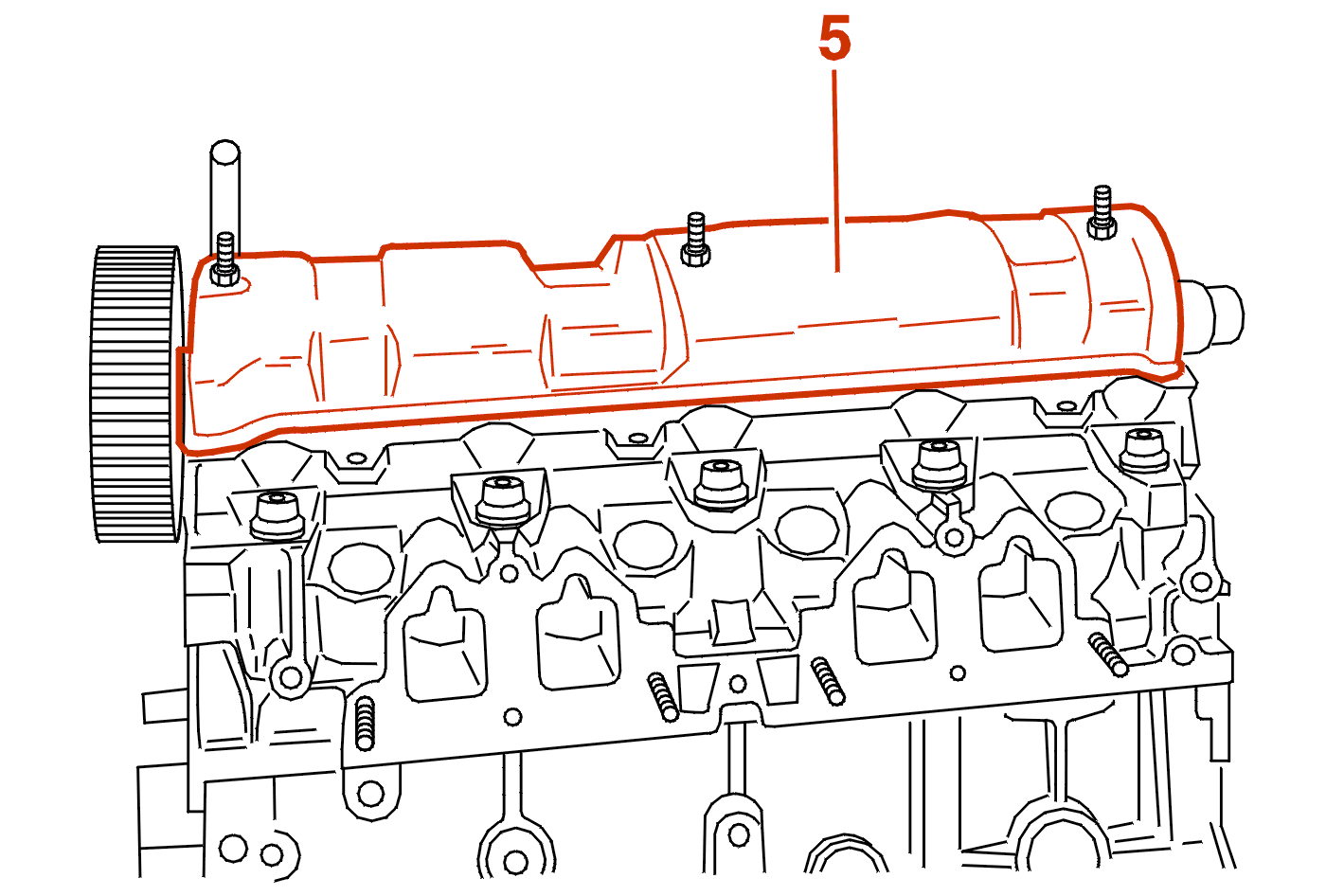

Fit the cylinder head cover (5) .
Refit the various components in the reverse order to removal .
