B1FB0CK1 - 406D9 ES9J4S ENGINE ES9J4 ENGINE ES9J4S ENGINE
DATA- IDENTIFICATION- LUBRICATION
1 - OIL CAPACITY
IMPERATIVE : engine, always check the oil level using the dipstick .
| engine | ES9J4 - ES9J4S |
|---|---|
| special features | without |
| oil capacity with replacement of the oil filter | 4.75 litre(s) |
| oil capacity, drainage by suction with replacement of filter cartridge | 5.25 litre(s) |
| oil capacity without replacement of the oil filter | - |
| capacity between min and max on the dipstick | - |
| always check the oil level using the dipstick | |
Average oil consumption per 1000 km (600 miles) when the engine is run in : 0.5 litre(s) .
2 - OIL PRESSURE
| engine | ES9J4 - ES9J4S |
|---|---|
| check 1 at 650 rpmminimum pressure (bars) | 1.2 |
| check 2 at 900 rpmminimum pressure (bars) | 2.00 |
| check 3 at 3000 rpmminimum pressure (bars) | 5.00 |
| check 4 at 4000 rpmminimum pressure (bars) | - |
| the values shown are in bars and correspond to an engine which has been run in and an oil temperature of 80 degrees C | |

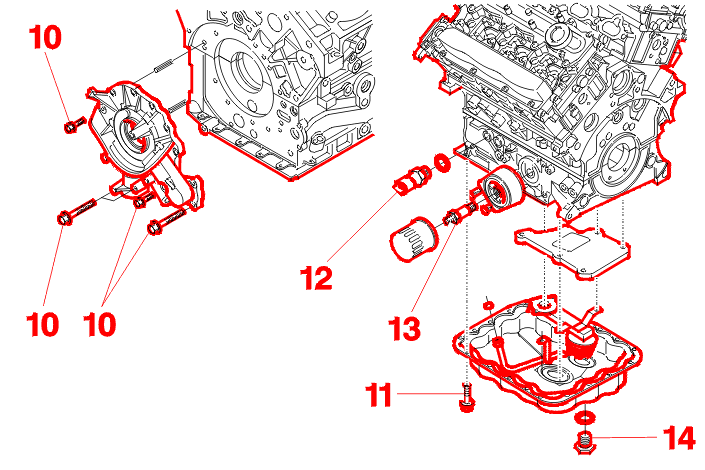

3 - TIGHTENING TORQUE(S)
| engine | ES9J4 - ES9J4S | ES9J4 - ES9J4S |
|---|---|---|
| special features | without | heat exchanger |
| (10) pre-tightening, oil pump (da.Nm) | 0.5 | 0.5 |
| (10) oil pump (da.Nm) | 0.8 | 0.8 |
| (11) pre-tightening, sump (da.Nm) | 0.5 | 0.5 |
| (11) sump (da.Nm) | 0.8 | 0.8 |
| (12) oil pressure switch (da.Nm) | 3.0 | 5.0 |
| (13) filter nipple (da.Nm) | 1.5 | 1.5 |
| (14) drain plug (da.Nm) | 3.0 | 3.0 |
