CHECK OIL PRESSURE

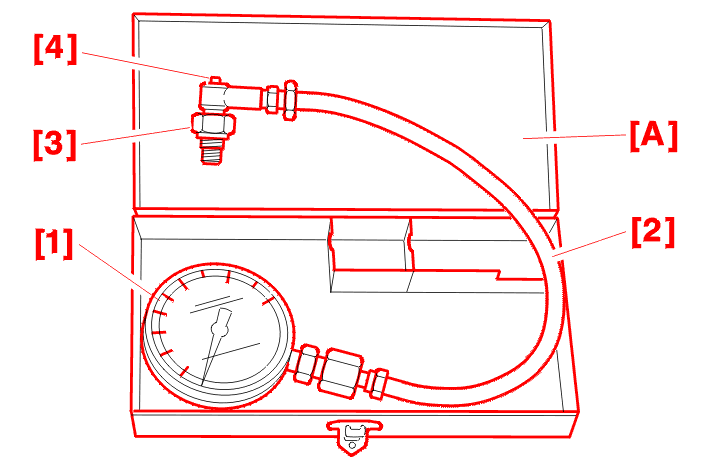

1 - SPECIAL TOOLS
| reference | description | reference | reference |
|---|---|---|---|
| [A] | kit for checking pressures and vacuums | (-).1503-ZV | 4103-T |
| [1] | pressure gauge | (-).1503-AZ | 2279-T |
| [2] | flexible hose | (-).1503-B | 7001-T |
| [3] | union | (-).1503-E | 7001-T |
| [4] | pin | - | 7001-T |
2 - PRESSURE CHECK
WARNING : oil pressure is checked with the engine hot after checking the oil level .
Disconnect the oil pressure switch .
Remove the oil pressure switch .

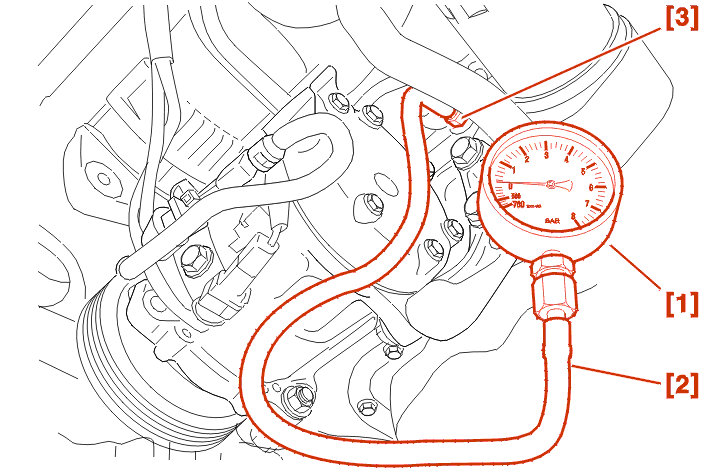

ES9J4 ENGINE ES9J4S ENGINE

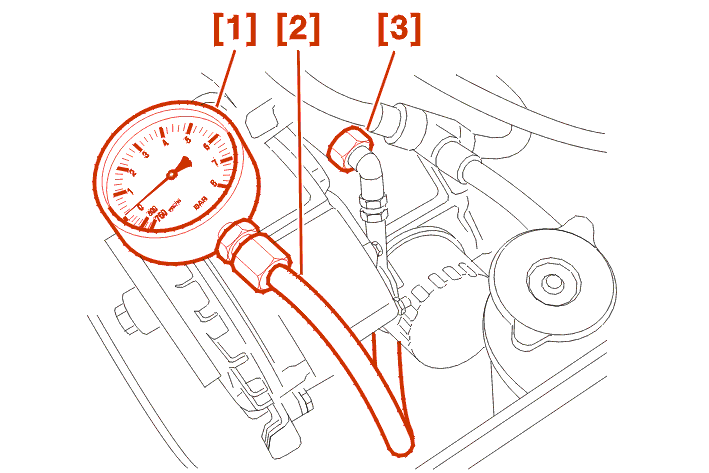

Fit the union [3] .
Connect the pressure gauge [1] and flexible hose [2] .
Connect a tachometer .
read the pressures .
Remove the pressure gauge [1], its hose [2] and its union [3] .
Remove the rev counter .
fit the oil pressure switch using a new washer .
Reconnect the pressure switch .
oil capacity .
