B1FG02K1 - 406D9 EW12J4 ENGINE

REMOVAL - REFITTING LOWER COVER

1 - REMOVAL

Remove the shield under the power train .

Drain the engine oil .

remove the ancillary drive belt .

Disconnect the compressor electrical supply .

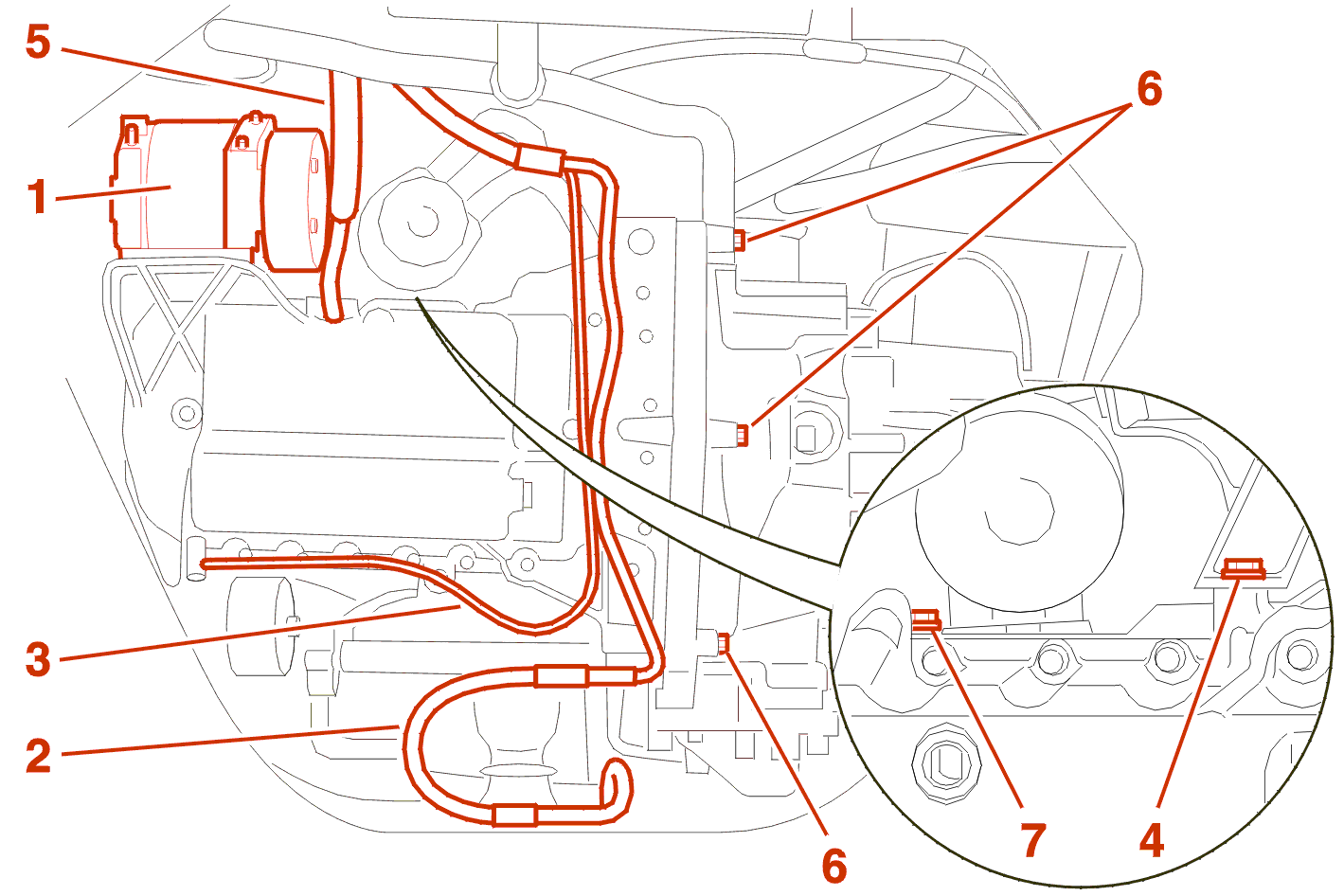

Move aside the air conditioning compressor (1) without opening the system .

Disconnect the connector from the power steering circuit pressure sensor .

Move aside the power steering pipe (2) .

Unclip and separate the harness (3) .

Remove the bolt (4) .

Disconnect the pipe (5) .

Remove the bolts (6) .

Remove :

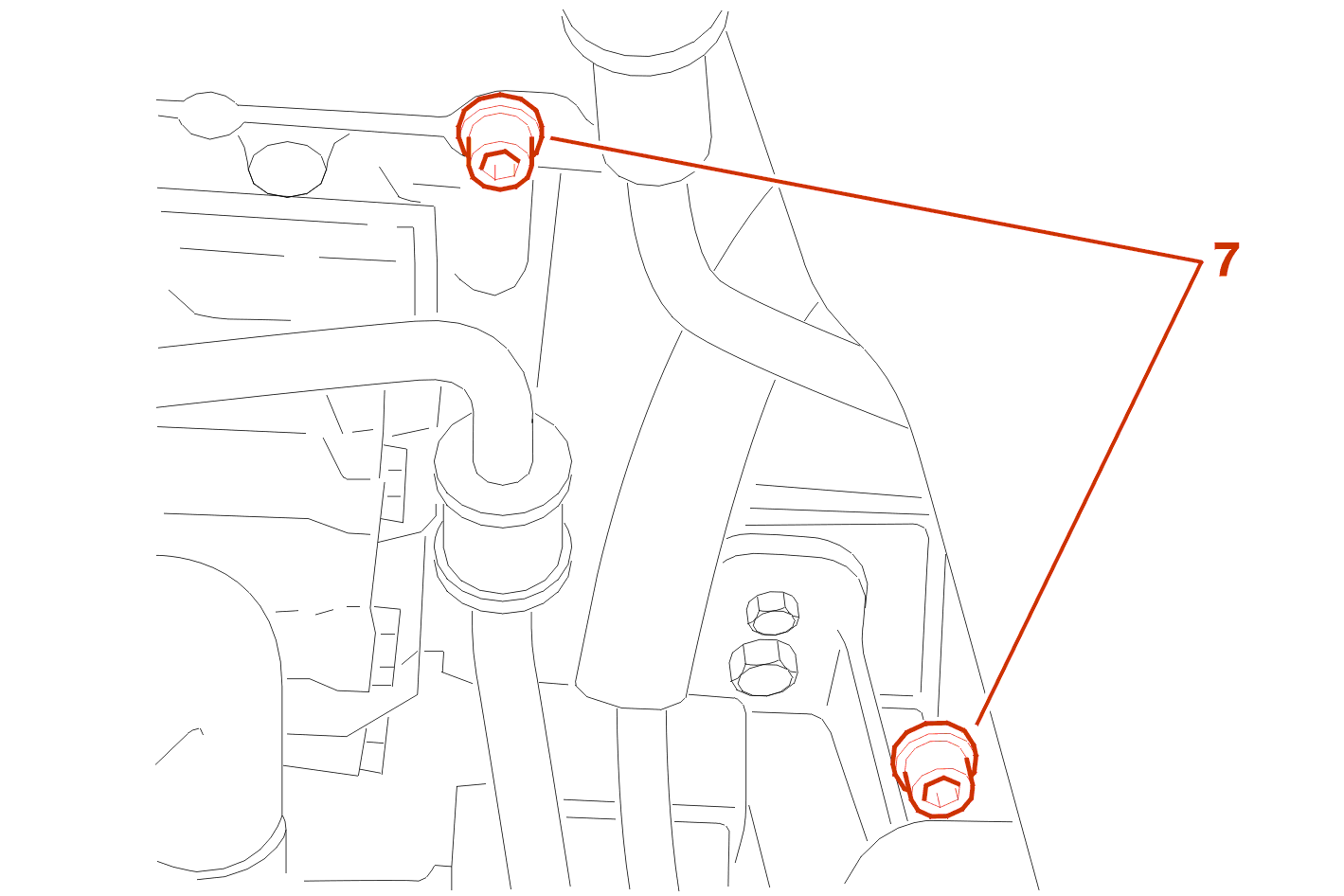

• the bolts (7)
• the dipstick tube

Remove :

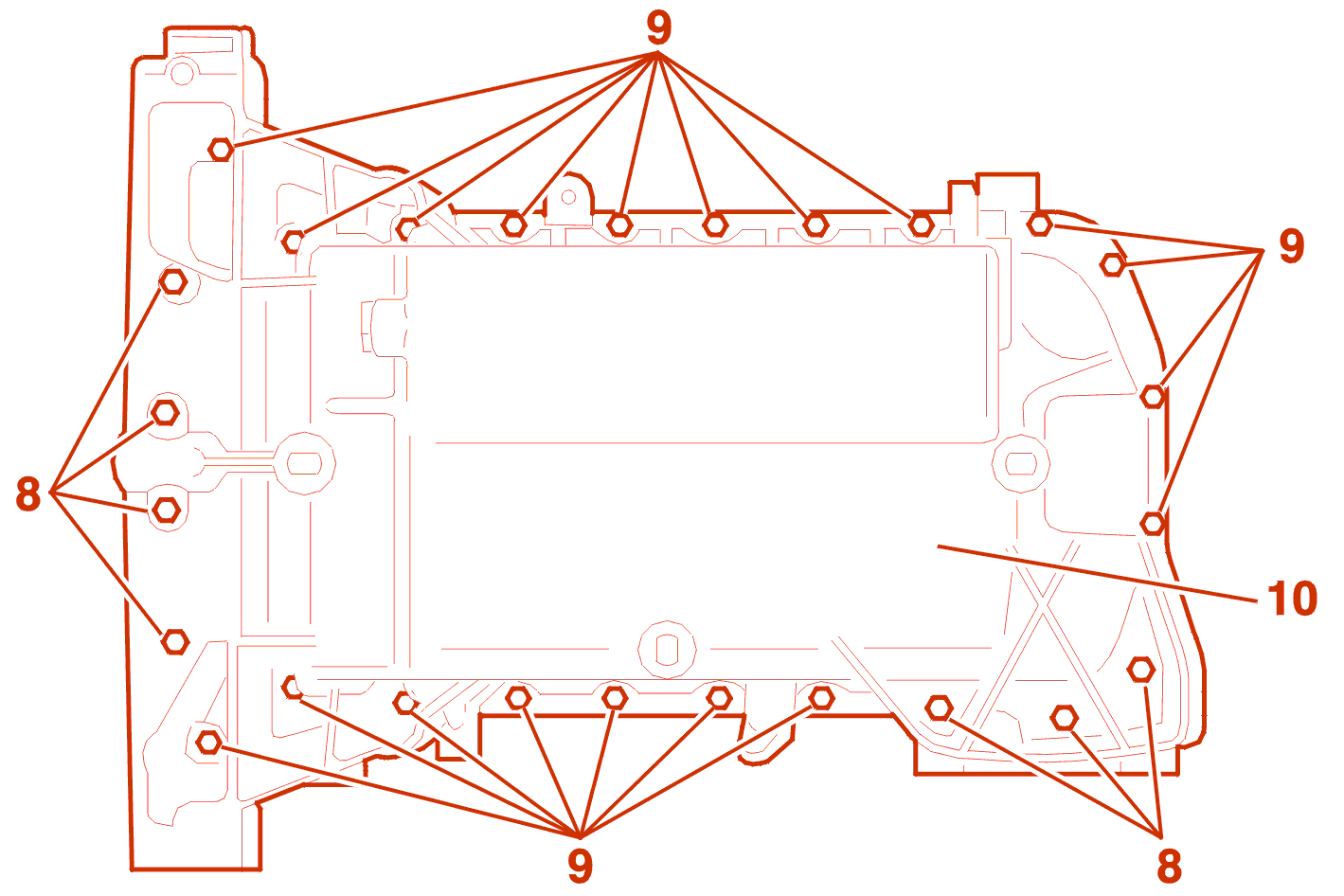

• the bolts (8) - (9)
• the crankcase (10)

2 - REFITTING

Clean the joint faces of the crankcase and the oil sump .

Coat the joint face of the casing (10) with or auto joint compound .

Refit the crankcase (10) .

Replace the bolts (8) (HM 6 x 110) .

Replace the bolts (9) (HM 6 x 25) .

Tighten the bolts (8) - (9) to 0.1 daN.m .

Replace the bolts (6), Tightening torque : 0.1 da.Nm .

Slacken the bolts (6) .

Tighten the bolts (8) - (9) to 0.8 daN.m .

Tighten the bolts (6) to 6 daN.m .

fit the ancillary drive belt .

Continue the fitting operations in the reverse order to removal .

Air conditioning compressor, Tightening torque : 2.5 da.Nm .

IMPERATIVE : always refill with new oil .
