B1GG02K1 - 406D9 ES9J4S ENGINE EMISSION CONTROL CEE 2000 ML5T GEARBOX

REMOVAL - REFITTING WATER/FLUID HEAT EXCHANGER (ENGINE)

1 - REMOVAL

drain the cooling system .

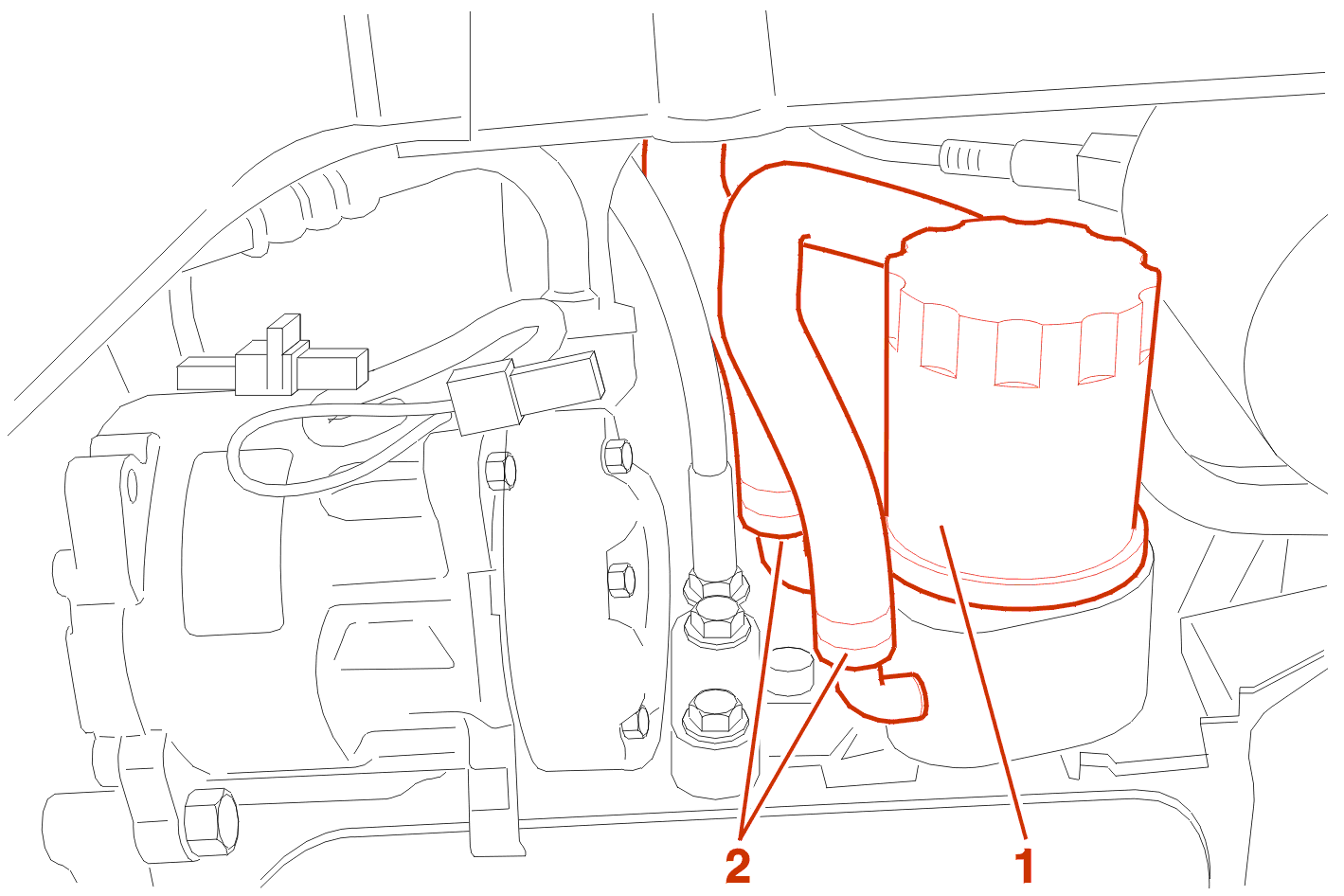

Remove :

• the oil filter (1)
• the inlet and outlet pipes (2) of the heat exchanger

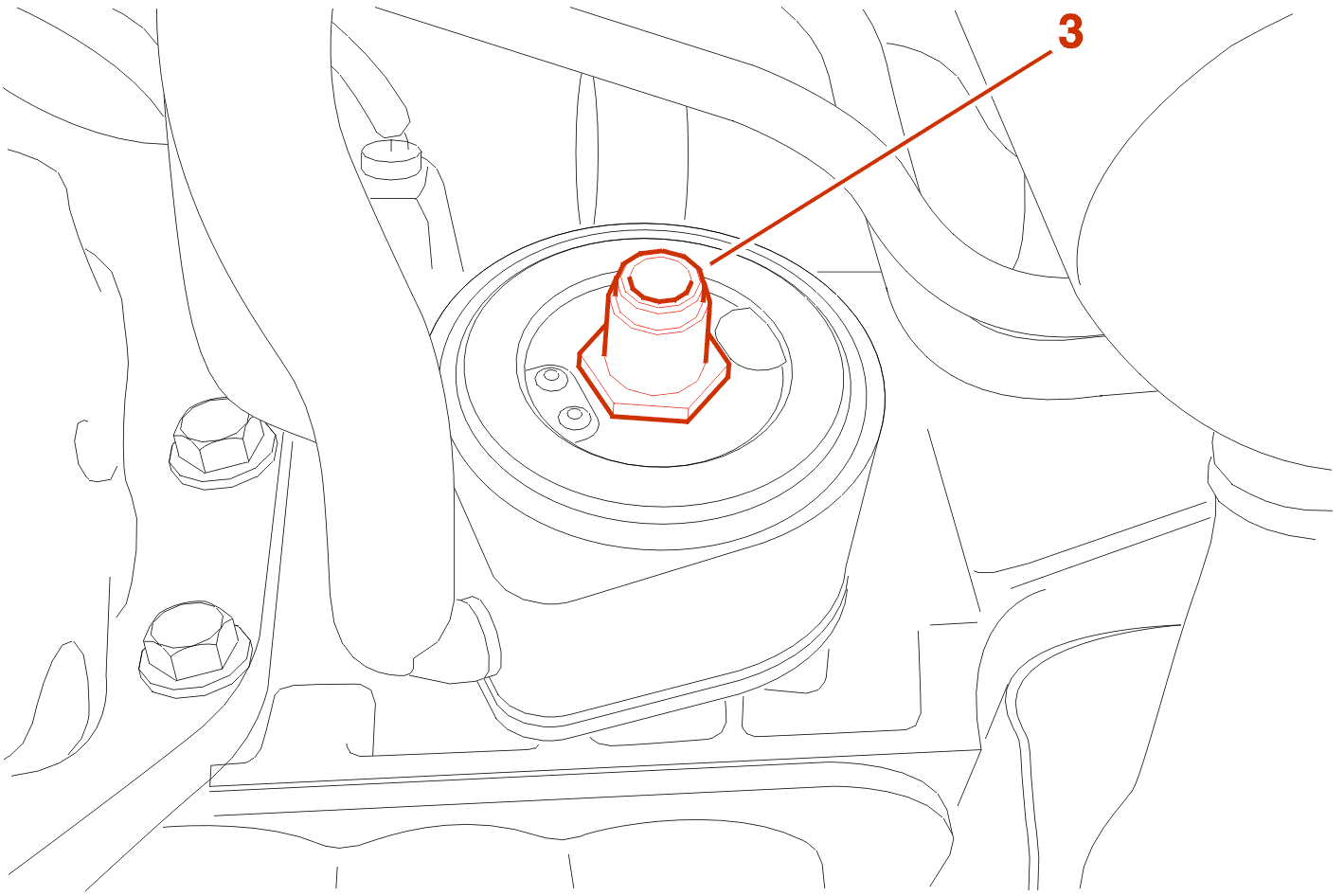

Remove the nipple (3) from the filter .

WARNING : the bolt has a locking thread; use a six sided socket to avoid damaging the bolt .

2 - REFITTING

Position the exchanger observing the position of the anti-rotation bracket (4) on rib (A) of the engine block .

Replace the filter nipple with locking thread .

Tighten to the specified torque : 5 da.Nm .

fill and bleed the cooling system .
