B1GG03K1 - 406D9 ES9J4S ENGINE EMISSION CONTROL CEE 2000

REMOVAL - REFITTING COOLANT PUMP

1 - REMOVAL

drain the cooling system .

remove the timing belt .

Remove :

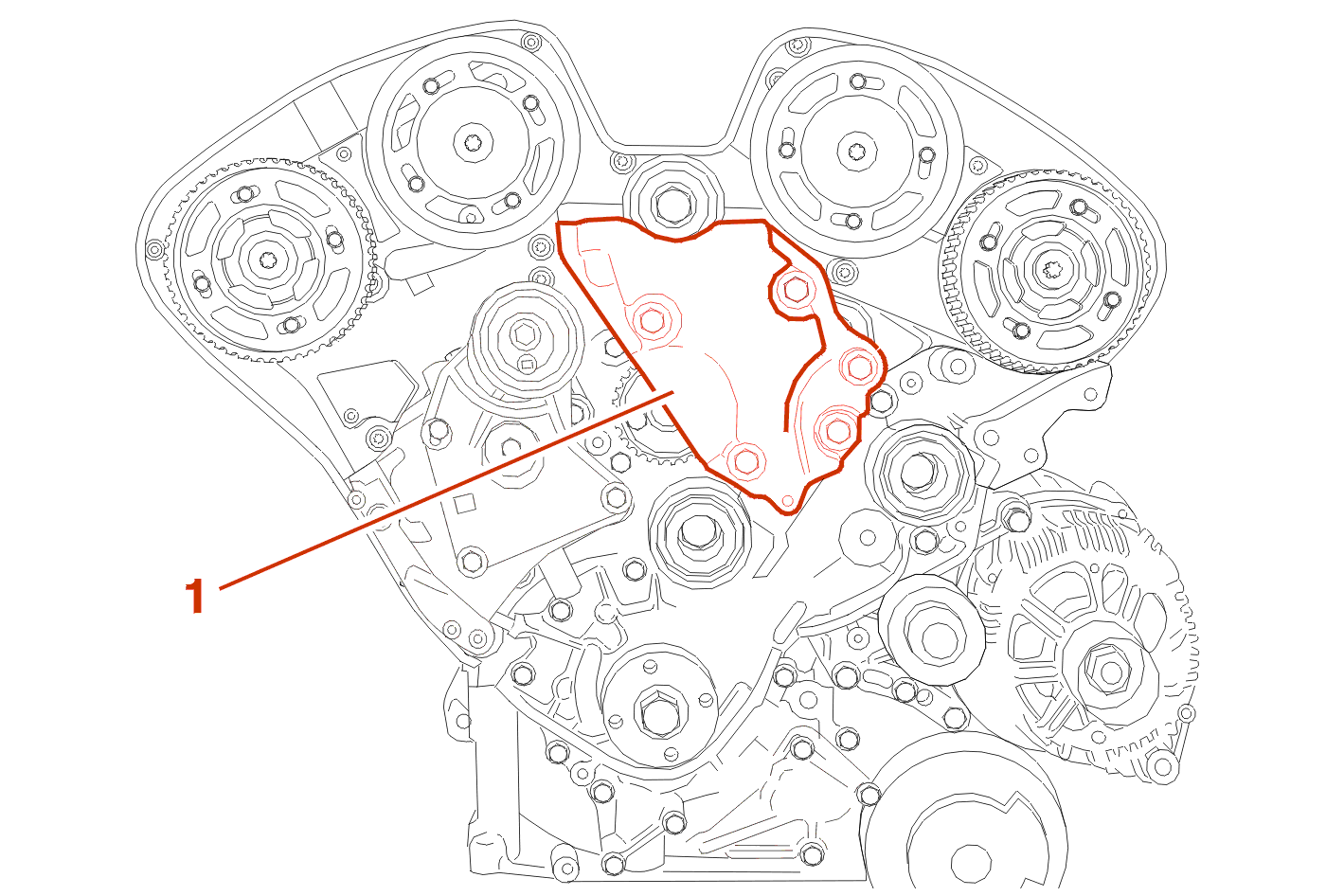

• the bracket (1)

Remove :

• the tensioning roller (2)

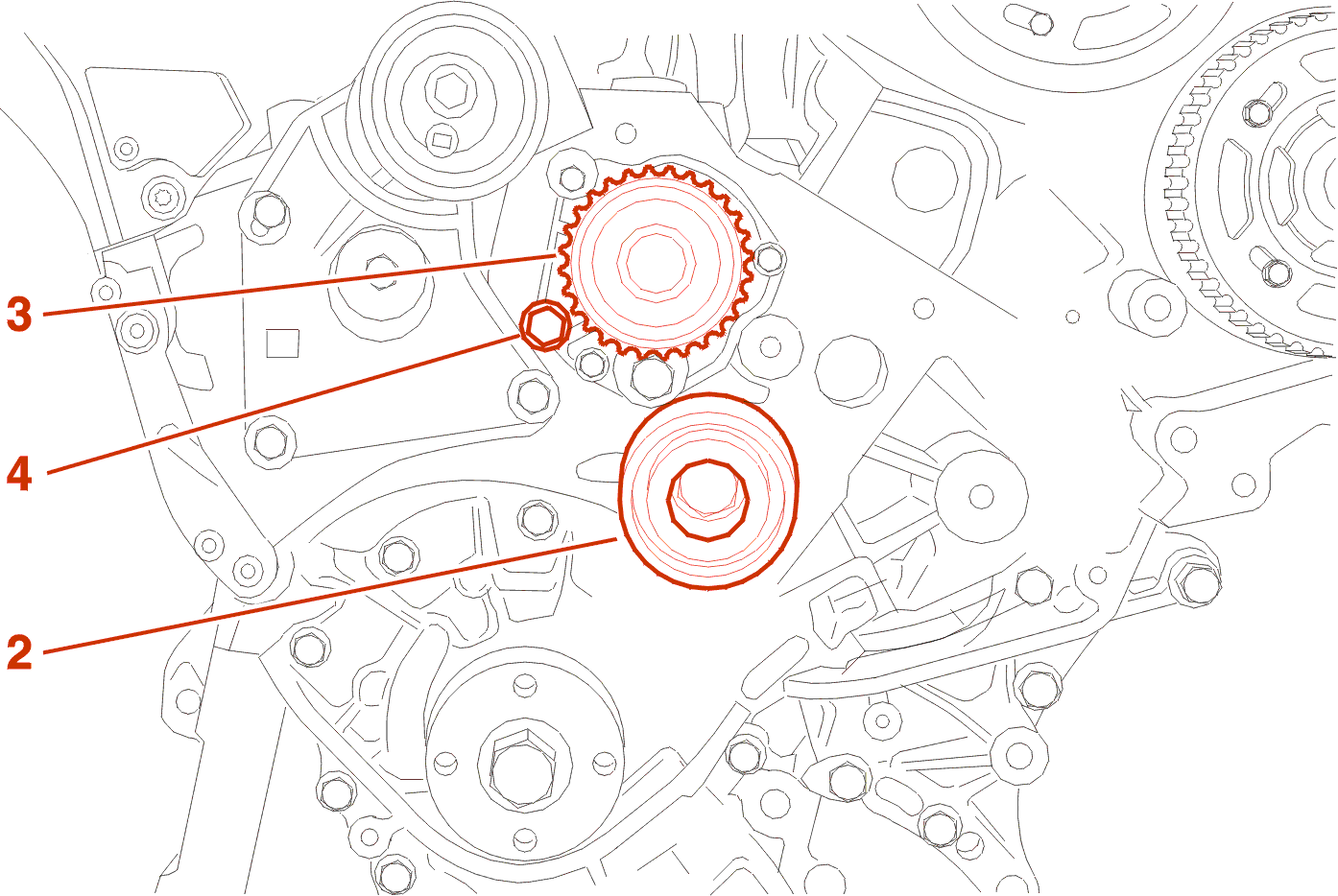

• the coolant pump (3)

Remove the coolant pump seal .

2 - REFITTING

IMPERATIVE : always replace the coolant pump seal .

Position a new seal taking care not to twist it .

Fit :

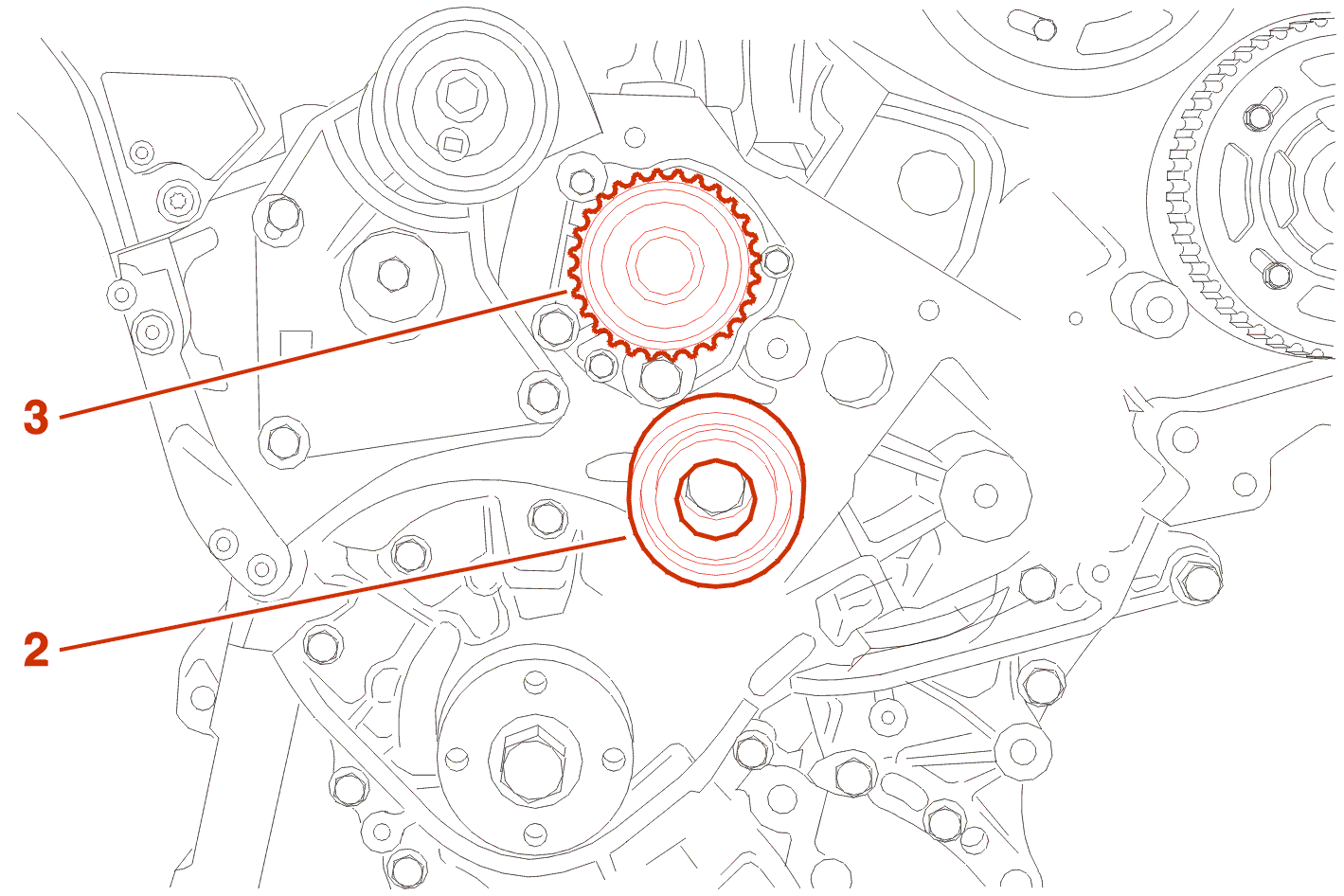

• the coolant pump (3)
• the tensioning roller (2)

NOTE : if changing the coolant pump, refit the bolt (4) securing the timing cover .

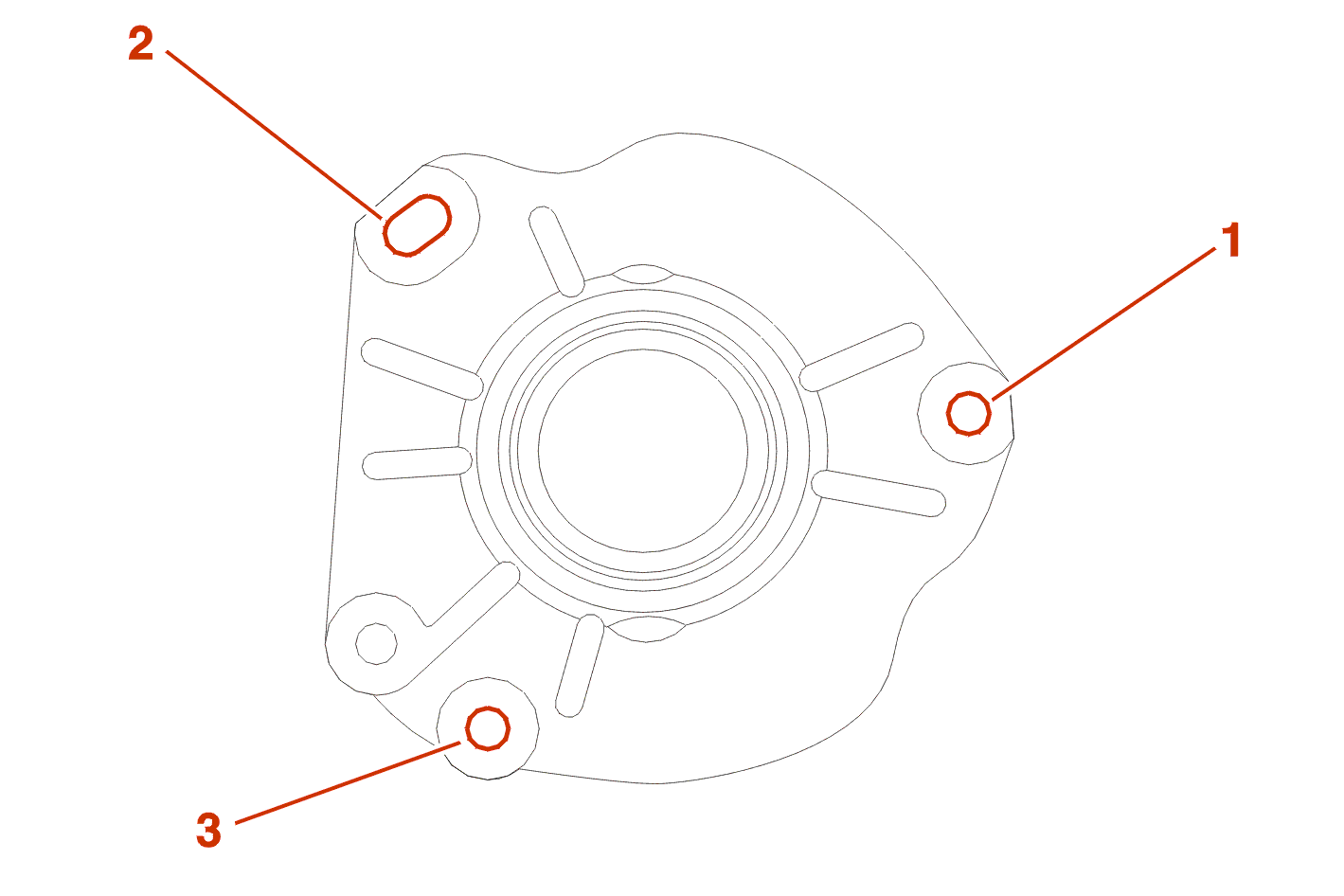

IMPERATIVE : finger tighten then progressively tighten the securing bolts in the order shown .

Pre-tightening 0,5 da.Nm .

Tightening torque: 0,8 da.Nm .

Check the tightening : 0,8 da.Nm .

Fit :

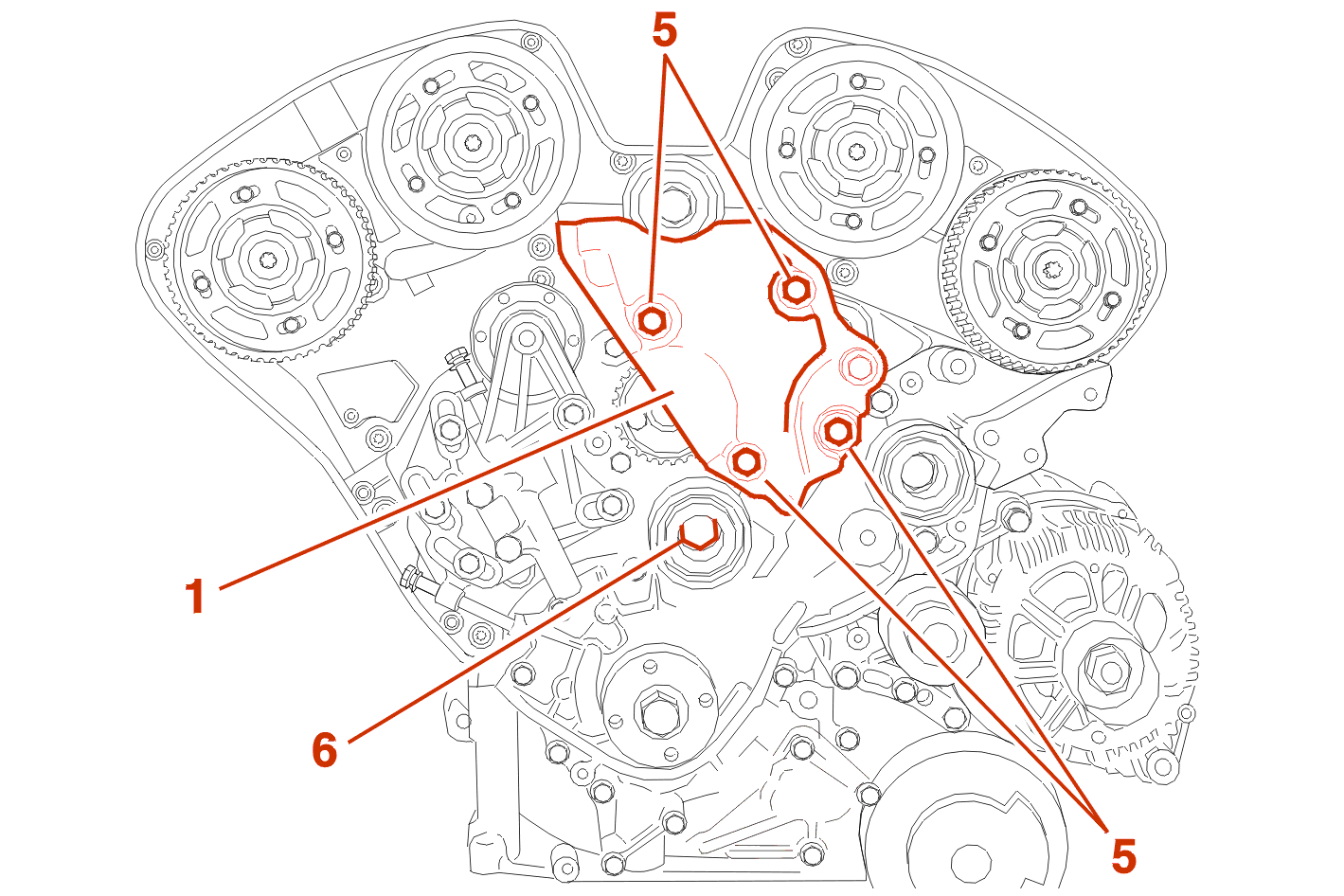

• the bracket (1)

Tighten :

• the bolts (5) to 6 da.Nm
• the bolt (6) to 8 da.Nm

refit the timing belt .

fill and bleed the cooling system .
