B1GG0LK1 - 406D9 ES9J4S ENGINE EMISSION CONTROL CEE 2000 ES9J4 ENGINE

REMOVAL - REFITTING THERMOSTAT

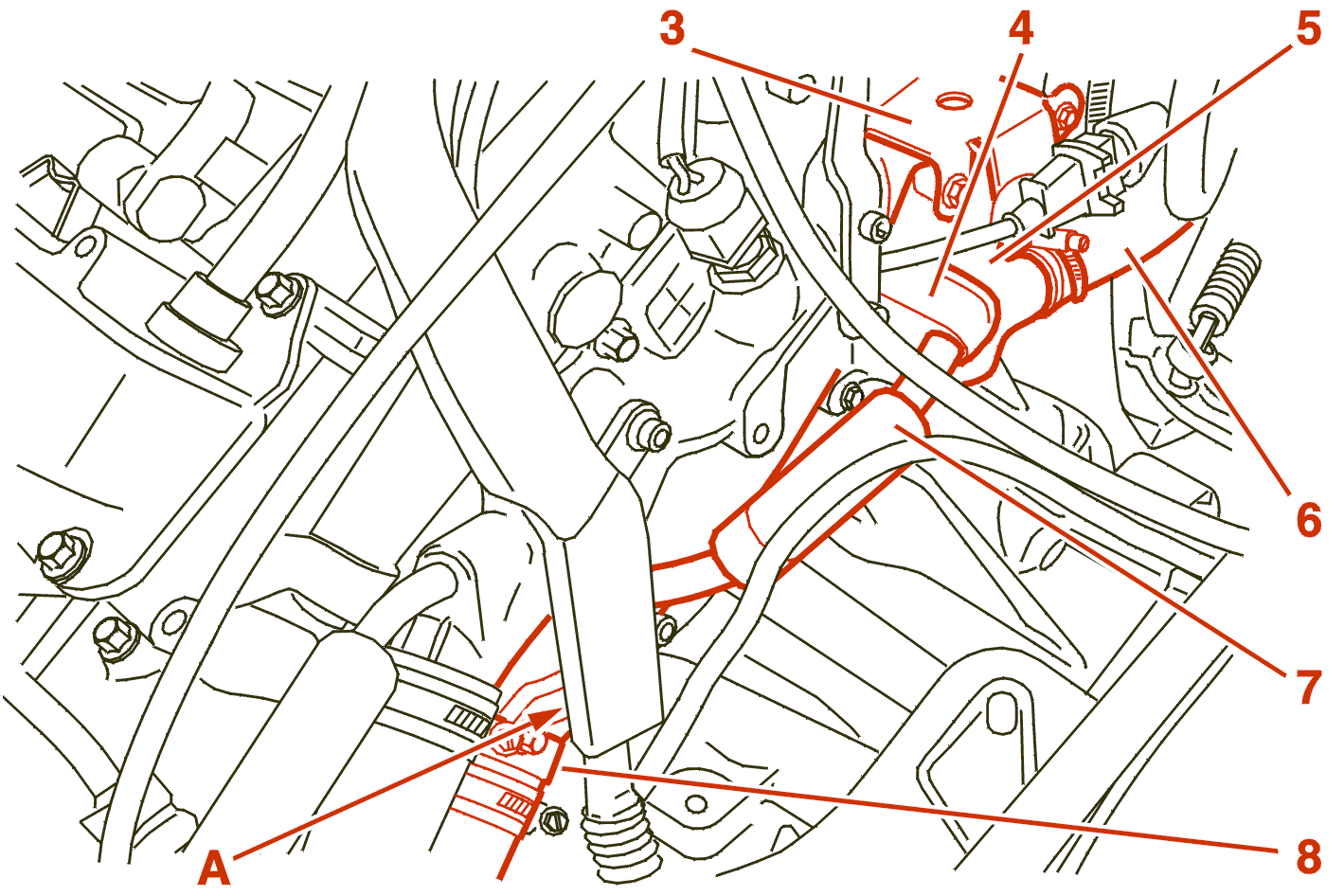

1 - REMOVAL

Disconnect :

• the connector (1)

Remove :

• the air cleaner and its outlet pipe (2)

drain the cooling system .

Move aside :

• the pipe (8)
• the pipe (6)
• the bracket (3)
• the rear charging pipe

Remove :

• the coolant manifold (4)

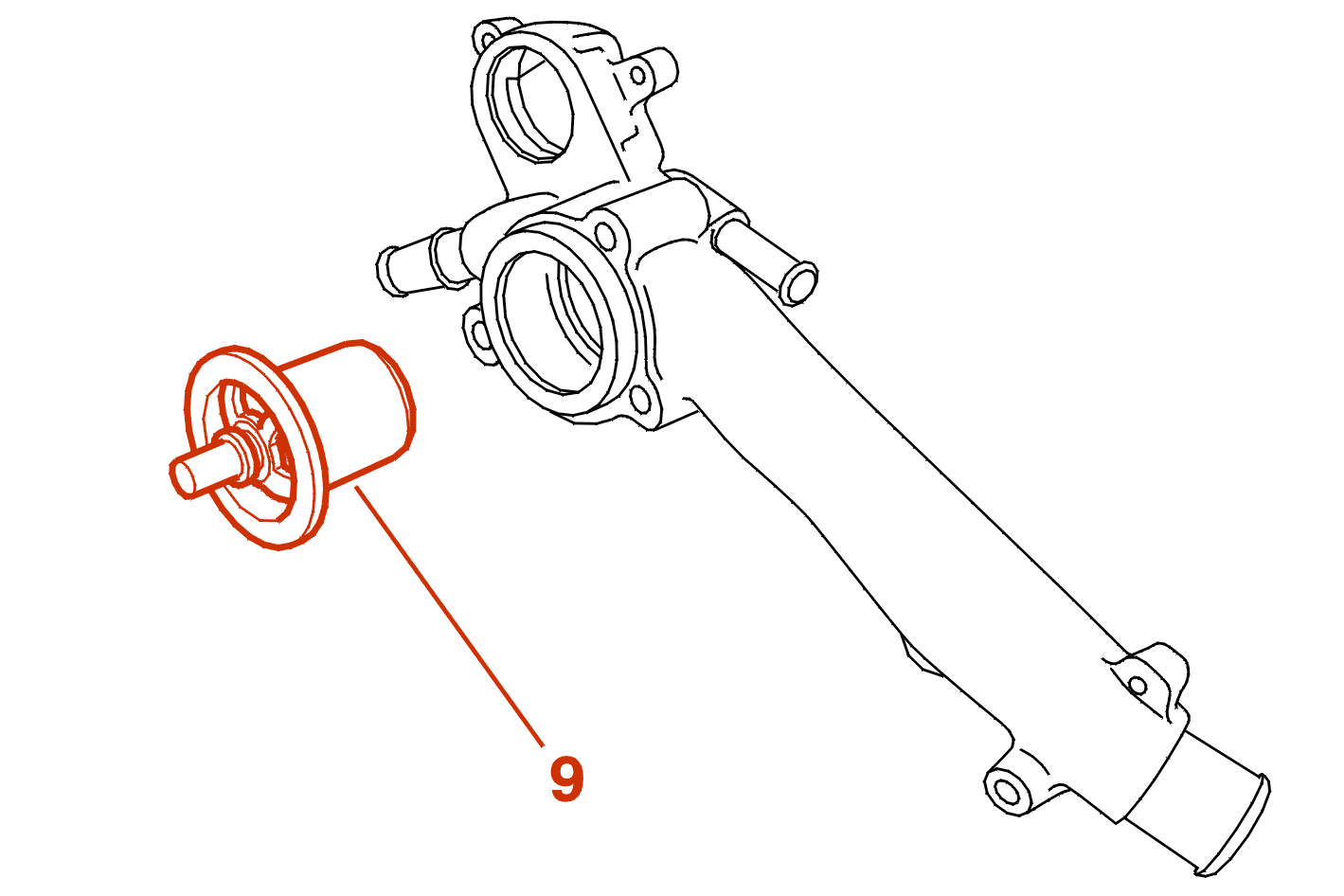

Remove the thermostat (9) .

2 - REFITTING

Always renew :

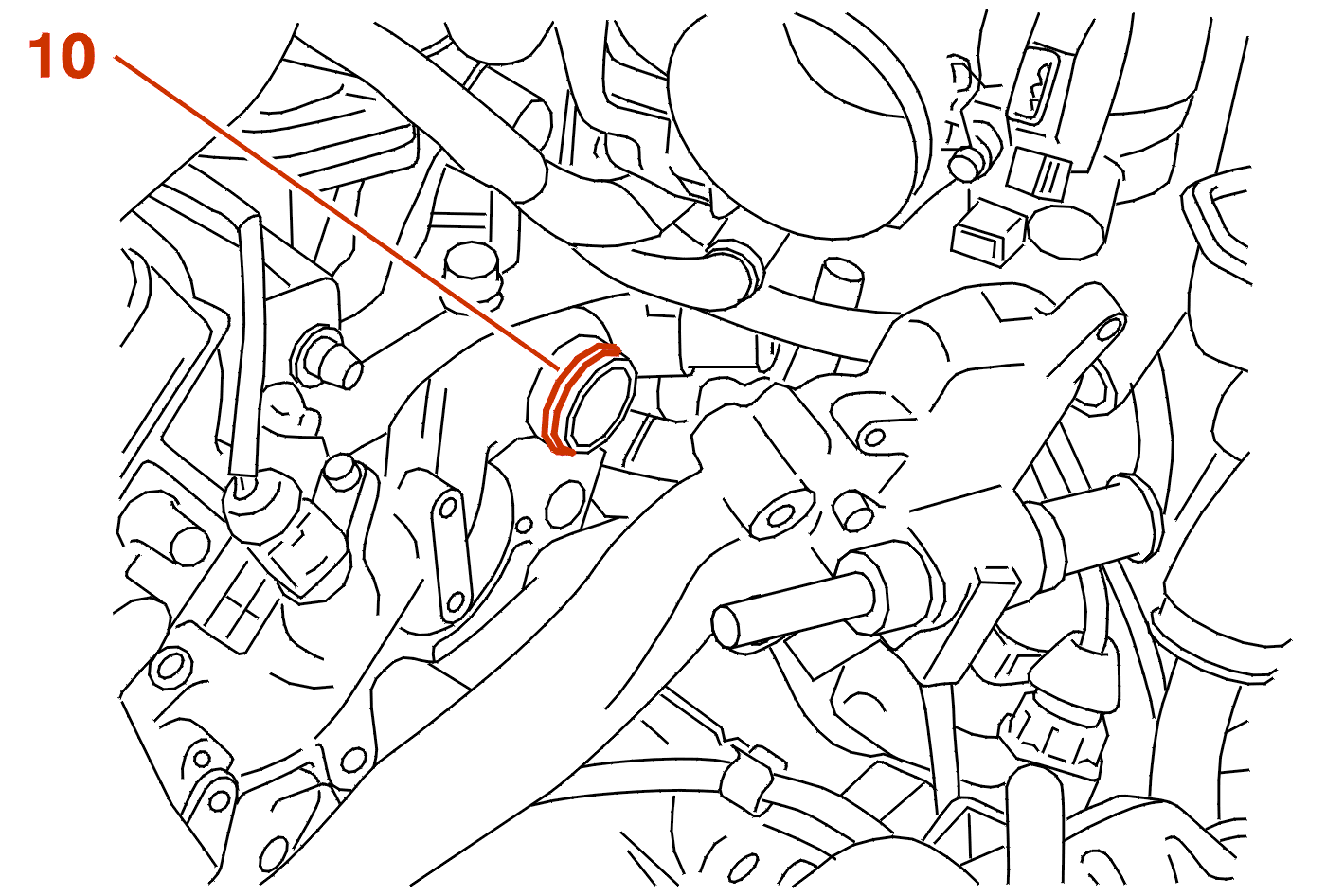

• the thermostat seal (10)

Position :

• the coolant manifold (4)

Run up the bolts .

Tighten :

• the bolts (M8) to 2,5 da.Nm
• the bolts (M6) to 0,8 da.Nm

Continue the fitting operations in the reverse order to removal .

fill and bleed the cooling system .
