B1HB30K1 - 406D9 DW10 ENGINE

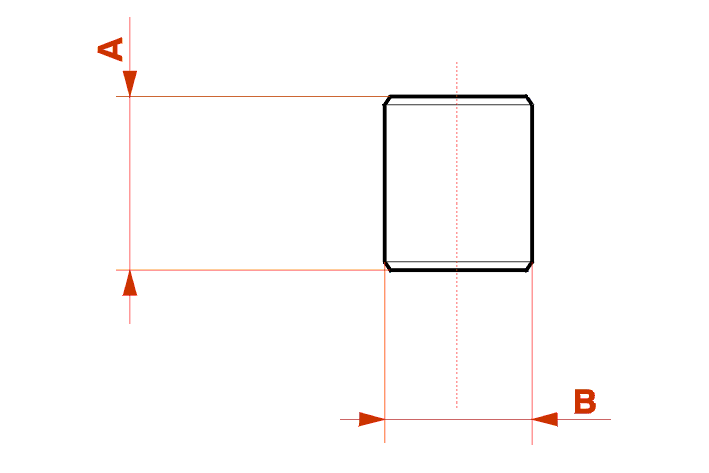

DATA INJECTOR FIXING FORK SUPPORT PIN
| dimensions (mm) | nominal (mm) | repair (mm) |
|---|---|---|
| A ± 0,1 |
11,6 | 12,0 |
| ø B ± 0,1 |
9,8 | 9,8 |
IMPERATIVE : on grinding the cylinder head joint face : the injector fixing fork support pins will be replaced by repair dimension pins .
