B1HG22K1 - 406D9 EW10J4 ENGINE EW12J4 ENGINE ES9J4S ENGINE

REMOVAL - REFITTING FUEL FILTER

1 - SPECIAL TOOLS

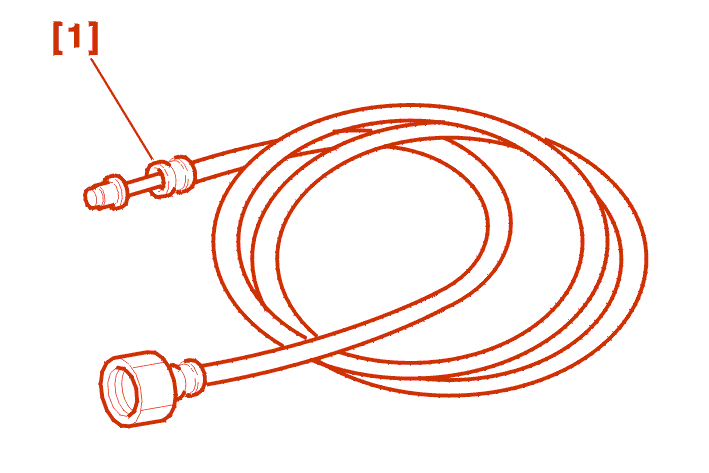

[1]Pipe with adapter for valve SHRADER (-).0141-T1 .

2 - REMOVAL

Drop the pressure in the supply pipe by connecting the end of the equipment [1] to the valve SHRADER; open the other end into a receptacle .

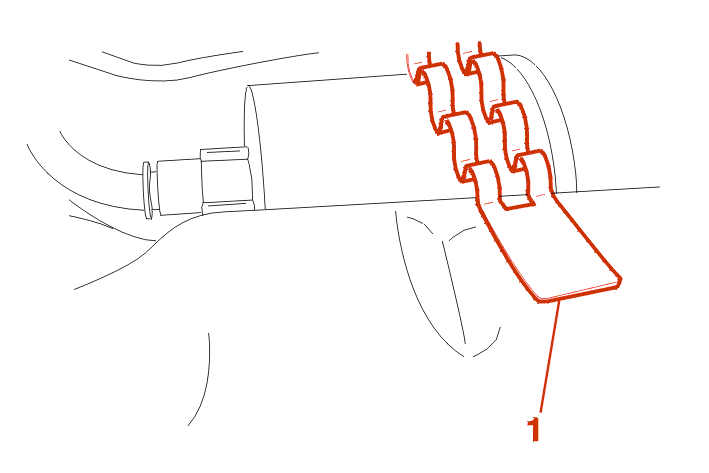

Pull the tie wrap (1) to release the filter .

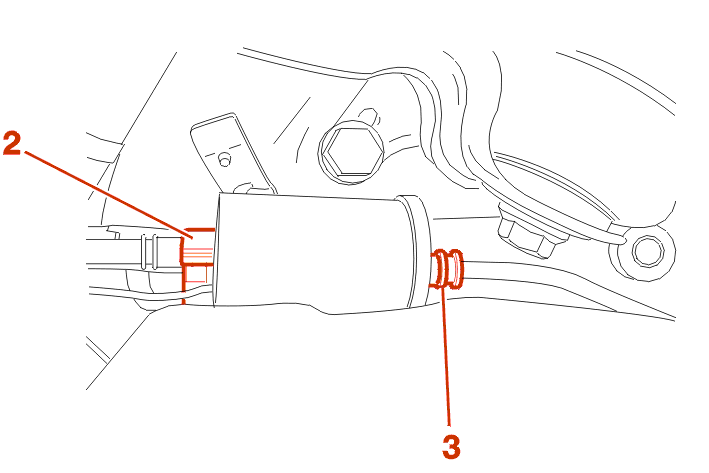

Disconnect the filter input (2) and output (3) click-on connectors .

Remove the fuel filter .

3 - REFITTING

Before refitting the click-on union, ensure that the fuel pipe is clean and in perfect condition in the area of the seal bearing .

Reconnect the input (2) and output (3) click-on connectors observing the correct direction for fitting the filter .

Refit the tie wrap .
