B1HG2VK1 - 406D9 DW12TED4 ENGINE

REMOVAL - REFITTING FUEL FILLER NECK

1 - REMOVAL

Place the vehicle on a lift with wheels suspended .

drain the fuel tank .

Remove :

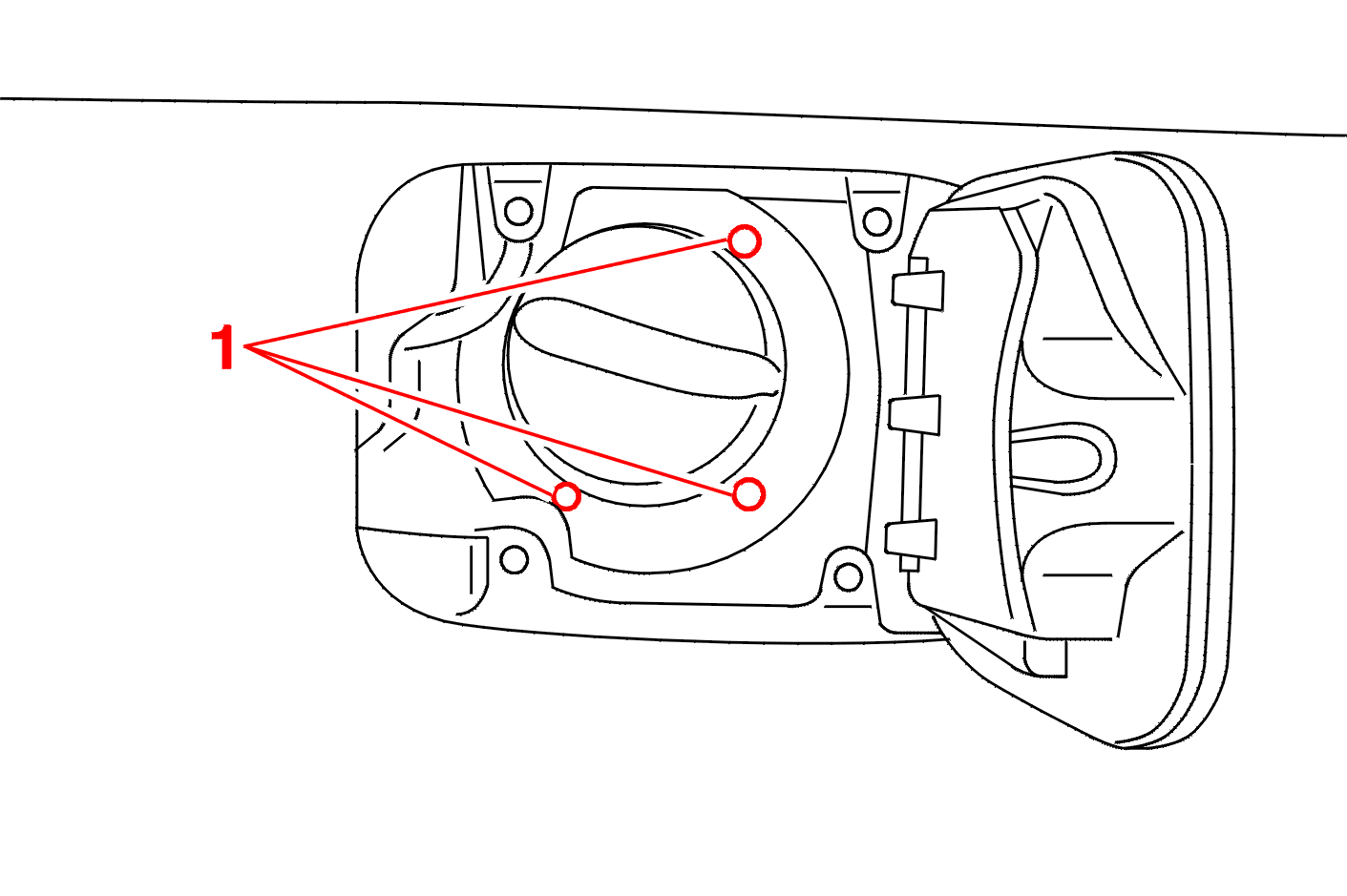

• the 3 bolts (1)
• the right hand rear wheel
• the mud shield

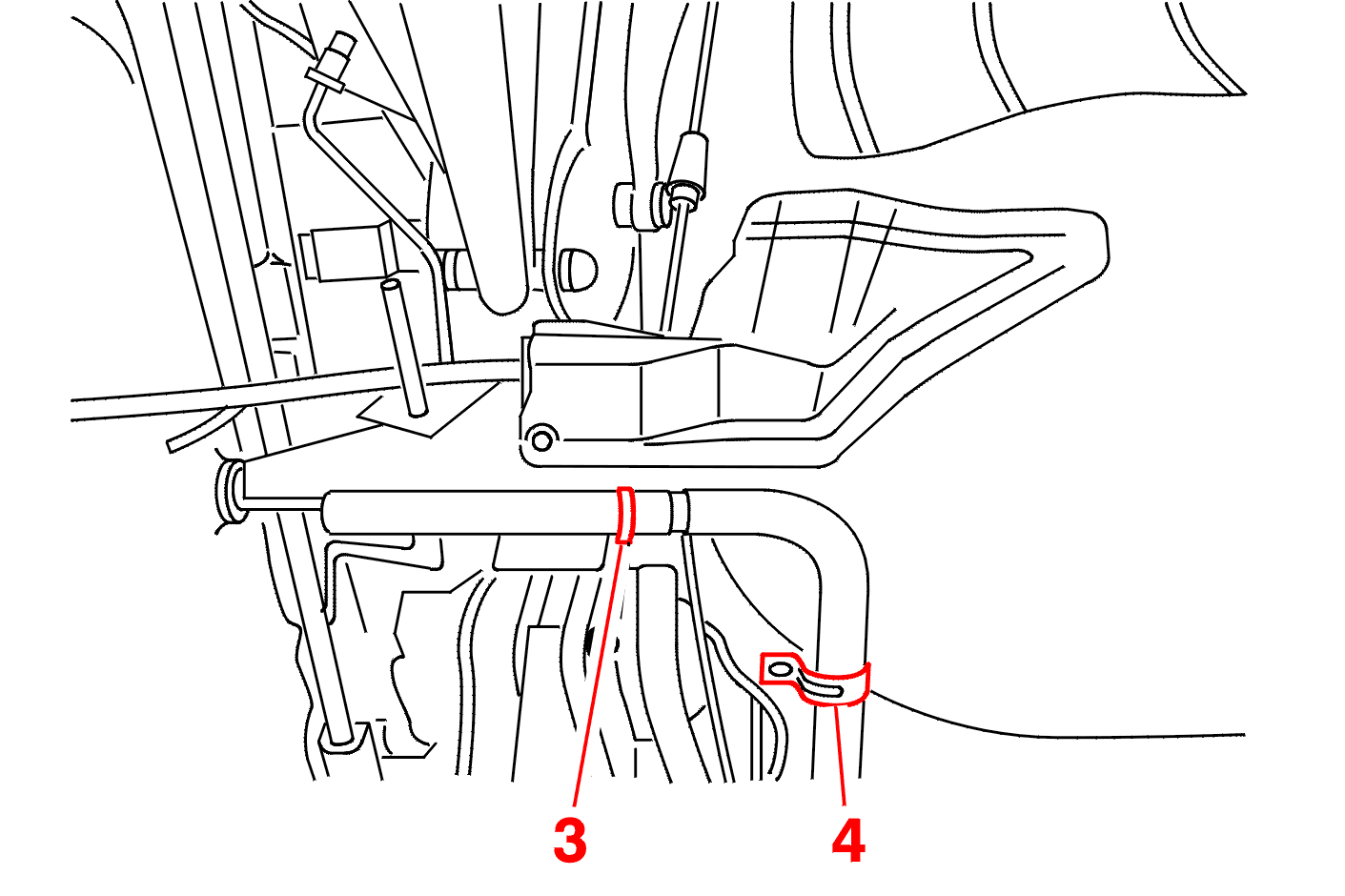

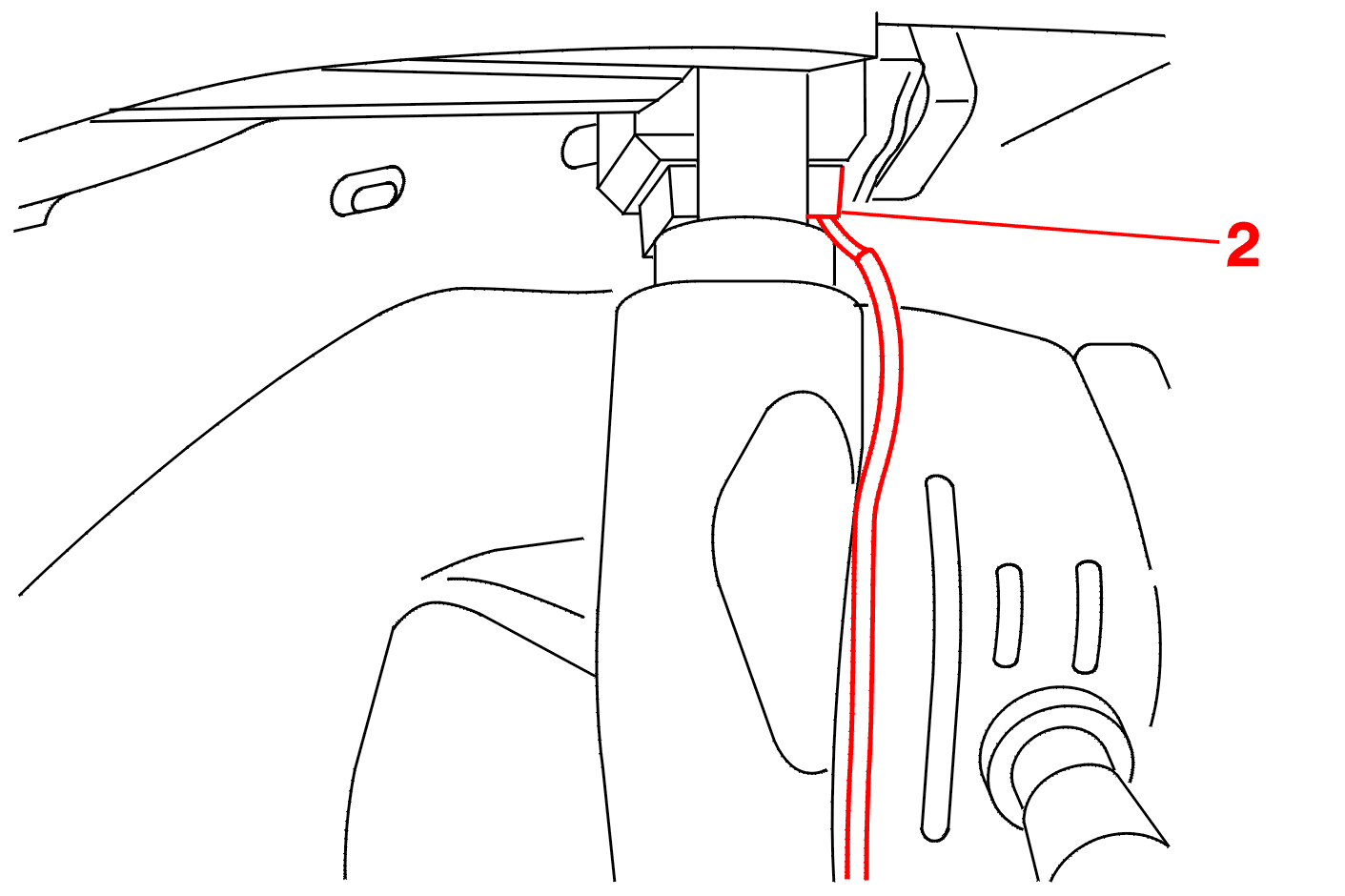

Disconnect the connector (2) .

Release the clip (3) .

NOTE : replace the clip following each removal .

Remove the fastener (4) .

2 - REFITTING

Proceed in the reverse order to removal .
