B1HT06K1 - 406D9 LPG DUAL-FUEL

MODIFICATION LPG ECU NECAM KOLTEC

From build code 0850289 :

the 406 lpg vehicles are fitted with a new ecu using a new lighting strategy for the lpg instrument panel warning light

1 - IDENTIFICATION

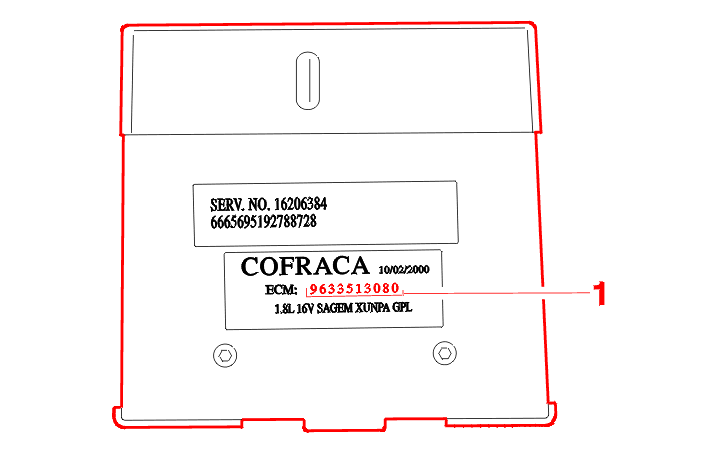

(1) Identification mark on the ecu :

2 - LIGHTING STRATEGY FOR THE WARNING LIGHT ON THE INSTRUMENT PANEL

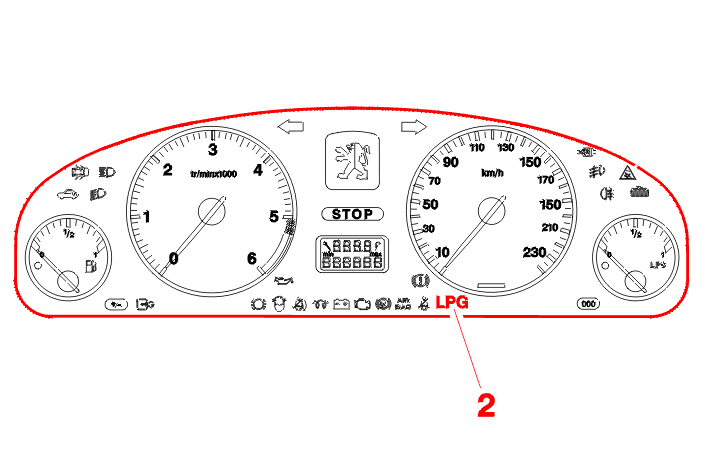

(2) Lpg warning light on the instrument panel .

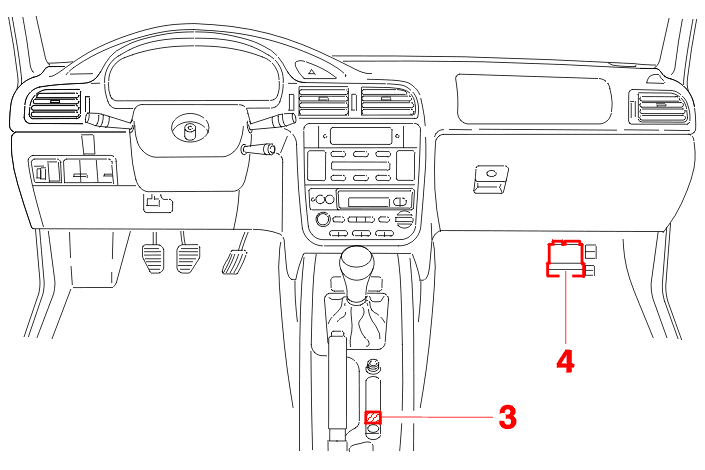

(3) Lpg switch warning light .

(4) LPG ECU NECAM KOLTEC .

operation of the warning light : up to build code 0850189
information on the fuel used	status of the switch	status of the warning ligh on the instrument panel
petrol operated	not lit	not lit
lpg operated	lit	warning light flashing during switching, then goes out
tilting of lpg / petrol when there is a lack of lpg or a malfunction in lpg mode	lit	lit

operation of the warning light : from build code 850289
information on the fuel used	status of the switch	status of the warning ligh on the instrument panel
petrol operated	not lit	not lit
lpg operated	lit	lit
tilting of lpg / petrol when there is a lack of lpg or a malfunction in lpg mode	lit	flashing of warning lamp

3 - INTERCHANGEABILITY

The ecus are not interchangeable .
