B1IG06K1 - 406D9 ES9J4S ENGINE EMISSION CONTROL CEE 2000

REMOVAL - REFITTING PLUGS

1 - REMOVAL

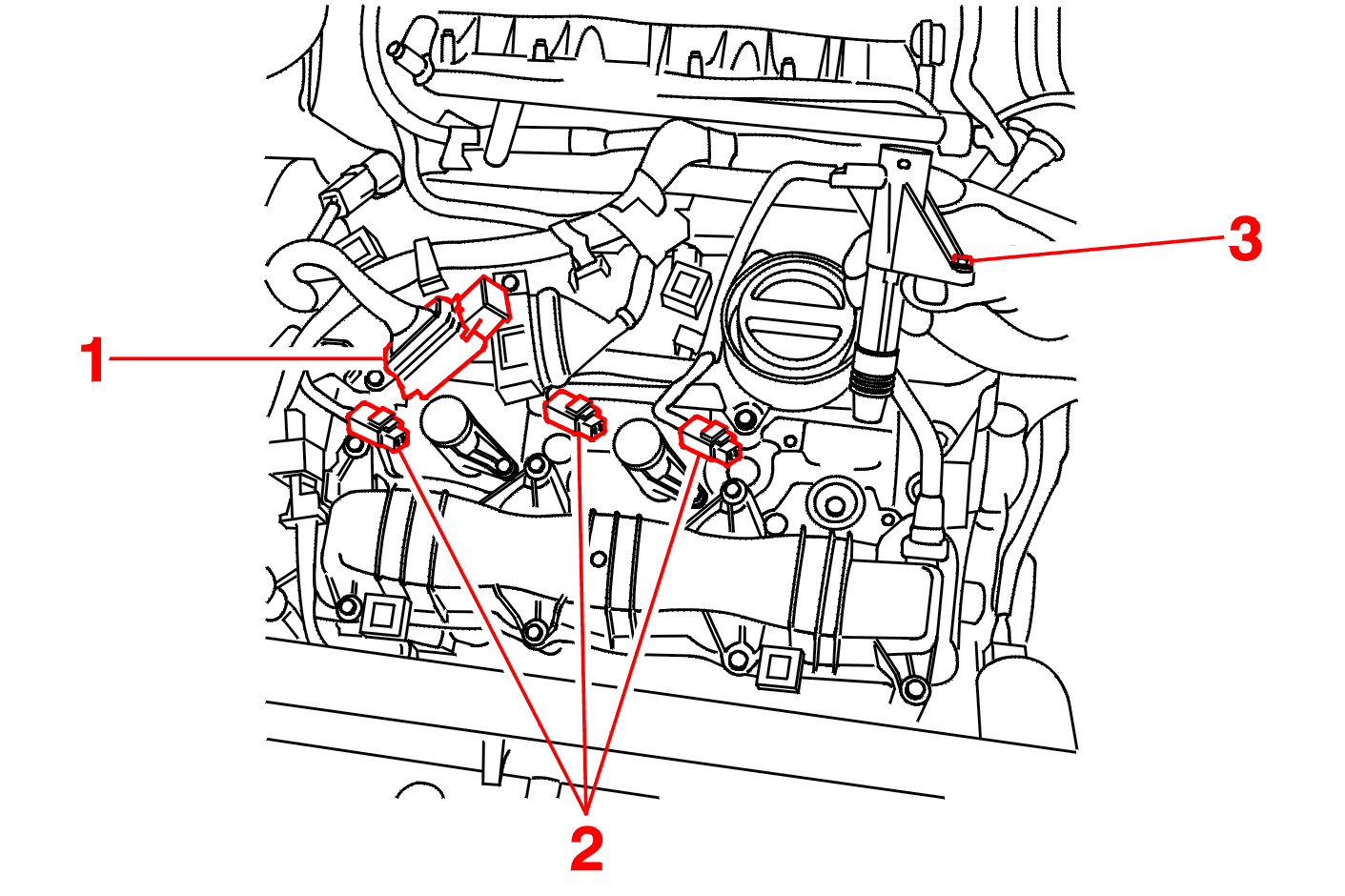

1 - 1 - FRONT PLUGS

remove the style cover .

Disconnect :

• the engine harness connector (1)
• the connectors (2)

Remove :

• the bolts (3)
• the coils
• the spark plugs

1 - 2 - REAR PLUGS

remove the inlet manifold .

Disconnect the connectors (4) .

Remove :

• the bolts (5)
• the coils
• the spark plugs

2 - REFITTING

Refit the plugs .

Tighten to the torque using a spanner of the FACOM D150.3 type ( Tightening torque 2,8 da.Nm) .

Refit the coils .

replace intake manifold .

Continue the fitting operations in the reverse order to removal .
