B2BB0QK1 - 406D9 BE3 GEARBOX BE3R GEARBOX BE4 GEARBOX

PRESENTATION TOOLING GEARBOX

1 - SPECIAL TOOLS


reference description reference reference

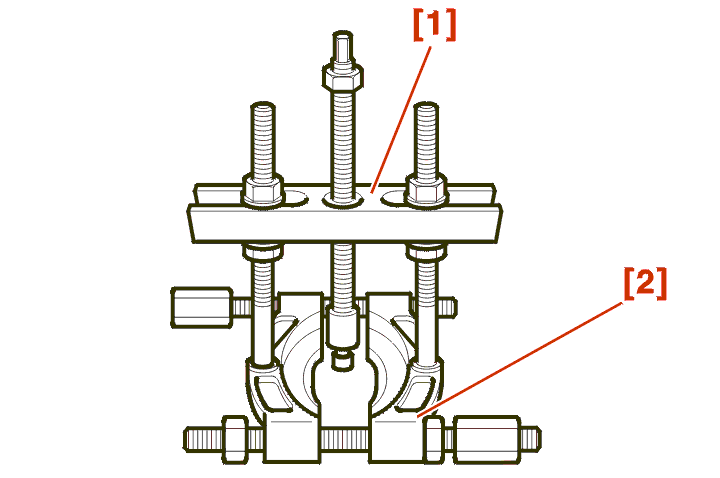

[1] universal extractor bridge piece FACOM U53 K2 4108 - T
[2] universal separator tool FACOM U53 T2 4108 - T


reference description reference reference

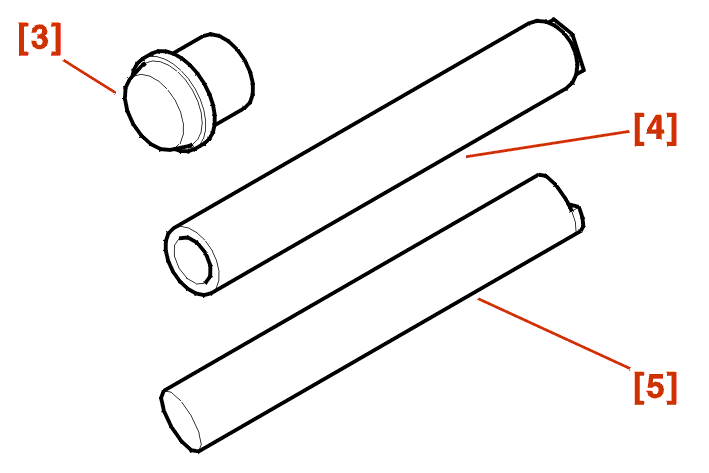

[3] drift for extracting and fitting the input shaft bearing (-).0317 - A
(-).0317 - AR		 7101 - TA
0317 - AR
[4] input shaft front and rear bearing and output shaft rear bearing fitting drift (-).0317 - F 7101 - TF
[5] 6th gear bearing removal drift (output shaft) (-).0317 - EZ 7101 - TE


reference description reference reference

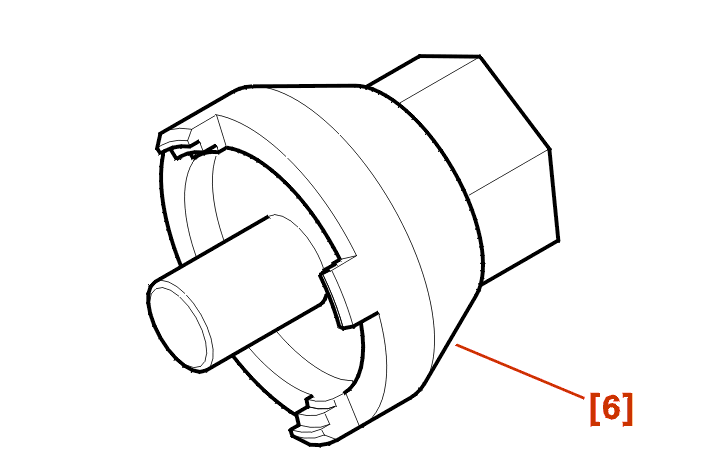

[6] input shaft nut removal-refitting sleeve (-).0317 - AN 317 - AN


reference description reference reference

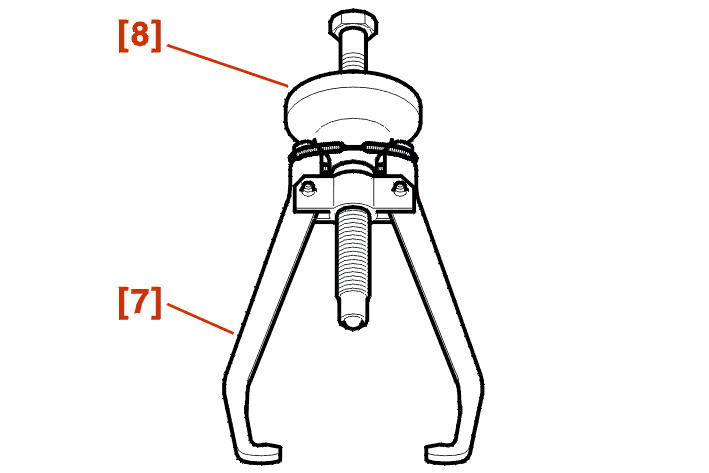

[7] 5th gear extractor claw (-).0331 - F 0331 - F
[8] extractor (-).0331 - A 5703 - T


reference description reference reference

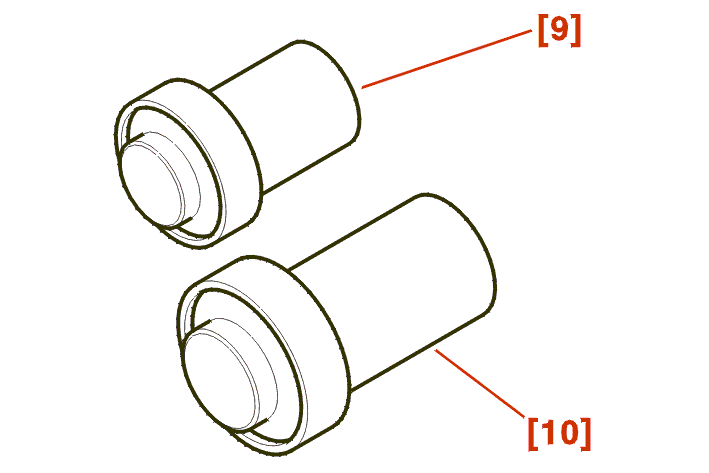

[9] fitting drift for final drive right-hand output oil seal (-).0317 - U 7114 - TX
[10] fitting drift for final drive left-hand output oil seal (-).0317 - T 7114 - TW


reference description reference reference

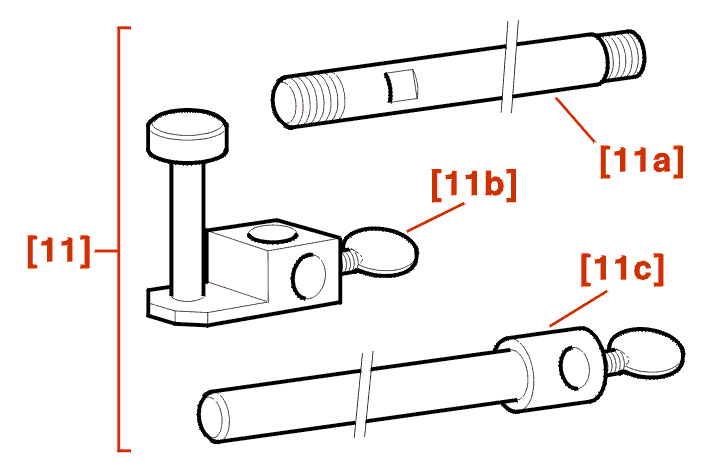

[11] dial gauge support assembly
[11a] dial gauge support rod (-).0317 - AP 0317 - AP
[11b] dial gauge support (-).0330 - V2 5708 - TV2
[11c] dial gauge support rod (-).0330 - V3 5708 - TV3


reference description reference reference

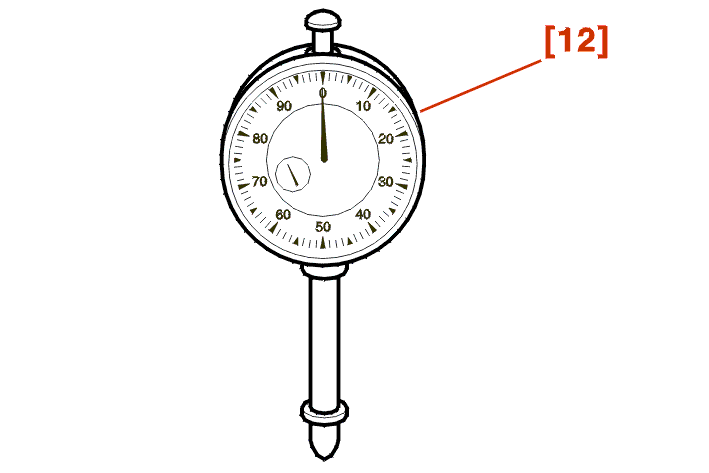

[12] dial gauge (-).1504 2437 - T


reference description reference reference

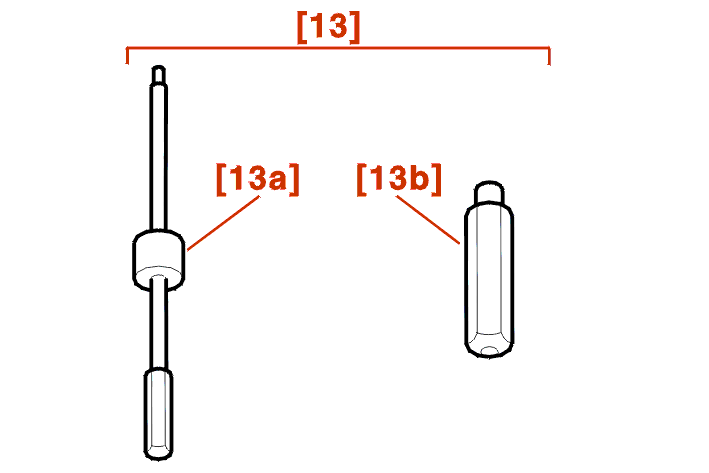

[13] slide hammer assembly
[13a] slide hammer (-).0316 - A 1671 - T
[13b] adaptor (-).0317 - V 7113 - TX


reference description reference reference

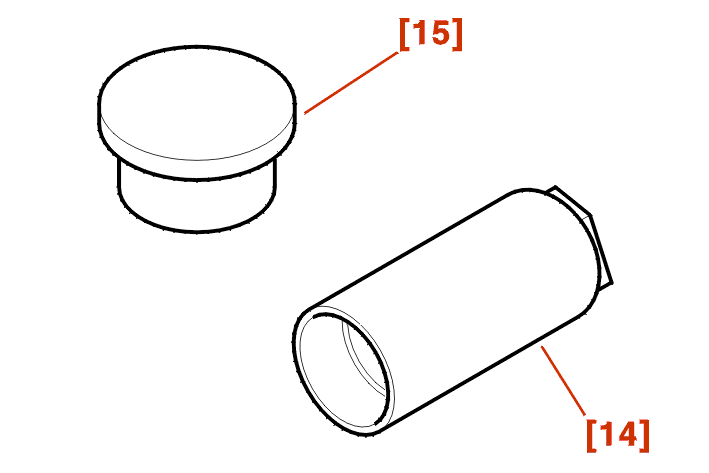

[14] differential bearing fitting tube (-).0317 - D 701 - TD
[15] thrust button (-).0317 - JZ 4508 - TI


reference description reference reference

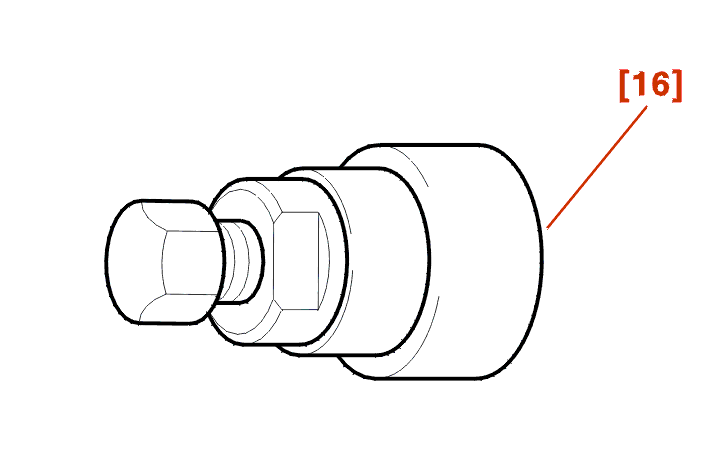

[16] 5th speed hub extractor (-).0317 - Y 7116 - E


reference description reference reference

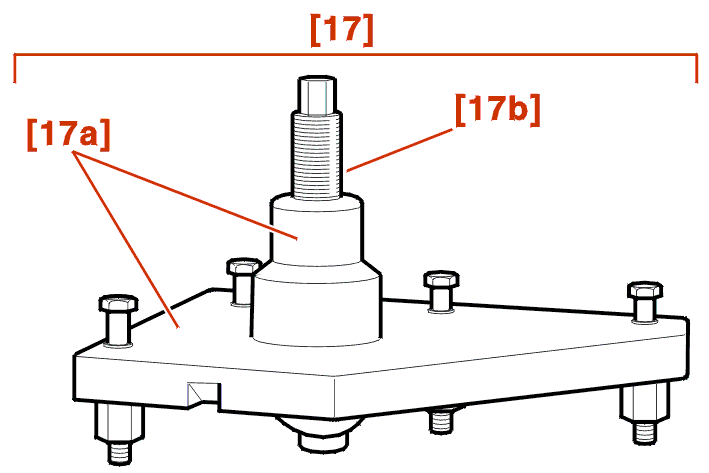

[17]
[17a]
[17b]		 pin fitting tool (-).0317 - AM 8013 - T.AM


reference description reference reference

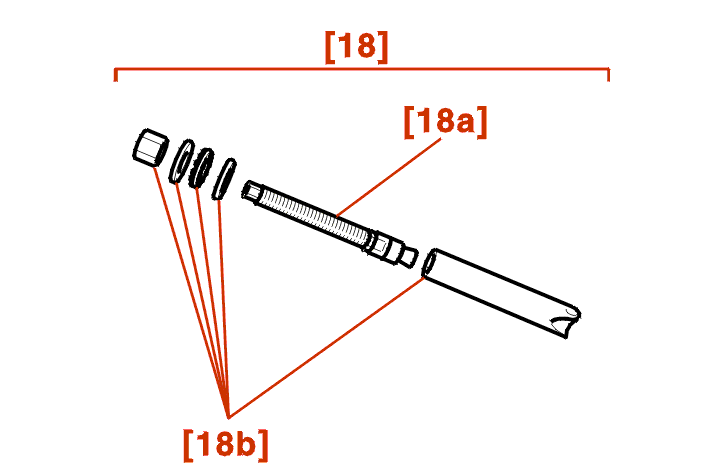

[18]
[18a]
[18b]		 gear lever pin extractor (-).0317 - AL 8013 - T.AL


reference description reference reference

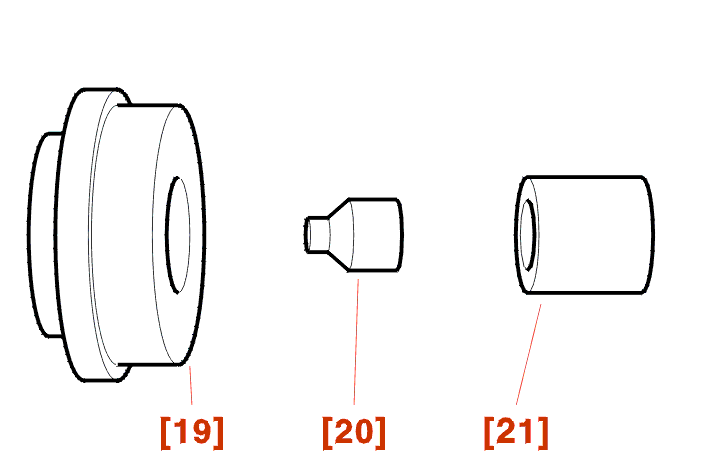

[19] fitting and removal drift for 6th gear bearing outer race in the 5th/6th housing (-).0317 - AE -
[20] thrust button (-).0317 - AF -
[21] input and output shaft bearing fitting drift (-).0317 - AH -


reference description reference reference

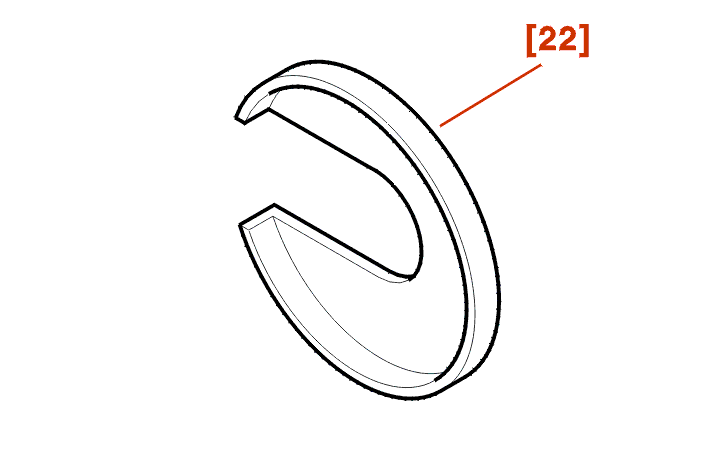

[22] thrust washer under pinion (-).0317 - AG -


reference description reference reference

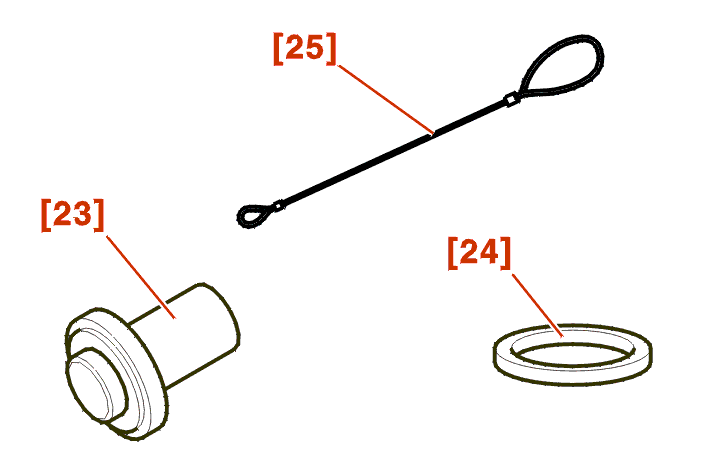

[23] input shaft oil seal fitting drift (-).0317 - W -
[24] basic shim (-).0317 - X -
[25] sling (-).0328 -


reference description reference reference

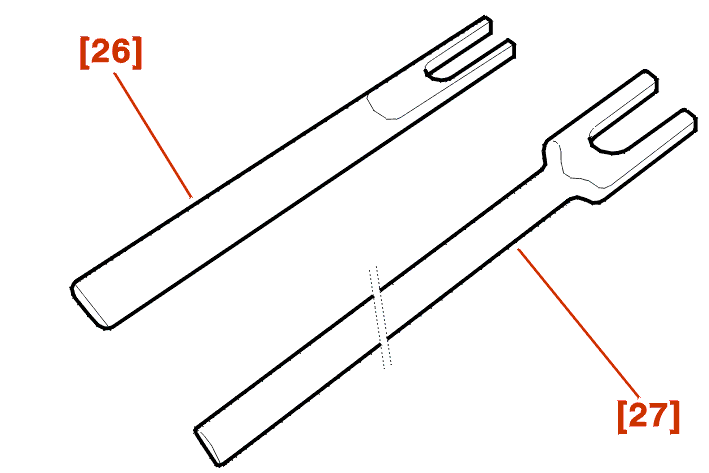

[26] tool for unclipping 10 dia. ball joints (-).0216-G1 -
[27] tool for unclipping 13 dia. ball joints (-).0216-G2 -


reference description reference reference

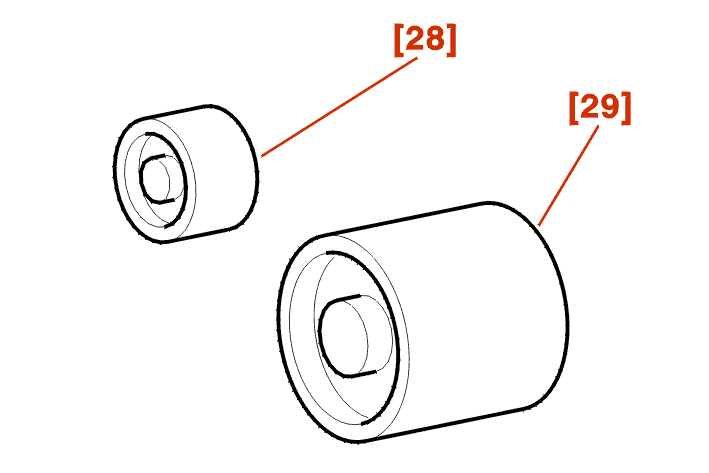

[28] fitting drift for final drive right-hand output oil seal (-).0317-U -
[29] fitting drift for final drive left-hand output oil seal (-).0317-T -


reference description reference reference

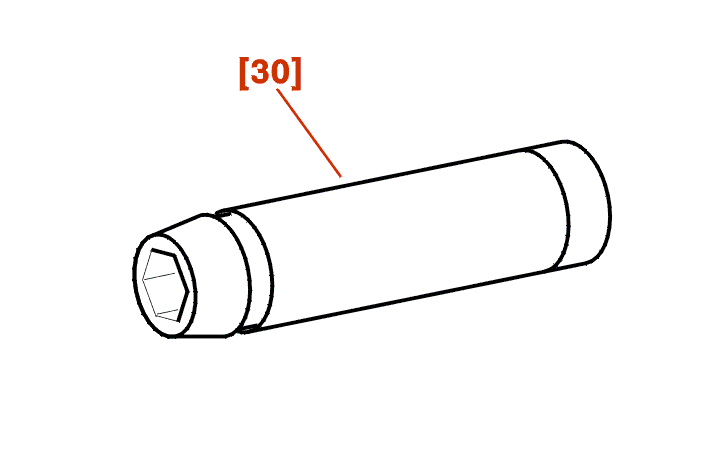

[30] gearbox pin removal-refitting socket (-).0317-AB -


reference description reference reference

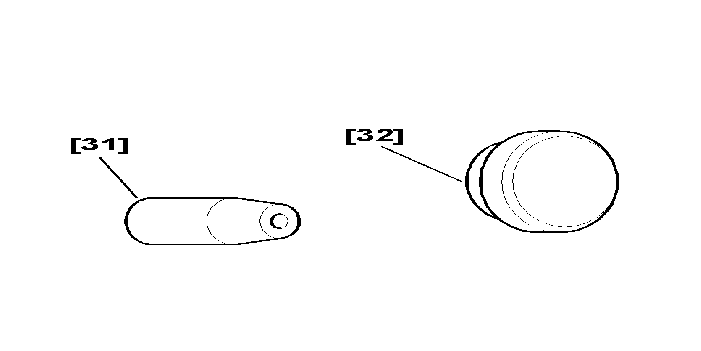

[31] final drive right-hand output oil seal fitting drift (four wheel drive) 7116 - TB (-).0326 - E
[32] protector 7116 - TC (-).0326 - F


reference description reference reference

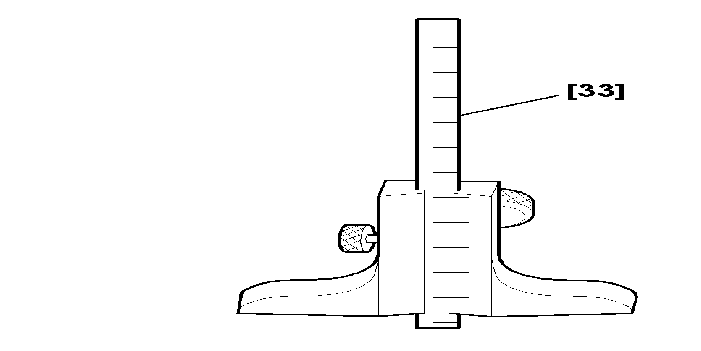

[33] depth gauge FACOM 811 FACOM 811


reference description reference reference
[34] three legged extractor FACOM U20 -


reference description reference reference
[35] locking tool (-).0526 - J 70902 - K
