B2CB1EK1 - 406D9 ML5T GEARBOX

IDENTIFICATION BREATHER ASSEMBLIES

1 - IDENTIFICATION

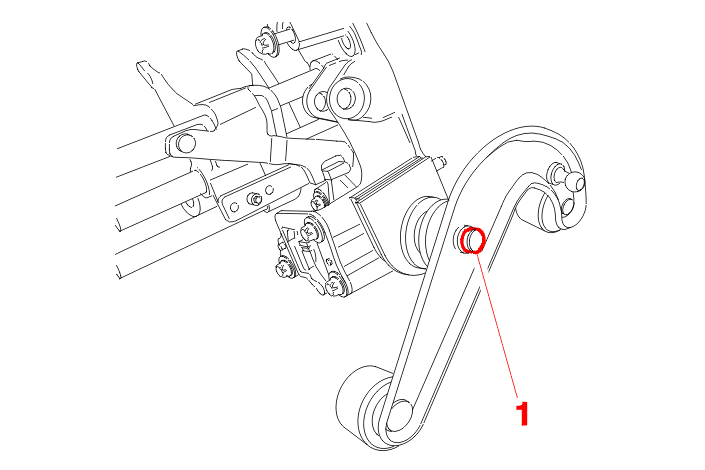

1 - 1 - UP TO LABEL NUMBER 11244

Gearboxes breathed through the gear engagement shaft .

Breather hole (1) .

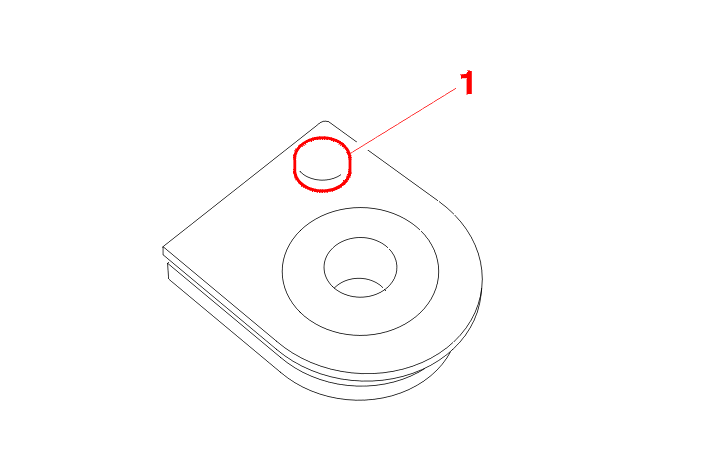

1 - 2 - FROM LABEL NUMBER 11245

The gearbox breathes through the seal .

Breather hole (1) .

2 - INTERCHANGEABILITY

Parts Div. will supply :

• seals with a breather
• engagement shafts without a breather

IMPERATIVE : when replacing parts, it is necessary to check that there is at least one breather: either in the shaft, in the seal or in both .
