B2CB1FK1 - 406D9 ML5T GEARBOX
PRESENTATION TOOLING GEARBOX
1 - SPECIAL TOOLS
| reference | description | reference | reference |
|---|---|---|---|

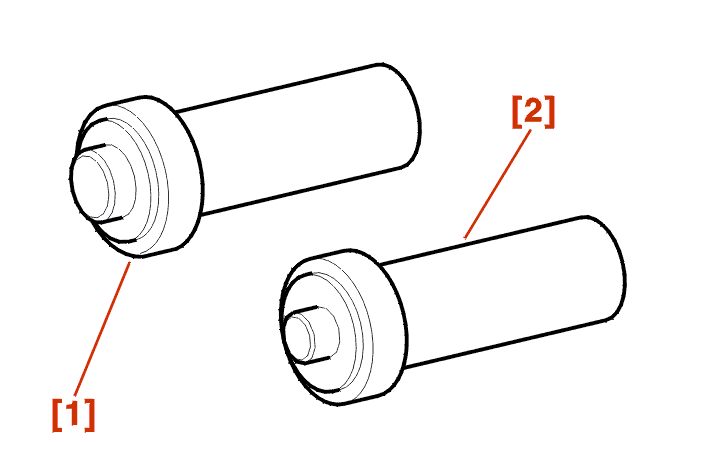

| [1] | differential seal fitting drift (left side) |
(-).0332 A | 5701-T.A |
| [2] | differential seal fitting drift (right side) |
(-).0332 B | 9017-T.C |
| reference | description | reference | reference |
|---|---|---|---|

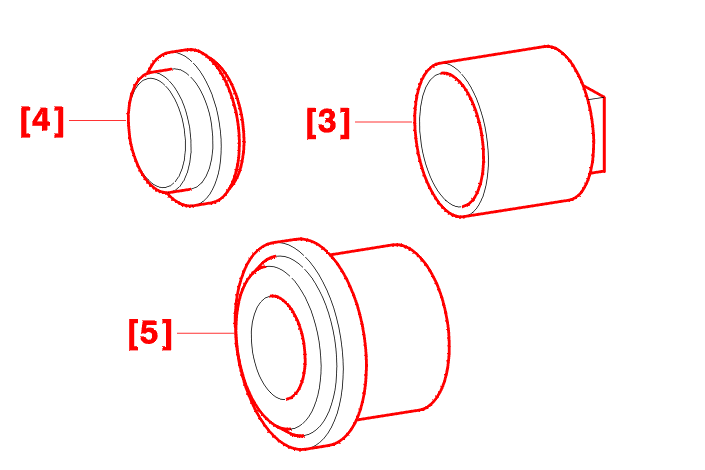

| [3] | differential bearing fitting tube | (-).0332 C | 9017-T.G |
| [4] | thrust button | (-).0332 D | 9017-T.P |
| [5] | input shaft bearing outer race fitting drift (5 th side) |
(-).0332 E | 5708-T.E |
| reference | description | reference | reference |
|---|---|---|---|

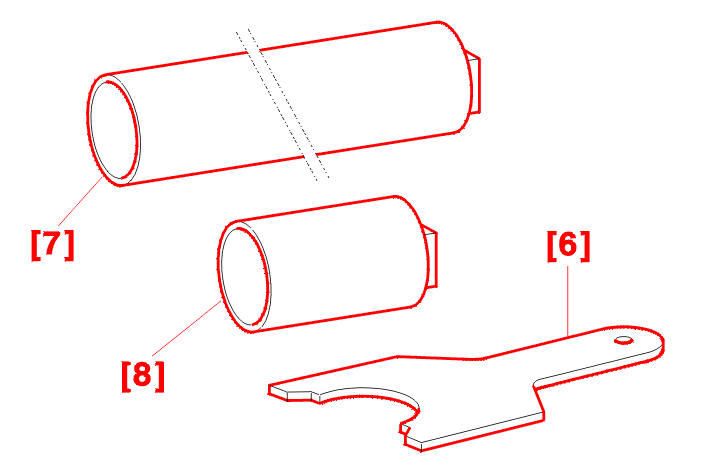

| [6] | lock ring removal tool | (-).0332 F | 5708-T.N |
| [7] | output shaft bearing fitting tube (differential end) | (-).0332 G | 5708-T.P |
| [8] | input shaft bearing inner race fitting tube (5 th side) |
(-).0332 H | 5708-T.Q |
| reference | description | reference | reference |
|---|---|---|---|

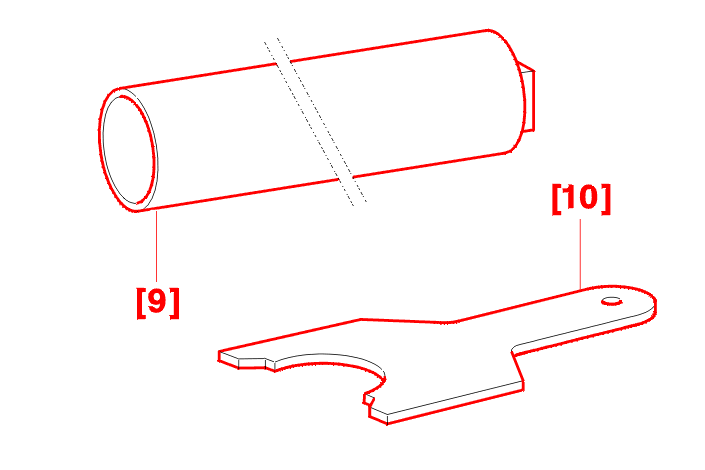

| [9] | input shaft bearing inner race fitting tube (1st gear side) |
(-).0332 J | 5708-T.R |
| [10] | lock ring removal tool | (-).0332 K | 8009-T.E |
| reference | description | reference | reference |
|---|---|---|---|

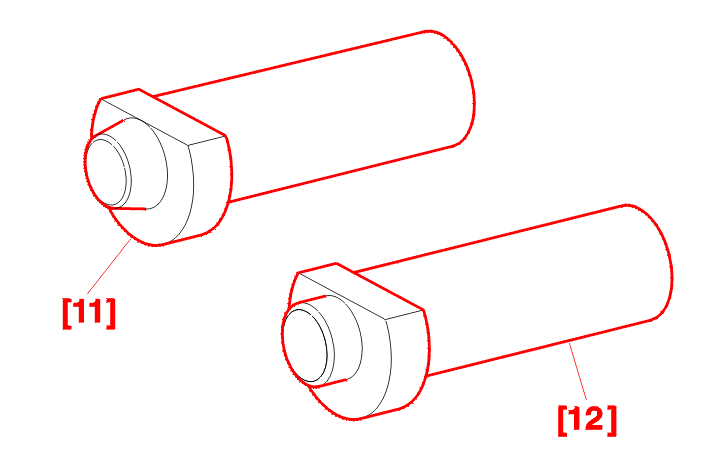

| [11] | fork shaft fitting tool | (-).0332 L | 5708-T.D |
| [12] | needle roller bearing fitting tool | (-).0332 M | 5708-T.D |
| reference | description | reference | reference |
|---|---|---|---|

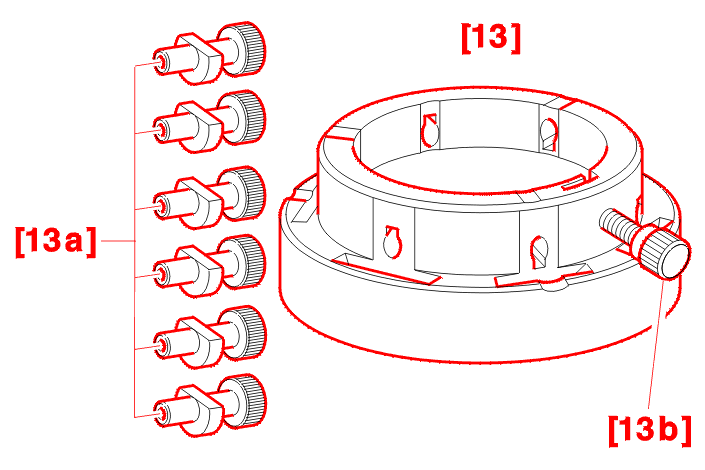

| [13] | synchroniser assembly ring (1st - 2nd speed) |
(-).0332 N | 8009-T.F |
| [13a] | synchroniser tappet | - | - |
| [13b] | synchroniser hub retaining bolt | - | - |
| reference | description | reference | reference |
|---|---|---|---|

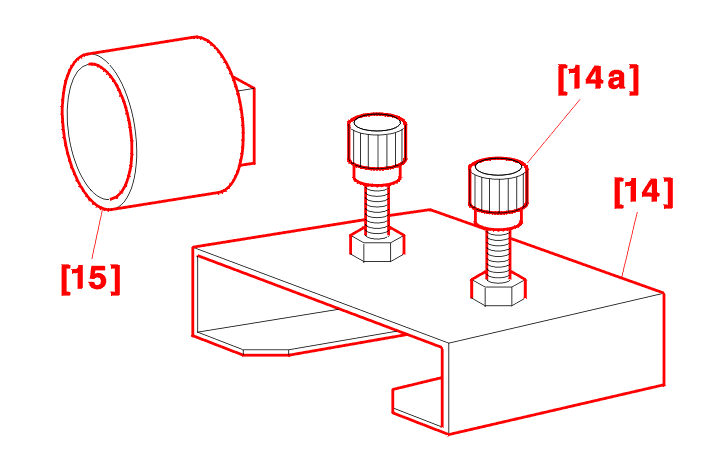

| [14] | 5th gear synchroniser retaining tool | (-).0330-B | 5708-T.B |
| [14a] | - | - | - |
| [15] | differential bearing fitting tool (right and left side) |
(-).330-T | 5708-T.T |
| reference | description | reference | reference |
|---|---|---|---|

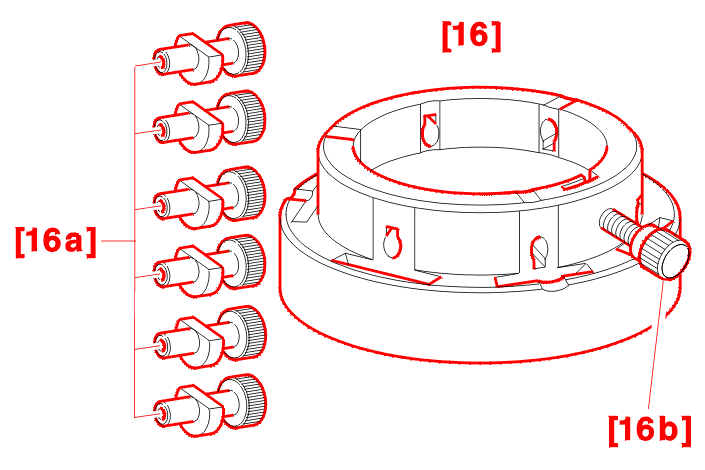

| [16] | synchroniser assembly ring (3rd - 4th -speed) (5th gear) |
(-).0330 X | 5708-T.X |
| [16a] | synchroniser tappet | - | - |
| [16b] | synchroniser hub retaining bolt | - | - |
| reference | description | reference | reference |
|---|---|---|---|

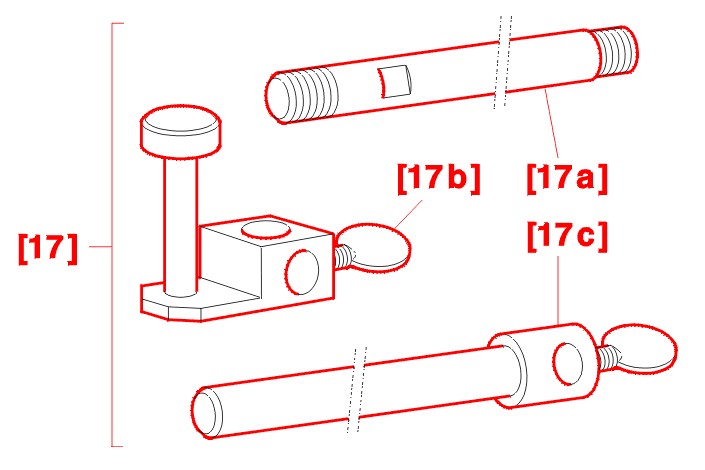

| [17] | dial gauge support assembly | (-).330-V | 5708-T.V |
| [17a] | dial gauge support rod | (-).330-V1 | 5708-T.V1 |
| [17b] | dial gauge support | (-).330-V2 | 5708-T.V2 |
| [17c] | dial gauge support rod | (-).330-V3 | 5708-T.V3 |
| reference | description | reference | reference |
|---|---|---|---|

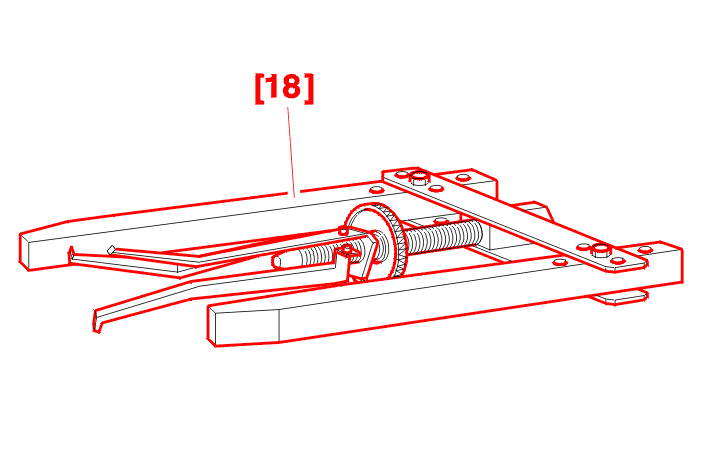

| [18] | differential bearing outer race extractor | (-).0330 F | 5703-T |
| reference | description | reference | reference |
|---|---|---|---|

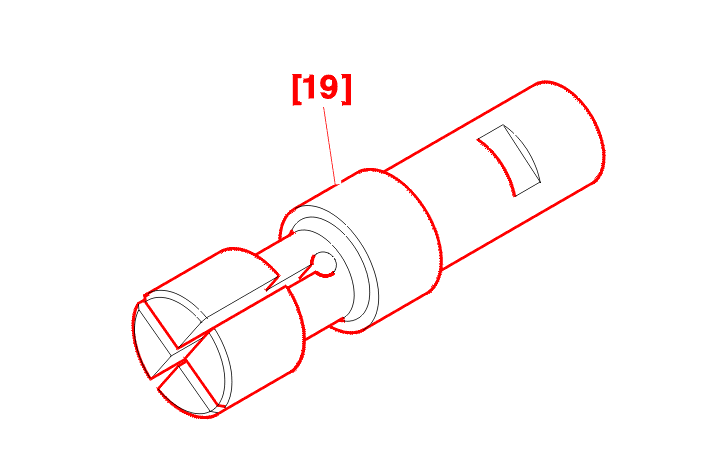

| [19] | expanding mandrel | (-).0327 AA | 5701-T.C |
| reference | description | reference | reference |
|---|---|---|---|

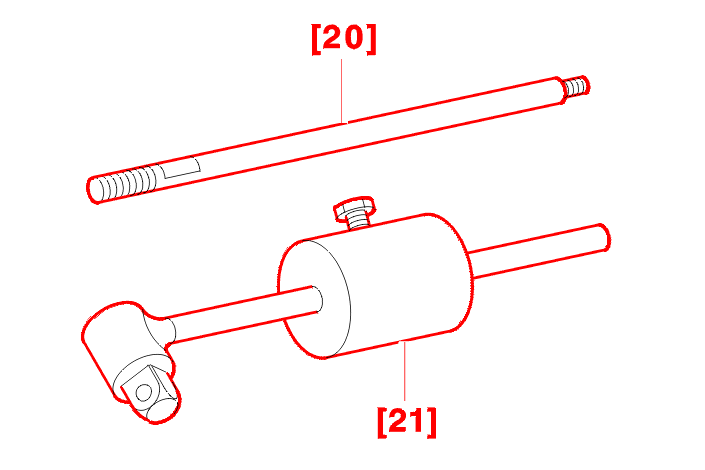

| [20] | dial gauge support rod (ME5TU) |
(-).0327 AC | 5701-T.D |
| [21] | drive torque checking tool (ME5TU) |
(-).0327 AB | 5701-T.E |
| reference | description | reference | reference |
|---|---|---|---|

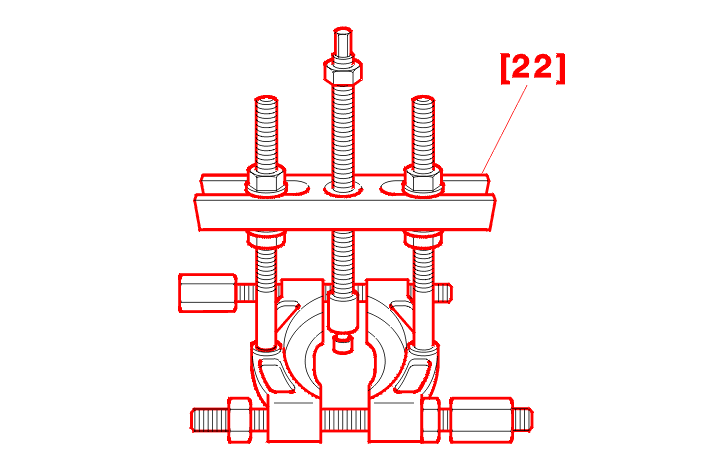

| [22] | universal extractor | FACOM U53 K2+T2 | 4108-T |
| reference | description | reference | reference |
|---|---|---|---|

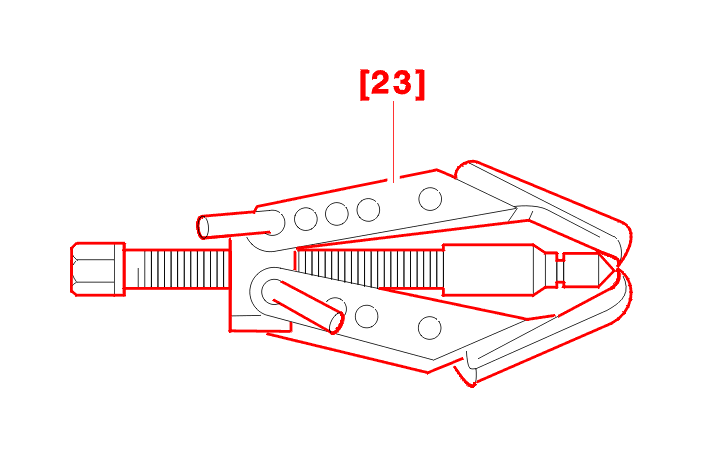

| [23] | extractor | FACOM U301 | 6339-T |
| reference | description | reference | reference |
|---|---|---|---|
| [24] | dial gauge | (-).1504 | kit 4123-T |
