B2CB1WK1 - 406D9 4HP20 AUTOMATIC GEARBOX

DATA - IDENTIFICATION GEARBOX CONTROLS

The automatic gearbox is controlled by a cable, non-adjustable .

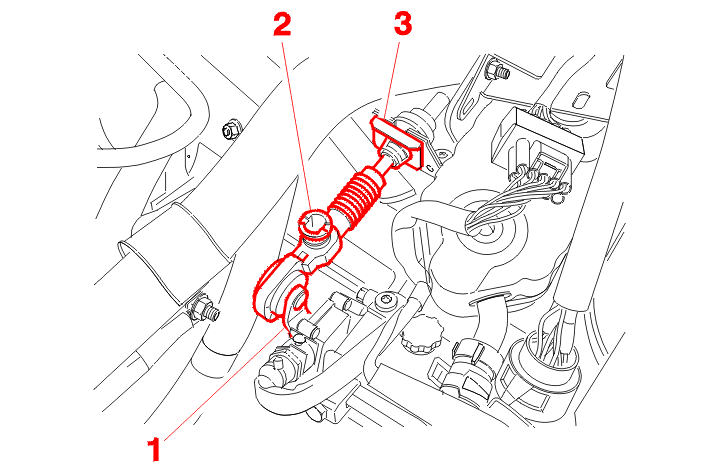

Assembly on the automatic gearbox :

• (1) relay lever with ball joint
• (2) automatic adjustment
• (3) cover stop

NOTE : when clipping the control cable, the selection lever (1) must be against the top stop (position P) .
