B2CB3DK1 - 406D9 BE4 GEARBOX

IDENTIFICATION OF TIGHTENING TORQUES GEARBOX CONTROLS

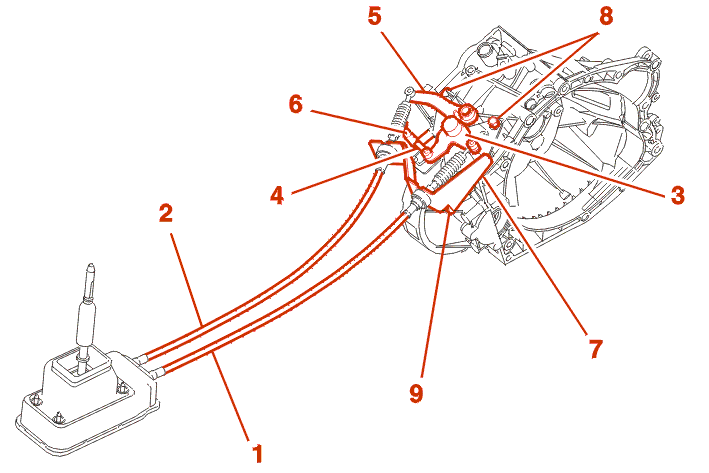

1 - IDENTIFICATION

(1) Gear change cable .

(2) Selection cable .

(3) Gear change relay lever .

(4) Engagement rod .

(5) Selector lever .

(6) Engagement lever .

(7) Gearbox control plate .

2 - TIGHTENING TORQUE(S)

Bolt(s) (8) : 2 da.Nm .

Bolt(s) (9) : 1.5 da.Nm .

Lubricate the shafts and ball joints with ESSO NORVA 275 grease .
