B2CB3TK1 - 406D9 4HP20 AUTOMATIC GEARBOX
IDENTIFICATION - DATA AUTOMATIC GEARBOX
1 - IDENTIFICATION

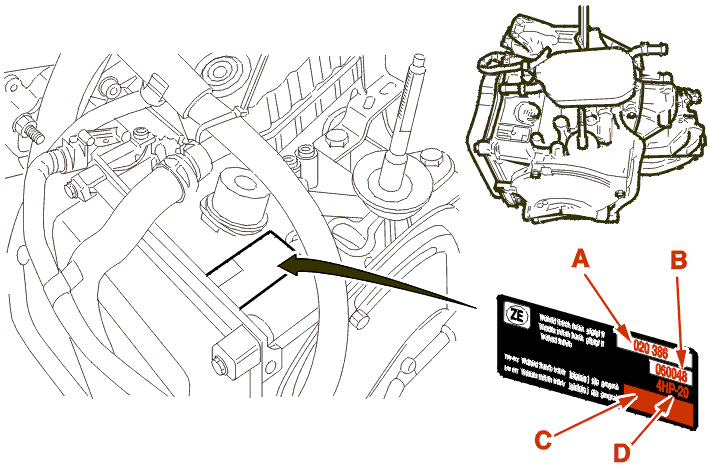

The identification of the automatic gearbox is ensured by a plate riveted to the gearbox casing :
4HP20 AUTOMATIC GEARBOX
ZF (B) reference number | unit reference (C) | hydraulic block number (F) |
---|---|---|
1019000015 | 20HZ04 | 1019198312 |

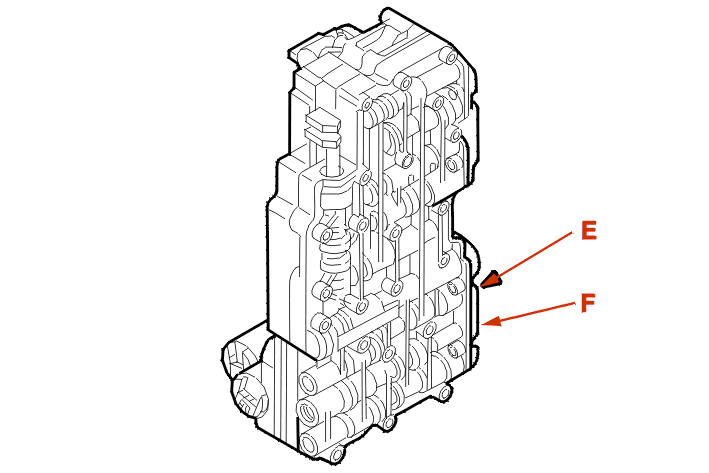

Identification of the hydraulic block is by engraving :
2 - DATA
Weight : 90 kg (Approximately) .
Torque capacity : 330 Nm .
Gearbox ratios (Epicyclic gear outlet) :
final drive ratio | reduction gear | speedometer ratio | converter torque | |
---|---|---|---|---|
ES9J4 | 20 x 69 | 61 x 66 | 20 x 16 | 172 Nm |
ES9J4S | 20 x 69 | 61 x 66 | 20 x 16 | 172 Nm |
