B2CG15K1 - 406D9 4HP20 AUTOMATIC GEARBOX

REMOVAL - REFITTING SPEEDOMETER DRIVE

1 - REMOVAL

Remove the heat protection sleeve .

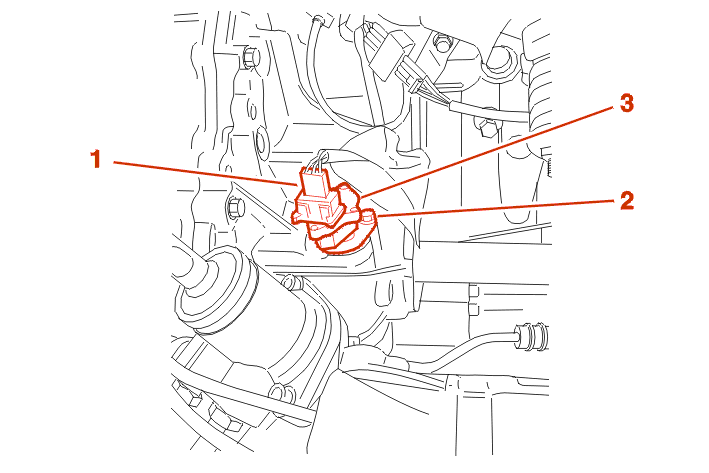

Disconnect the connector (1) .

Remove :

• the securing bolt (2)
• the speedometer pinion (3)

WARNING : do not let the gear fall to the bottom of the casing .

2 - REFITTING

Proceed in the reverse order to removal .
