B2CG1FK1 - 406D9 AL4 AUTOMATIC GEARBOX

REMOVAL - REFITTING GEARBOX CONTROLS

1 - REMOVAL

Remove :

• the air cleaner assembly

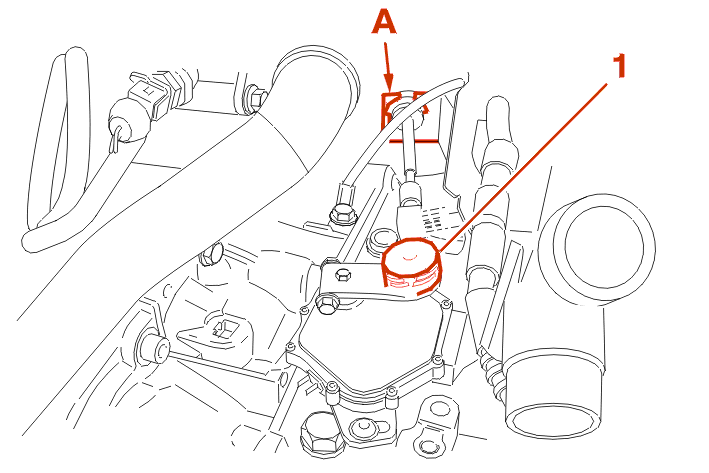

• the ball joint (1) ; using the tool [6]
• the clip (en A)

Remove :

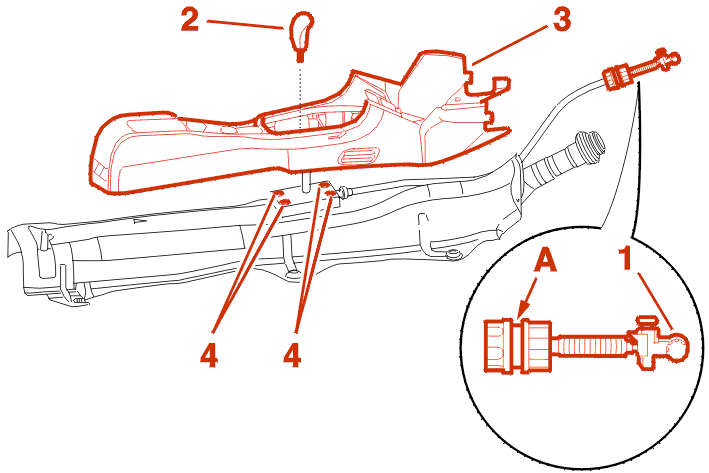

• the gear lever knob (2) (clipped)
• the central console (3)

The bolts (4) .

Raise the vehicle .

Remove :

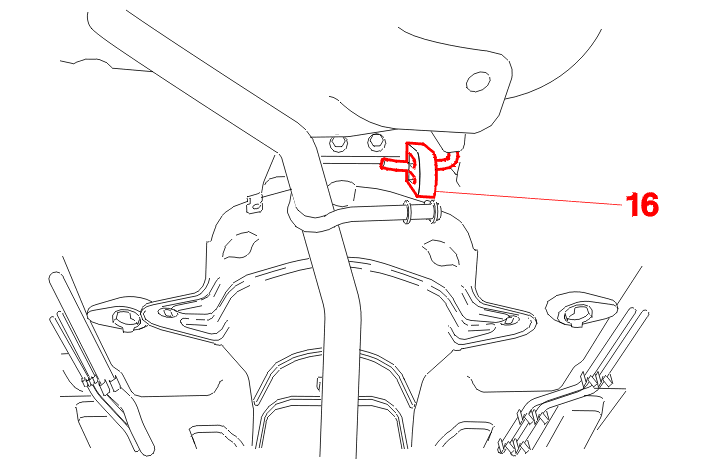

• the exhaust hanger (16)
• the mountings for the heat shield

Move the heat shield as far back as possible .

Remove the gear lever assembly .

2 - REFITTING

Proceed in the reverse order to removal .

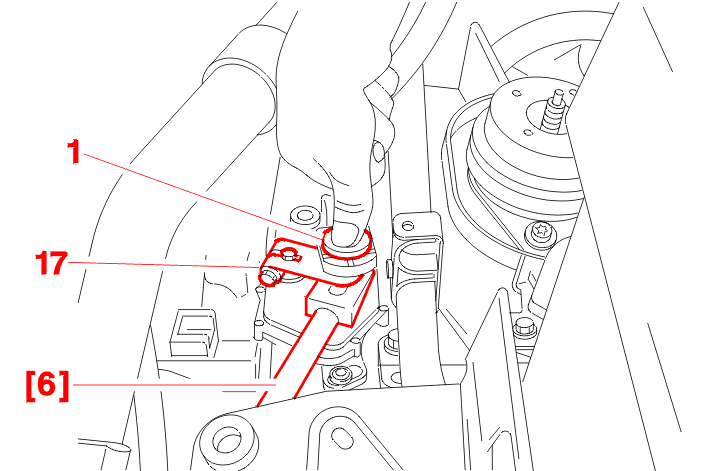

IMPERATIVE : to fasten the ball joint (1), place a stop under the gear selection lever (17) (e.g. tool [6]) .

adjust the gear lever (new or incorrectly adjusted lever) (If necessary) .
