B2CG77K1 - 406D9 AL4 AUTOMATIC GEARBOX

REMOVAL - REFITTING GEARBOX OUTPUT SPEED SENSOR

1 - REMOVAL

NOTE : do not drain the gearbox .

Disconnect the battery + terminal .

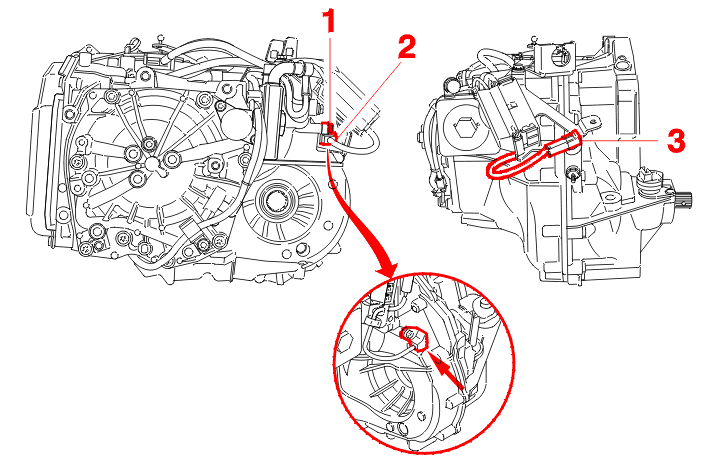

WARNING : the connector mounting (3) is fragile .

Remove :

• the front left-hand wheel
• the bolt (1)
• automatic gearbox output speed sensor (2)
• the connector (3)

2 - REFITTING

Replace the sensor o ring (2) .

Fit :

• the connector (3)
• automatic gearbox output speed sensor (2)
• the bolt (1) (tightening torque 1 da.Nm)
• the front left-hand wheel

Reconnect the positive terminal of the battery .
