B2CH0AK1 - 406D9 4HP20 AUTOMATIC GEARBOX

REPLACEMENT DRIVE SHAFT SEALS

1 - SPECIAL TOOLS

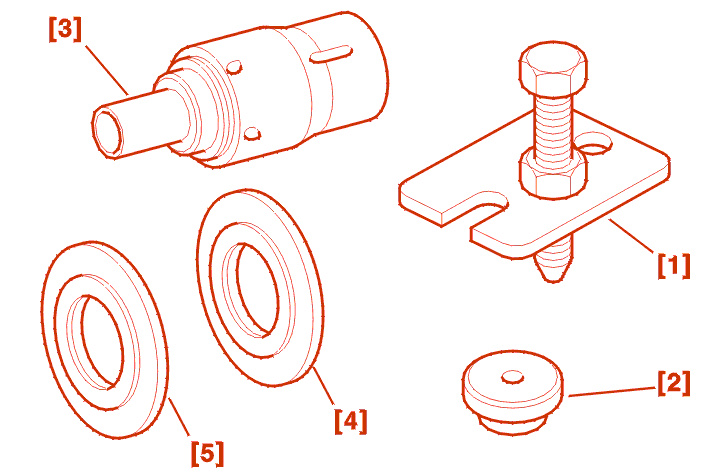

[1] - Tool for removing drive shaft seal Reference: (-).0336-C .

[2] - Support plate Reference: (-).0336-D .

[3] - Tool for fitting drive shaft seal Reference: (-).0336-J1/J2 .

[4] - Black ring for refitting the left hand drive shaft seal Reference: (-).0336-K2 .

[5] - White ring for fitting the right hand drive shaft seal Reference: (-).0336-K1 .

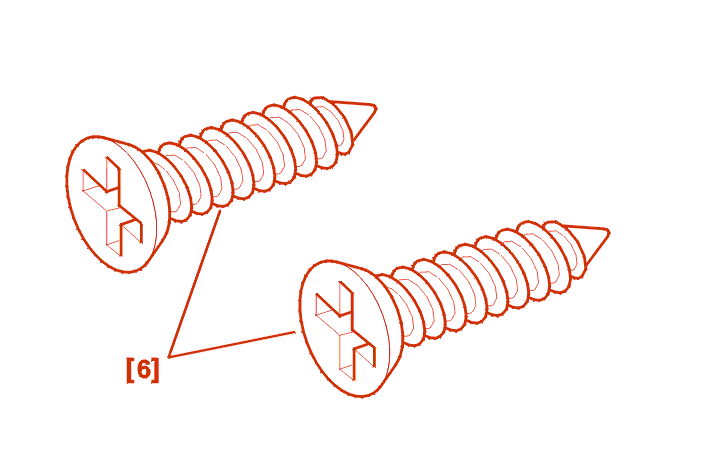

[6] - 2 cross-head screws 4,5 x 60 for use with the tool [1] .

2 - REMOVAL

Remove the drive shafts .

Pre-drill the seal using the tool [1] as a template .

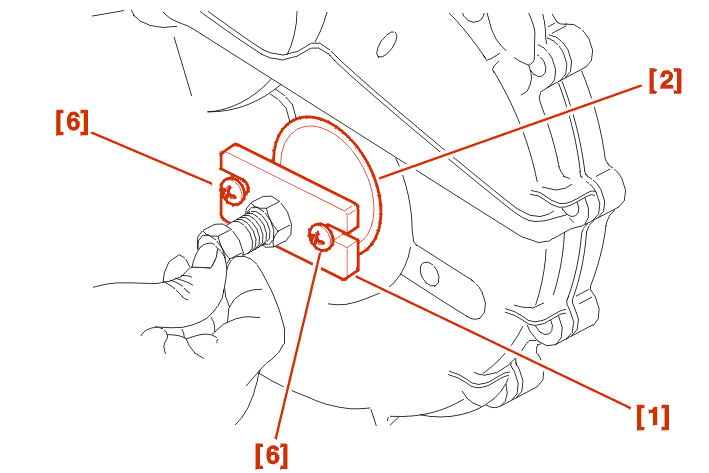

Extract the drive shaft seal using the tools [1] and [2] and the 2 cross-head screws [6] .

3 - REFITTING

Oil the seal .

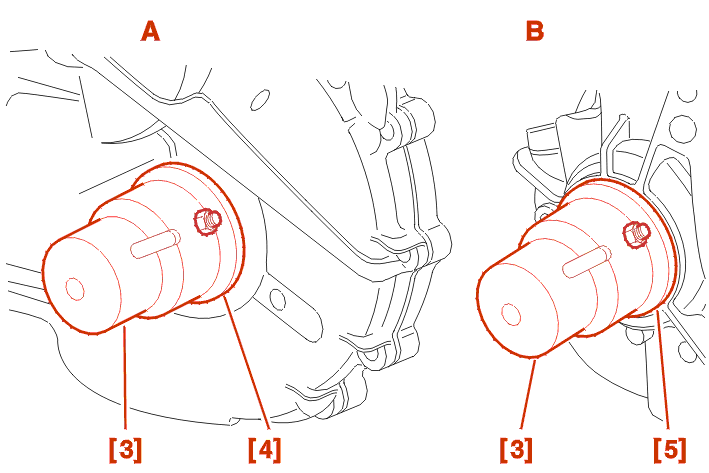

On the left-hand side : (A) .

On the right-hand side : (B) .

Fit the new seal to the tool [3] fitted with ring [4] or [5] depending on the side .

Offer up the assembly and fit the seal using a mallet .
