B2CH0LK1 - 406D9 4HP20 AUTOMATIC GEARBOX

REPLACEMENT AUTOMATIC GEARBOX FLUID TEMPERATURE SENSOR

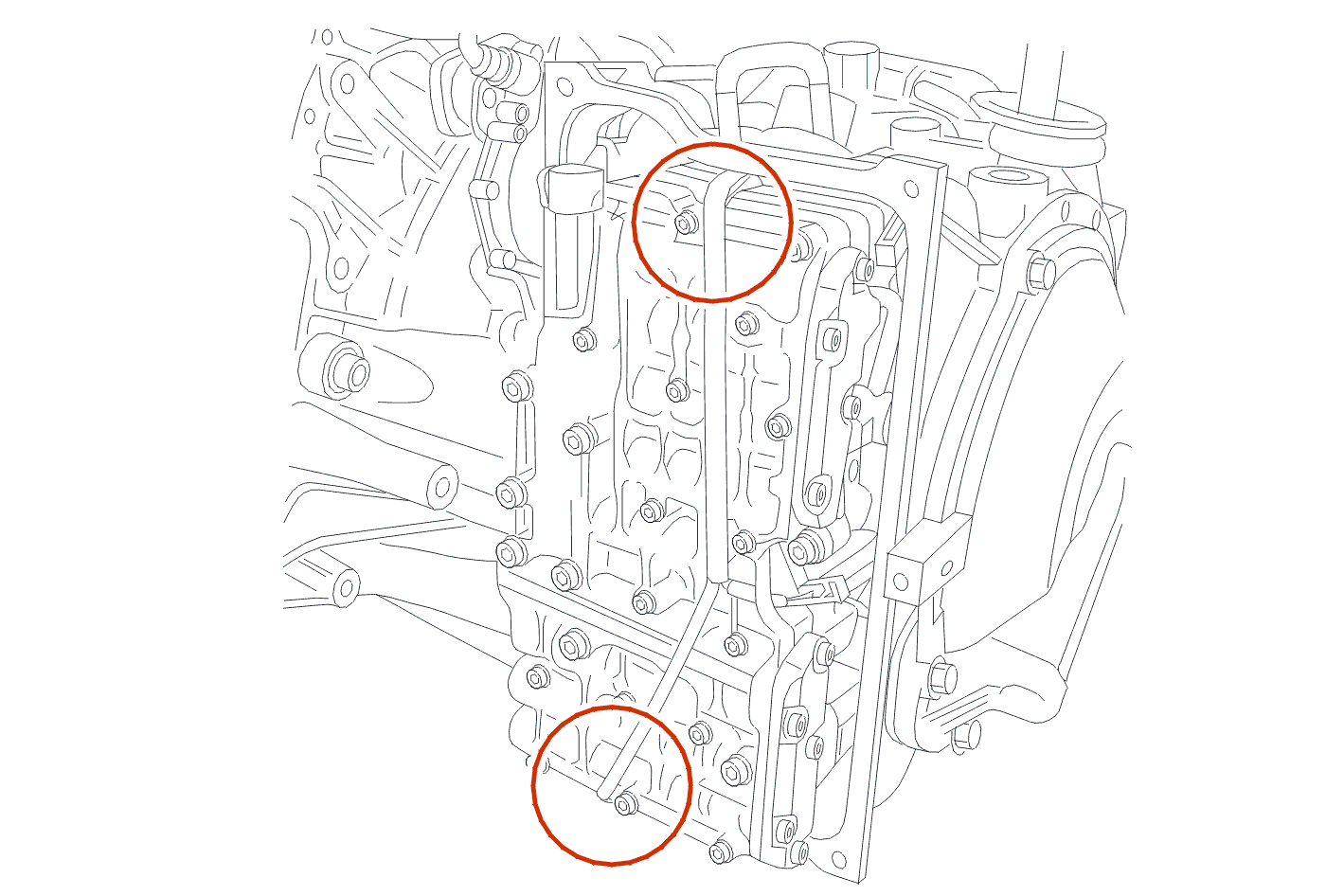

IN ORDER TO CARRY OUT WORK ON THE AUTOMATIC GEARBOX FLUID TEMPERATURE SENSOR, REMOVE THE HYDRAULIC BLOCK .

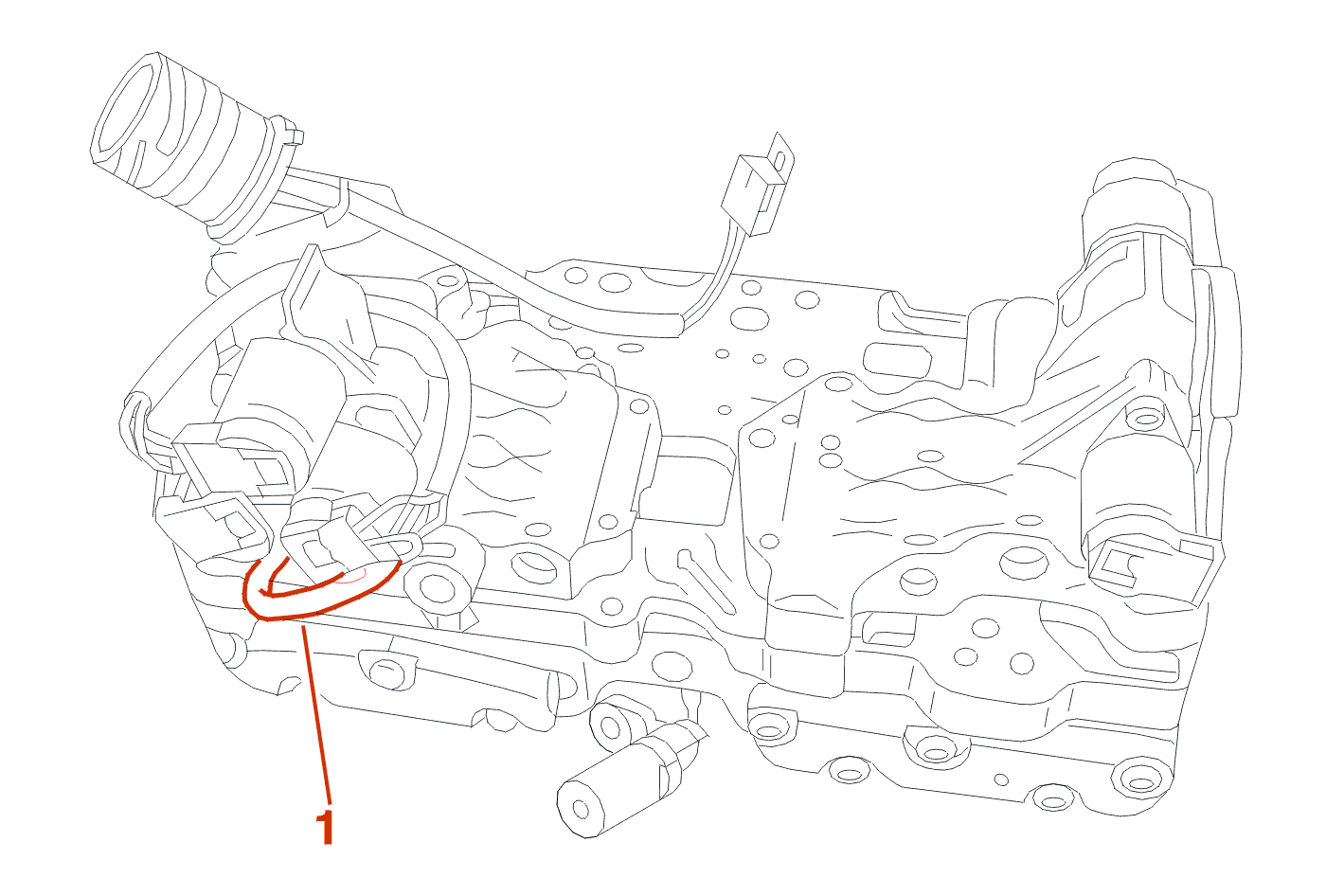

(1) Fluid temperature sensor .

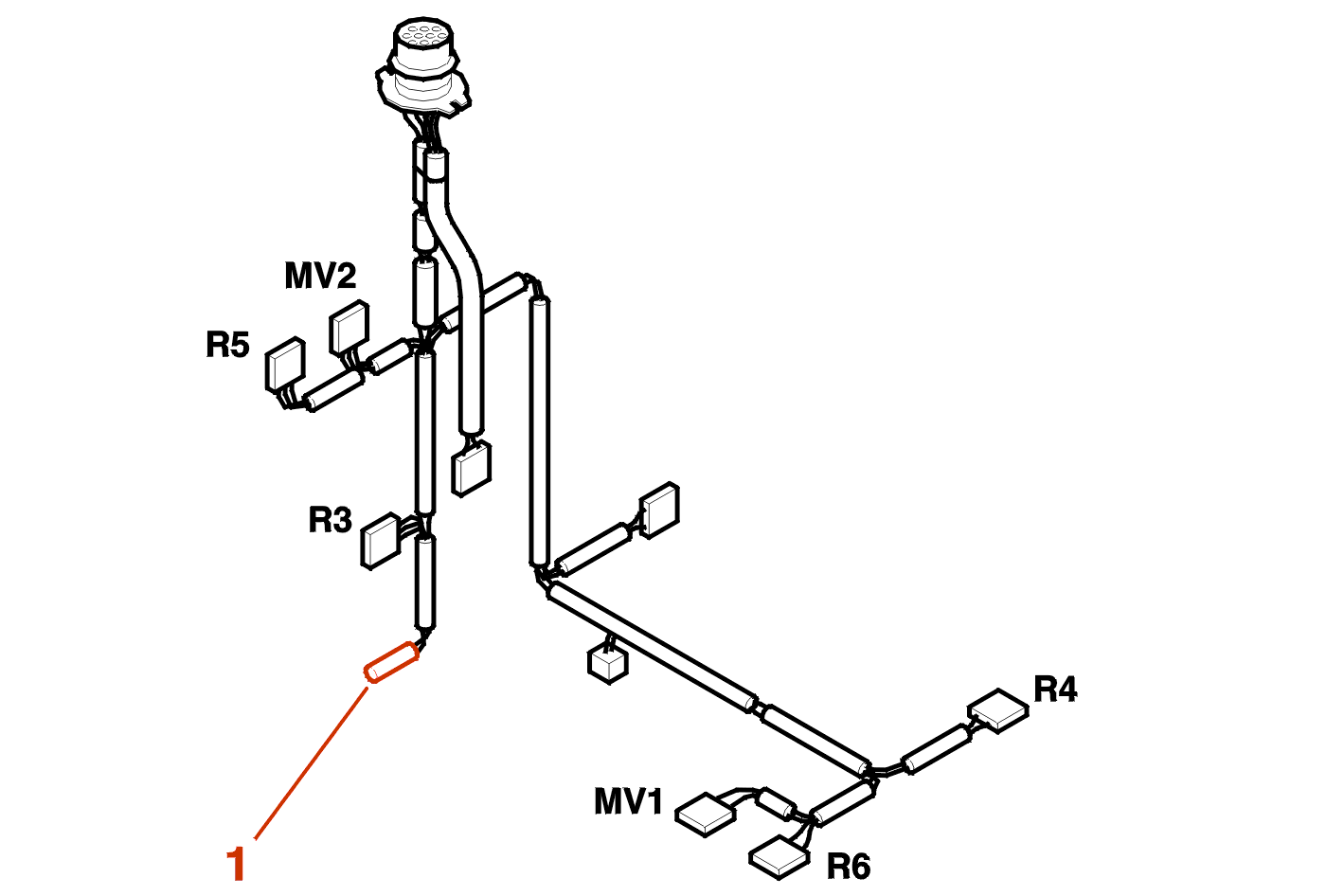

To replace the fluid temperature sensor (1), the entire hydraulic block electrical harness assembly must be replaced .

When refitting the harness, ensure that it is routed correctly and positioned correctly in the sheaths to prevent crushing on refitting of the hydraulic block .

THEN REFIT THE HYDRAULIC BLOCK .
