B2CJ0IK1 - 406D9 ML5T GEARBOX

REFITTING GEARBOX CASING

1 - PRELIMINARY OPERATIONS

Adjusting the input shaft end float .

Fit :

• input and output shafts
• gearbox control plate

2 - REFITTING

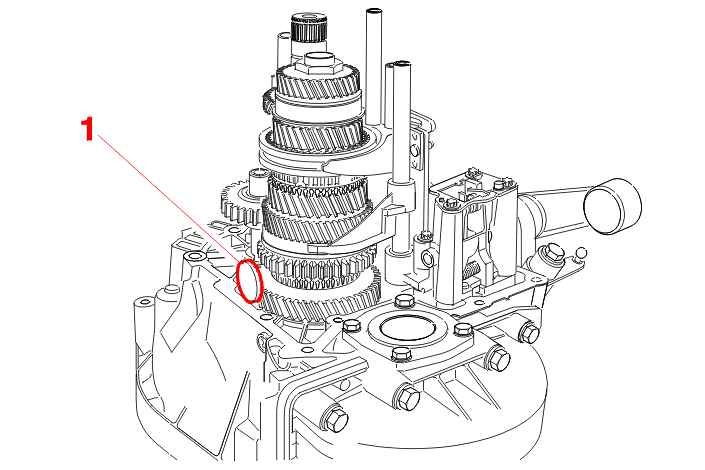

Fit the magnetic disc (1) .

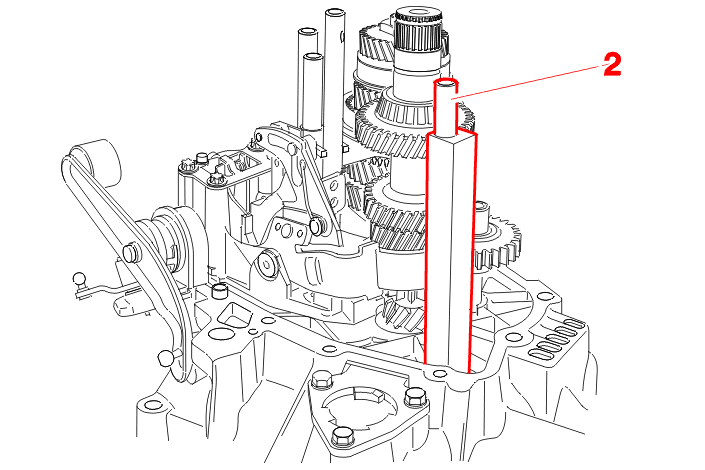

Fit the oil neck (2) .

Coat the joint face (auto-joint OR) with a thin, even layer of jointing compound .

Place a screwdriver in the filler hole as a guide .

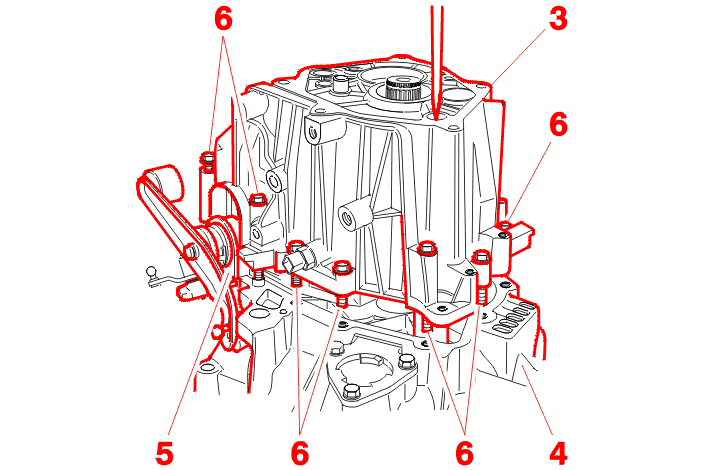

Fit the gearbox cover (3) on the clutch housing (4) .

Push the selector rod seal (5) well in without striking it .

Tighten the bolts (6) to 2 daN.m .

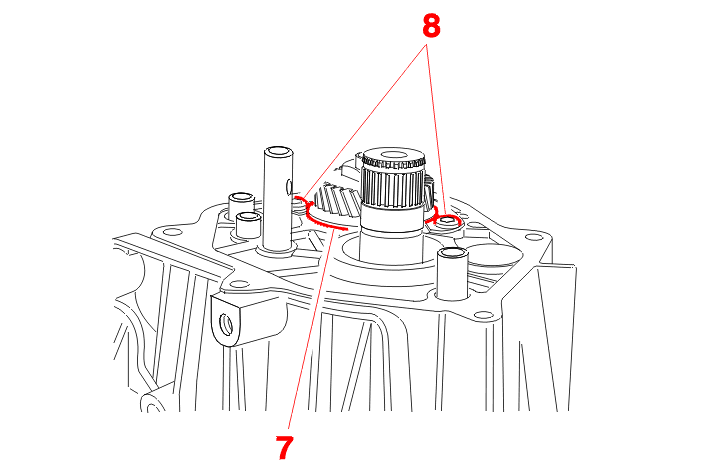

Fit :

• the stop ring (7)
• the 2 securing bolts (8) (new bolts)
• tighten the bolts (8) to 2 daN.m
