B2CJ0LK1 - 406D9 ML5T GEARBOX

REMOVAL GEARBOX CASING

1 - PRELIMINARY OPERATIONS

REMOVE THE GEAR FOR 5 TH SPEED .

Remove :

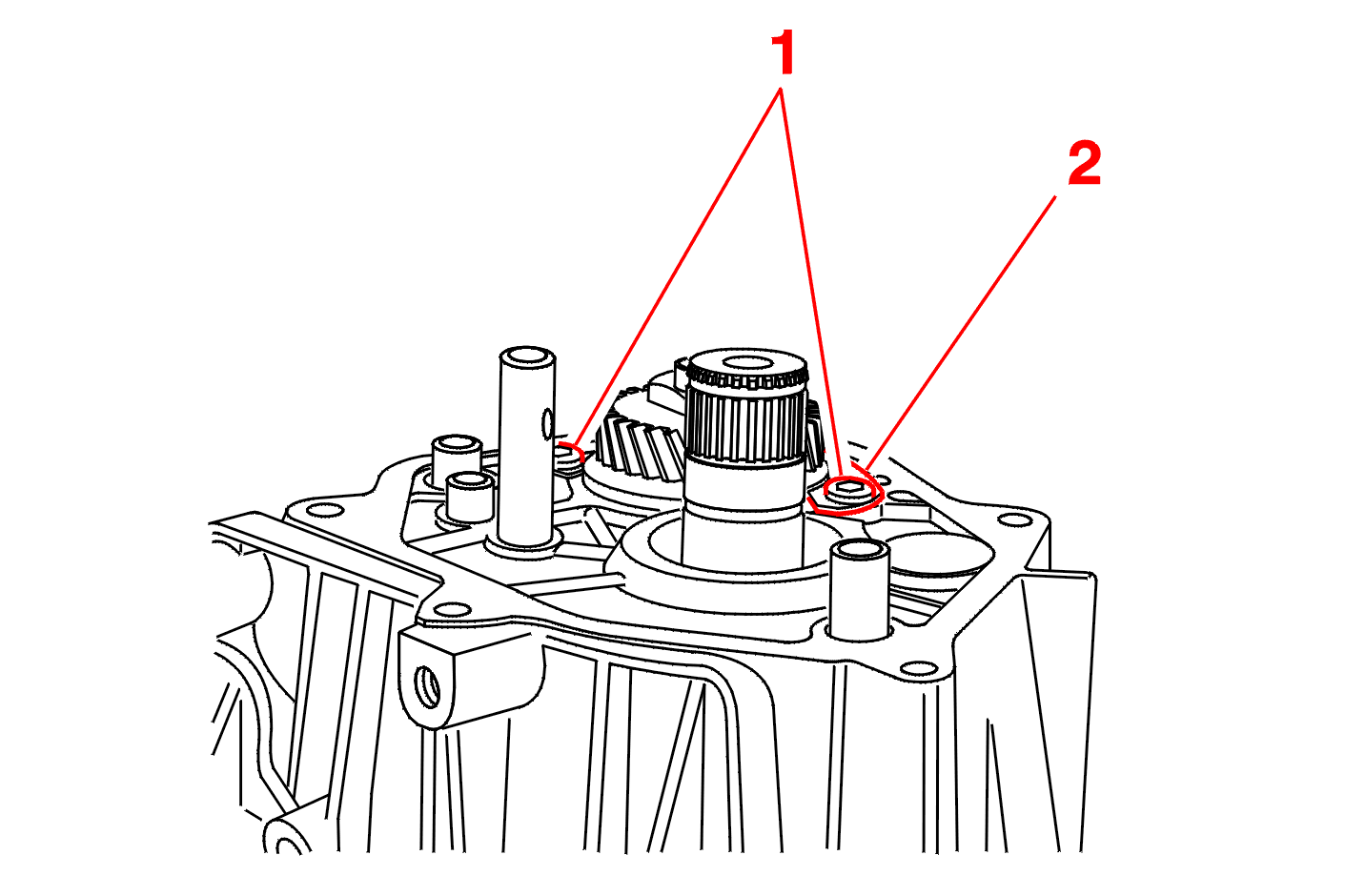

• the bolts (1)
• the stop ring (2)

Remove :

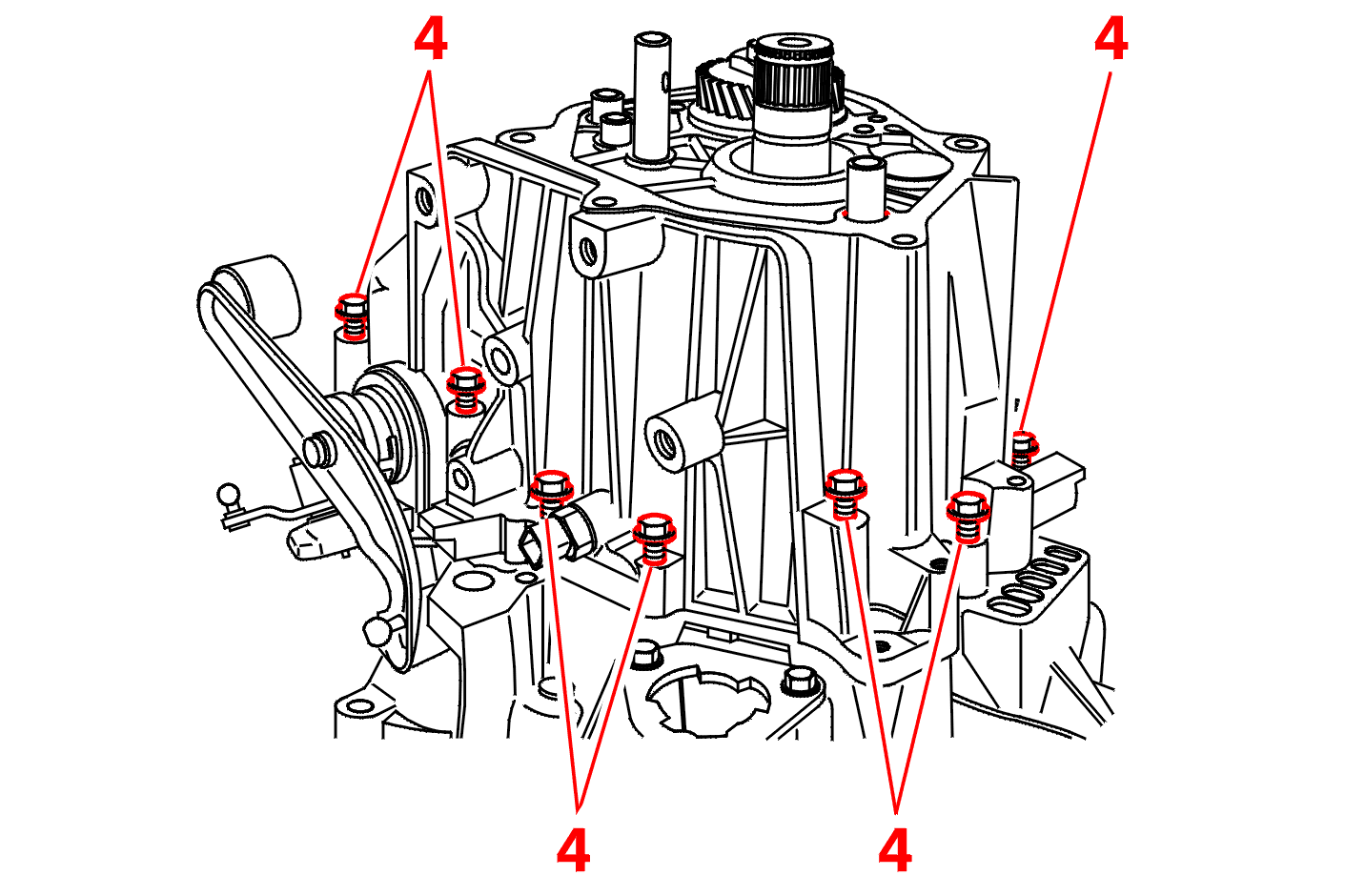

• the bolts (4)
• the gearbox casing

Recover the magnetic disc .
