B2CJ0NK1 - 406D9 ML5T GEARBOX

DISMANTLING - ASSEMBLY INPUT SHAFT

1 - PRELIMINARY OPERATIONS

Remove :

• THE INPUT SHAFT 5TH SPEED PINION
• THE GEARBOX CASING
• the control plate, THE INPUT AND OUTPUT SHAFTS

2 - DISMANTLING

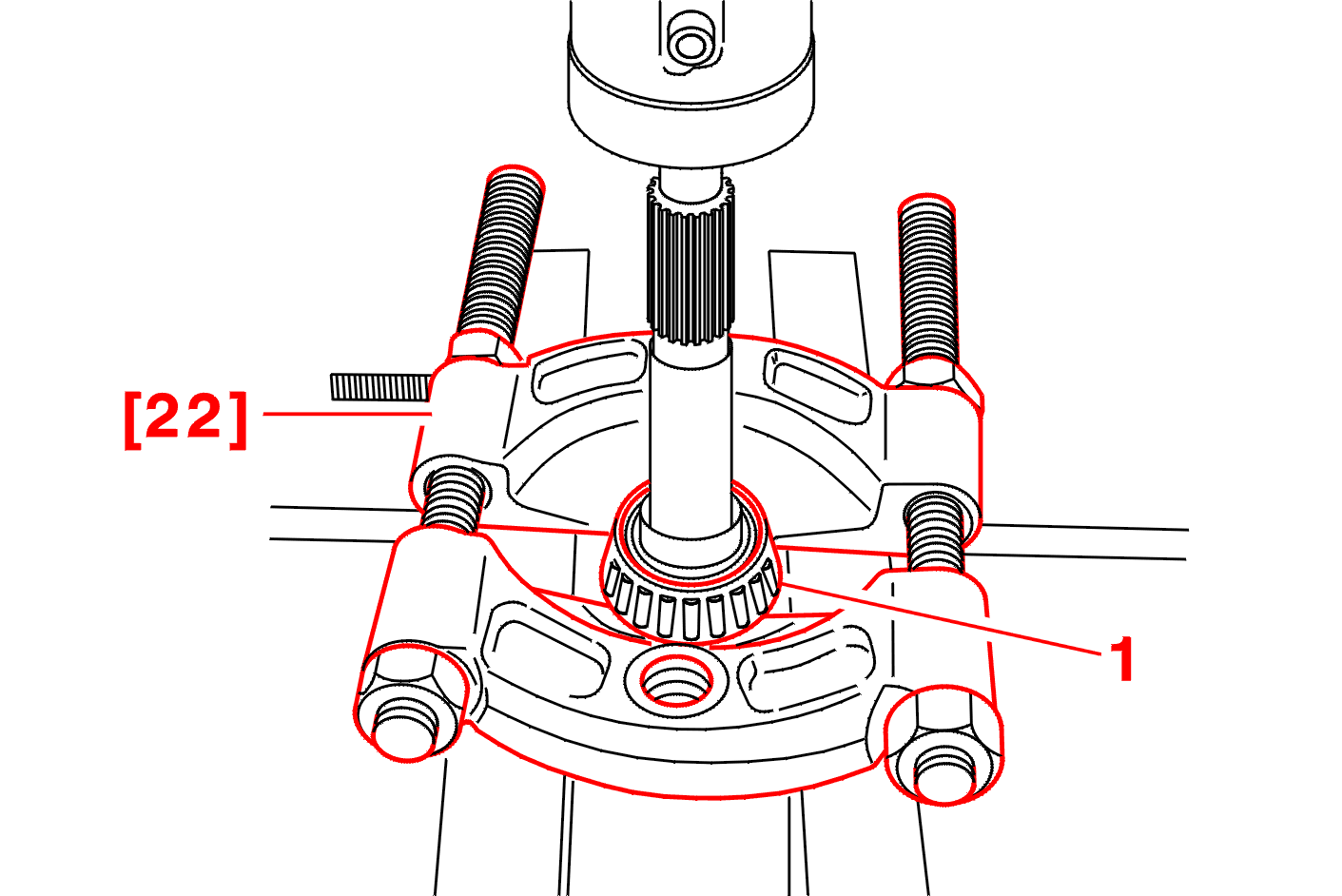

PRESS OFF THE BEARING (1) USING TOOL [22] .

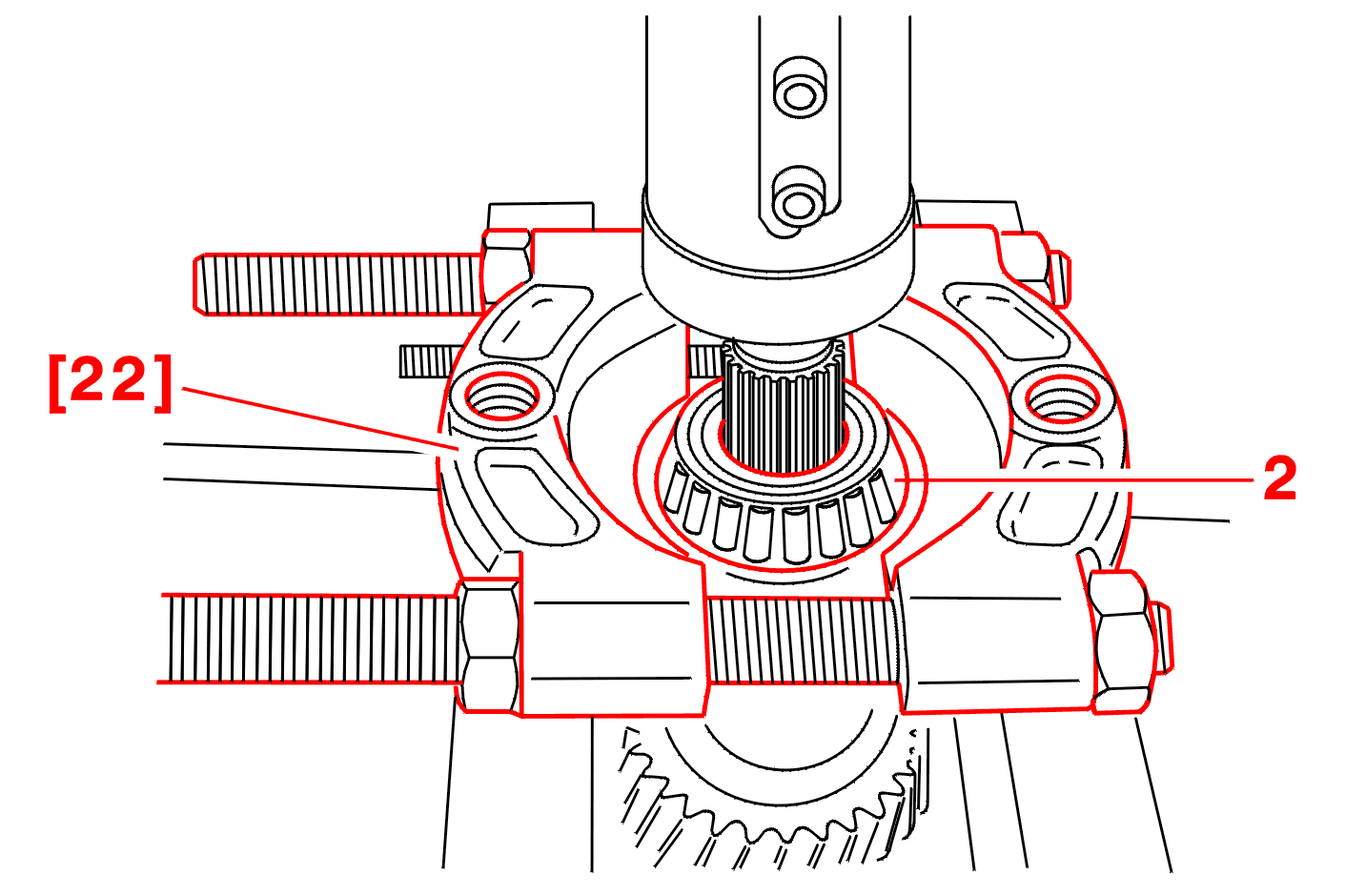

PRESS OFF THE BEARING (2) USING TOOL [22] .

WARNING : bearings removed must not be re-used .

3 - ASSEMBLY

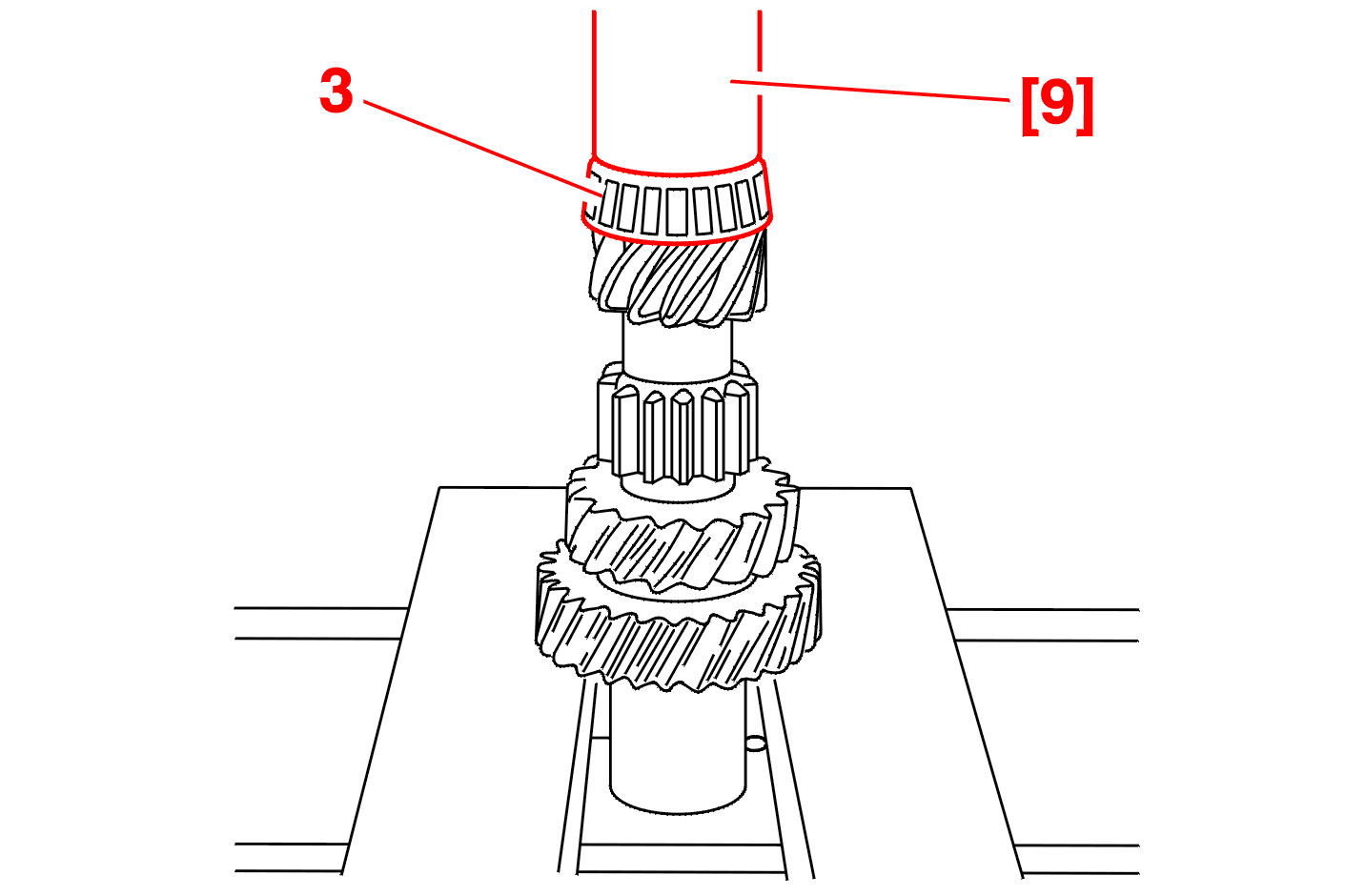

PRESS ON THE INNER RACE OF BEARING (3) USING TOOL [9] (1st speed end) .

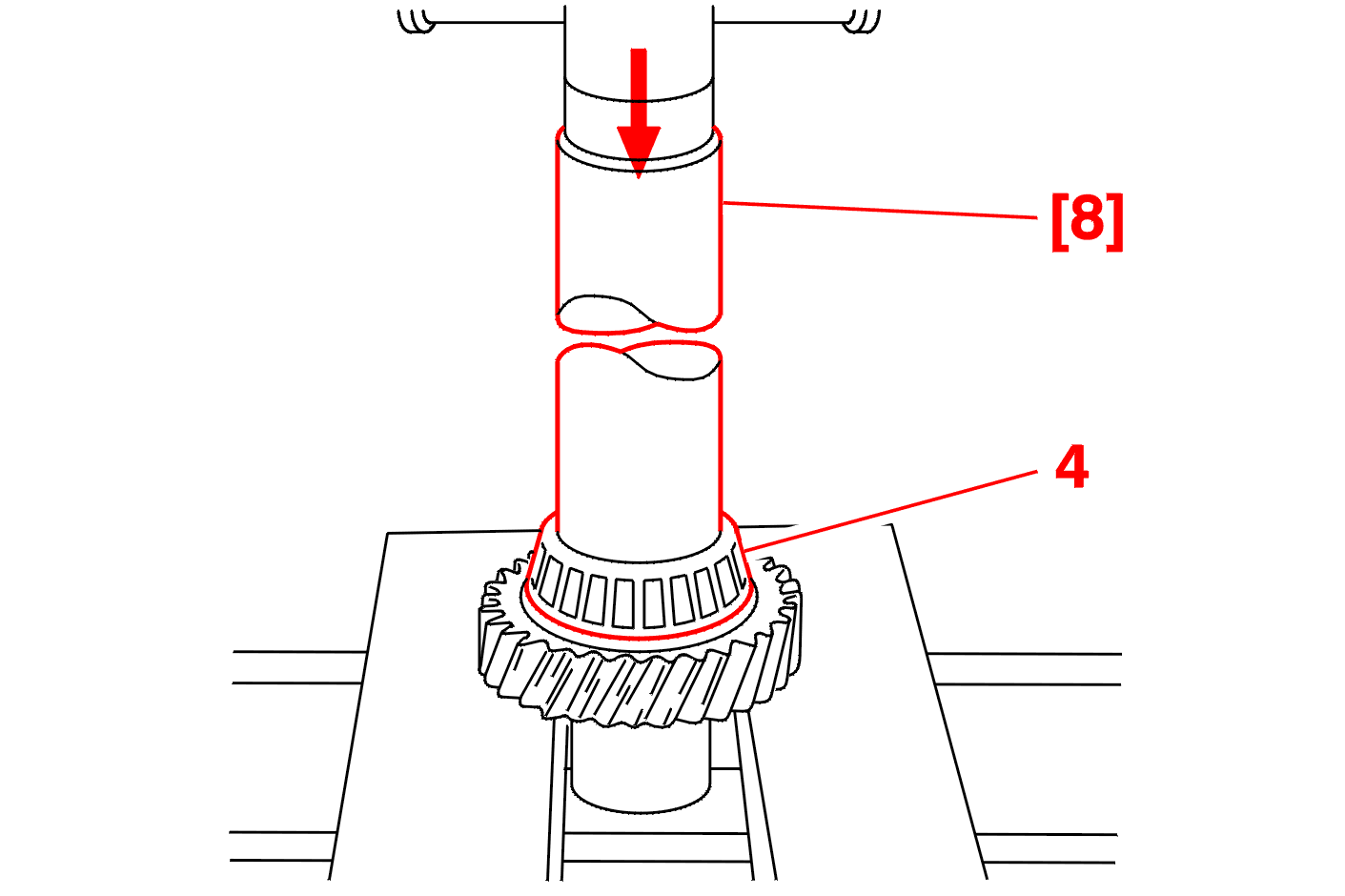

PRESS ON THE INNER RACE OF BEARING (4) USING TOOL [8] (5 th speed end) .
