B2CJ0OK1 - 406D9 ML5T GEARBOX

REMOVAL - REFITTING FORK GUIDE BALL RACES

1 - PRELIMINARY OPERATIONS

Remove :

• the 5 th speed gear
• THE GEARBOX CASING
• THE GEARBOX CONTROL PLATE
• the plate fork shaft

2 - DISMANTLING

2 - 1 - ON THE GEARBOX CASING

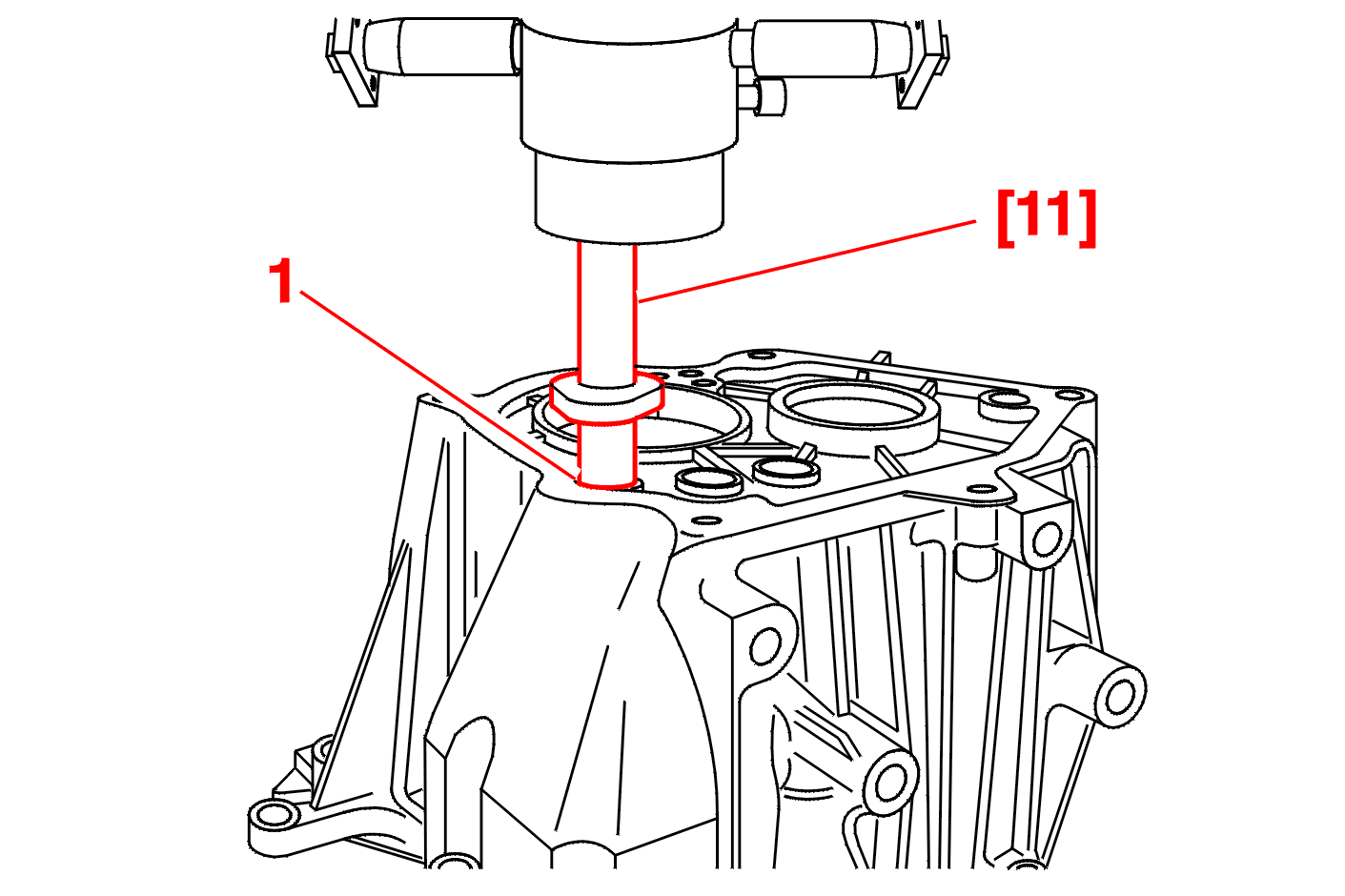

Press out the ball race (1) using tool [11] .

2 - 2 - ON THE GEARBOX CONTROL PLATE

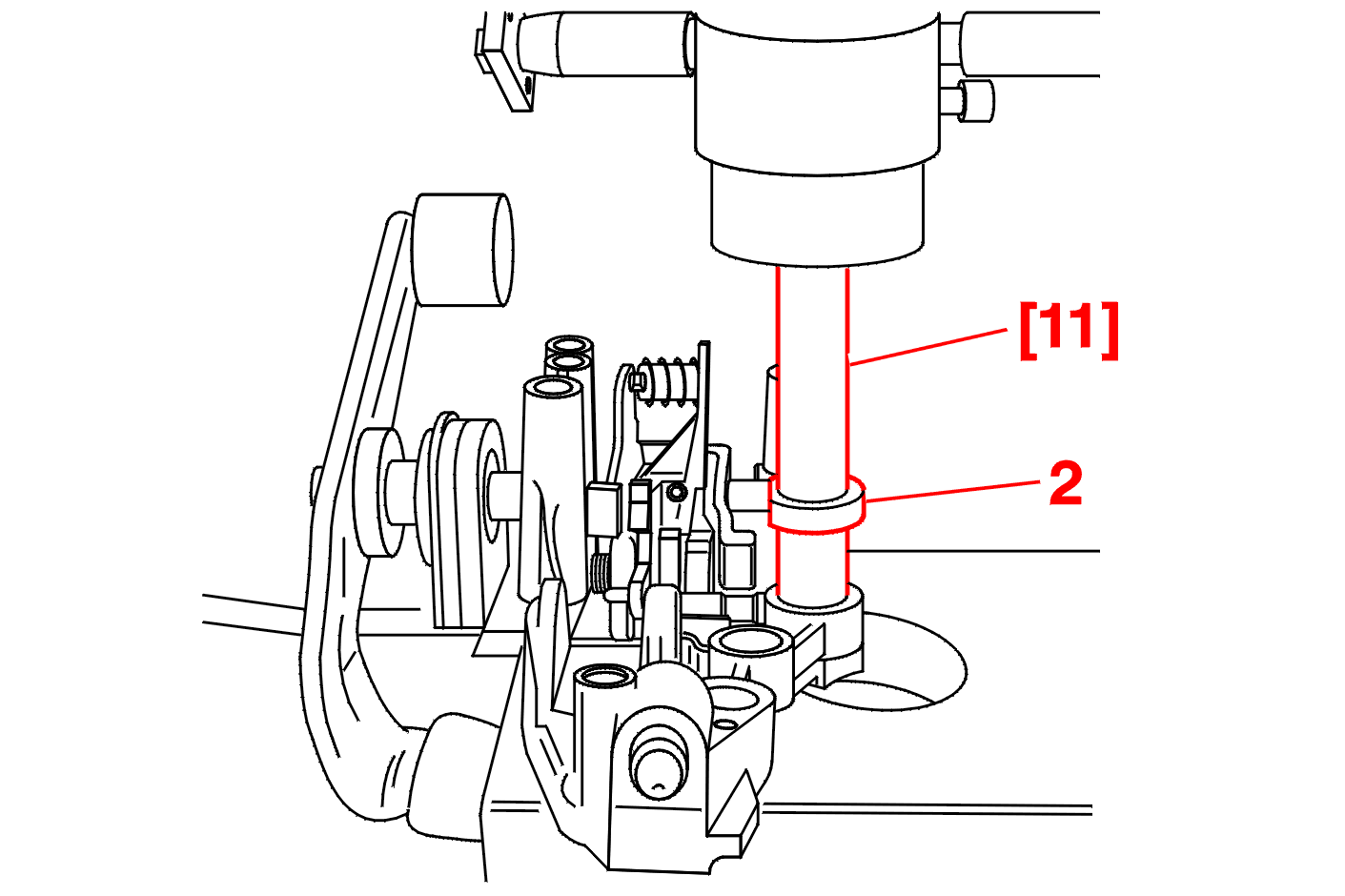

Press out the 1st/2nd fork shaft ball race (2), using tool [11] .

3 - ASSEMBLY

3 - 1 - ON THE GEARBOX CASING

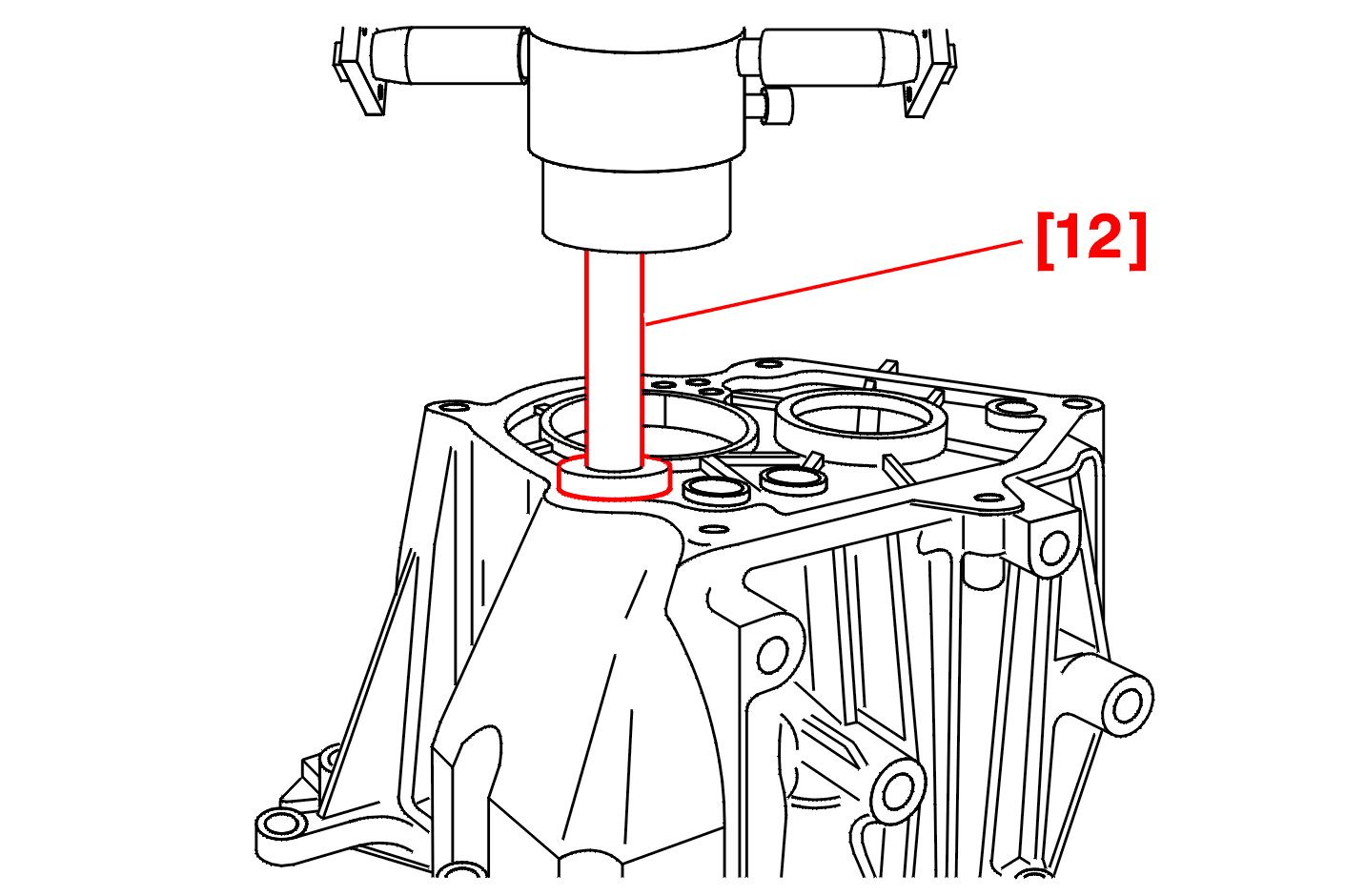

Fit a new needle roller bearing using tool [12] .

3 - 2 - ON THE GEARBOX CONTROL PLATE

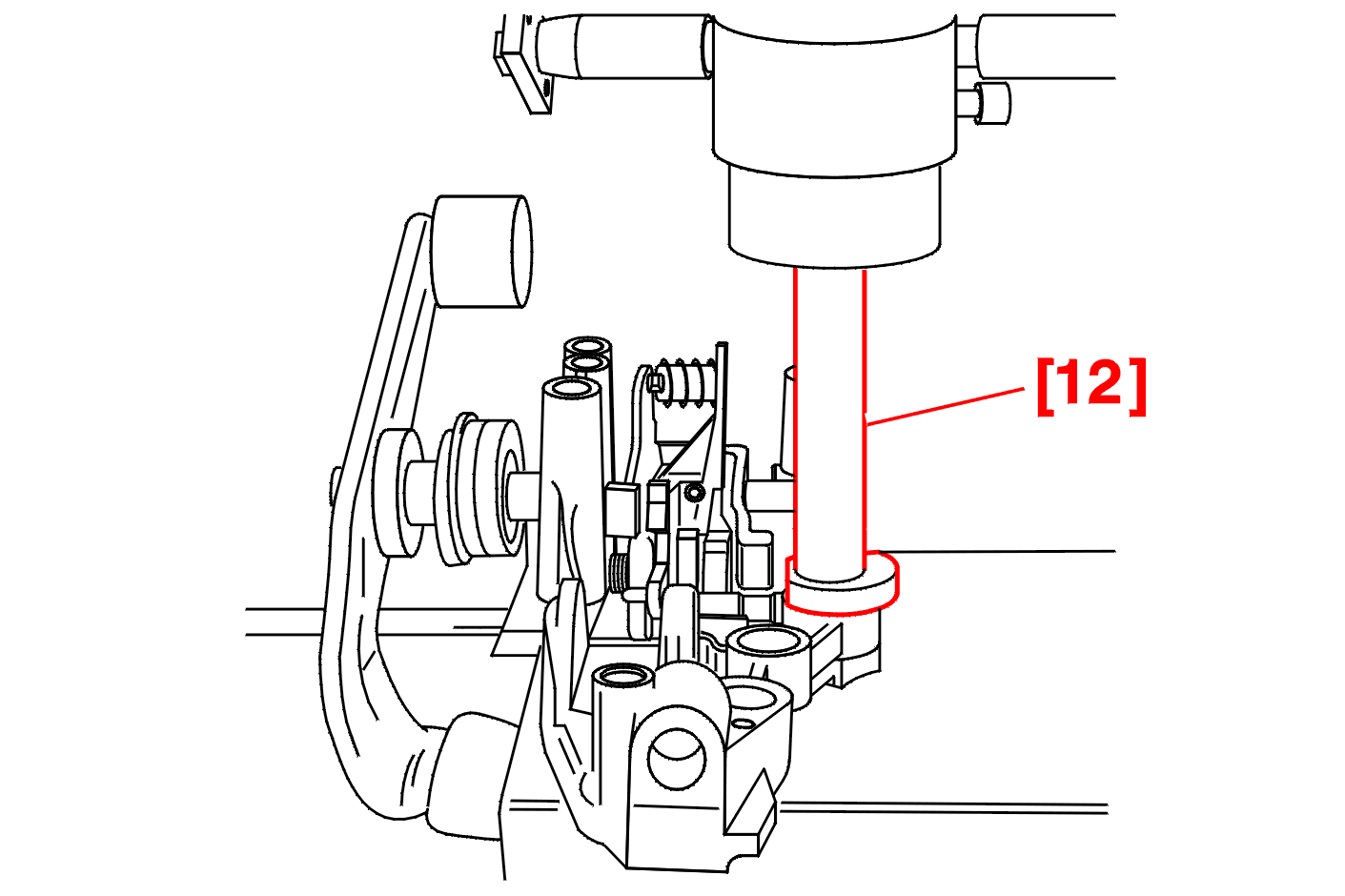

Fit a new needle roller bearing using tool [12] .
