B2CT0GK1 - 406D9 ML5T GEARBOX
MODIFICATION REVERSE SLIDING GEAR SHAFT
| from gearbox serial numbers on engine versions | ||
|---|---|---|
| engine | gearbox reference | serial number |
| ES9J4 | 20 LE 40 | 0206510 |
| ES9J4 | 20 LE 47 | 0206510 |
| DW10 ATED | 20 LE 50 | 0206510 |
1 - PARTS AFFECTED BY THE CHANGE
Reverse sliding gear shaft .
Gearbox casing .
2 - IDENTIFICATION

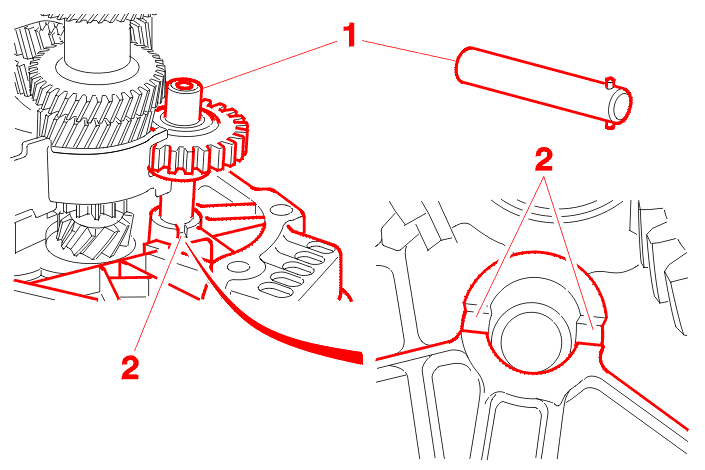

2 - 1 - EARLIER ASSEMBLY
Shaft with pin (1) .
Housing with slot (2) .

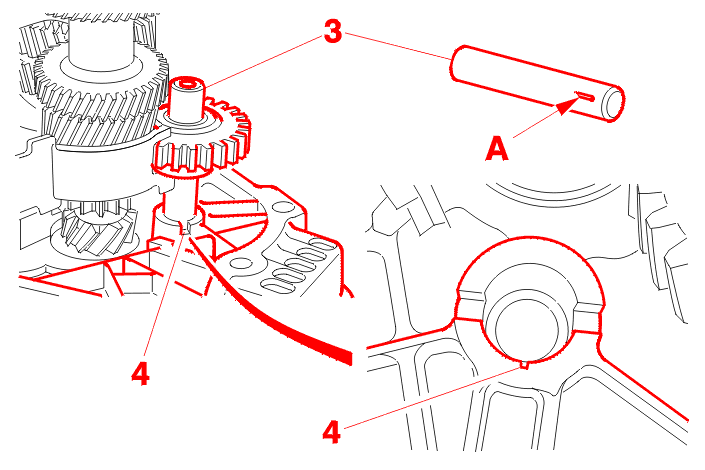

2 - 2 - LATER ASSEMBLY
Shaft (3) with irregular shaped part for stopping when rotating at (A) .
Housing with machining (4) .
IMPERATIVE : when refitting the shaft, line up the irregular shaped part with the machining in the housing .
3 - INTERCHANGEABILITY
It is possible to fit an old shaft in place of the new one, but not the other way round .
Parts Division sells both types of parts .
