B2CT0HK1 - 406D9 ML5T GEARBOX

MODIFICATION 5TH GEAR COVER

4-DOOR

from gearbox serial numbers on engine versions
engine	gearbox reference	serial number
ES9J4	20 LE 62	0274664
DW10 ATED	20 LE 56	0274664

COUPE

from gearbox serial numbers on engine versions
engine	gearbox reference	serial number
ES9J4	20 LE 60	0274664

1 - PARTS AFFECTED BY THE CHANGE

5th gear cover .

Oil inlet filler neck .

Seal .

2 - IDENTIFICATION

2 - 1 - EARLIER ASSEMBLY

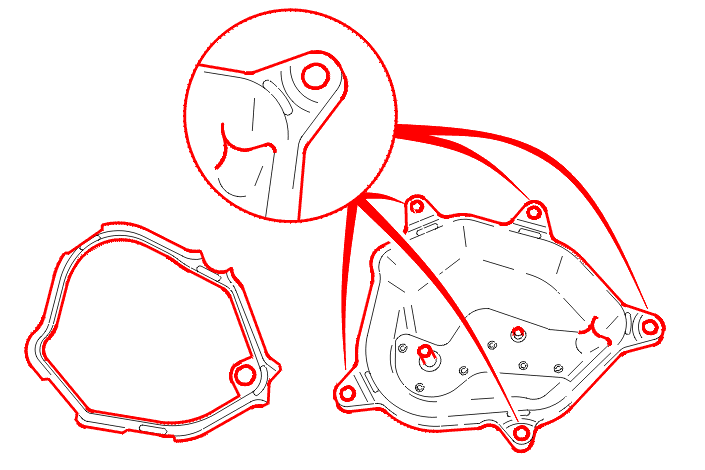

5th gear casing with flange to hold the seal .

Sealing between the gearbox casing and the 5th gear casing is provided by a rubber seal .

2 - 2 - LATER ASSEMBLY

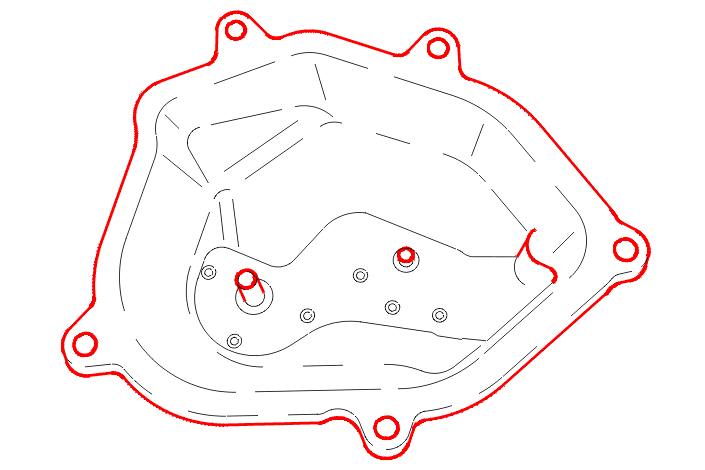

5th gear casing without flange .

Sealing between the gearbox casing and the 5th gear casing is provided by a silicone compound .

3 - SERVICE ACTION (PRECAUTIONS TO BE TAKEN)

To replace the rubber seal with a silicone compound seal, :

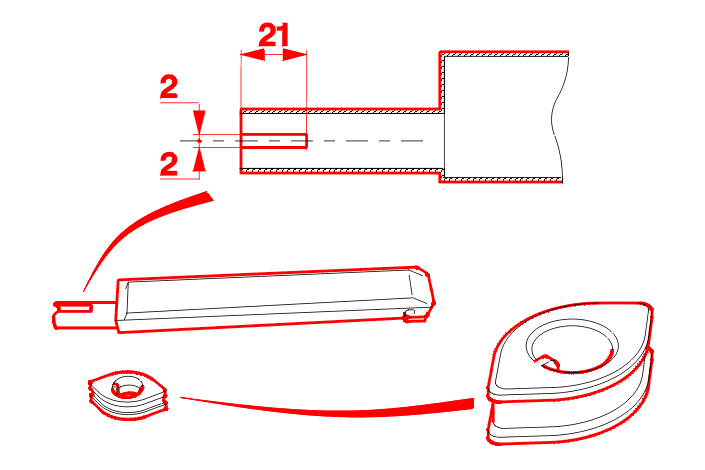

cut out the oil inlet filler neck or the seal tab
position the seal around the filler neck
evenly coat the gearbox casing joint face with a thin film of silicon sealing paste (white autoseal type R60)

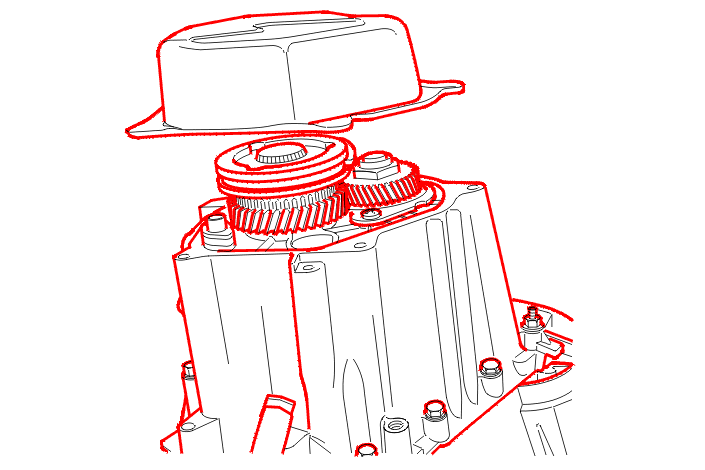

Refit the new casing, which can be identified by the flat flange .

4 - INTERCHANGEABILITY

Interchanging is possible, Follow the safety precautions to be taken .

When stocks are exhausted, Parts Division will only supply new specification parts .
