B2CT0IK1 - 406D9 ML5T GEARBOX
MODIFICATION 5TH GEAR STOP RING
| from gearbox serial numbers on engine versions | ||
|---|---|---|
| engine | gearbox reference | serial number |
| saloon/estate ES9J4 |
20 LE 64 | 0269643 |
| coupe ES9J4 |
20 LE 60 | 0269643 |
1 - PARTS AFFECTED BY THE CHANGE
5th gear stop ring .
Output shaft bearings, 5 gear side .
2 - IDENTIFICATION
2 - 1 - EARLIER ASSEMBLY

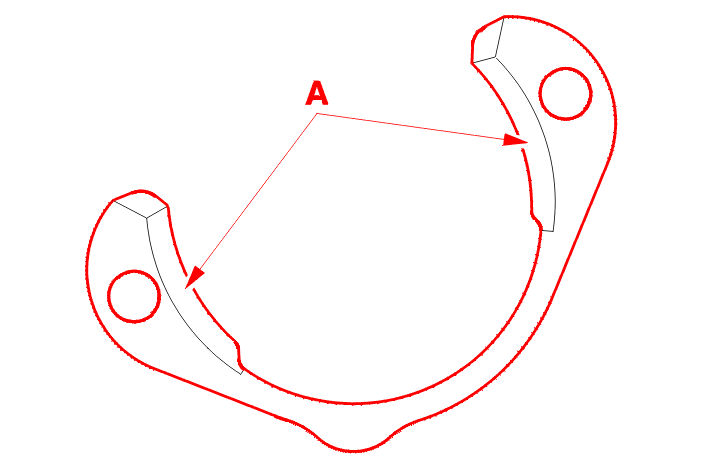

Stop ring with 2 bearing areas (A) .
2 - 2 - LATER ASSEMBLY

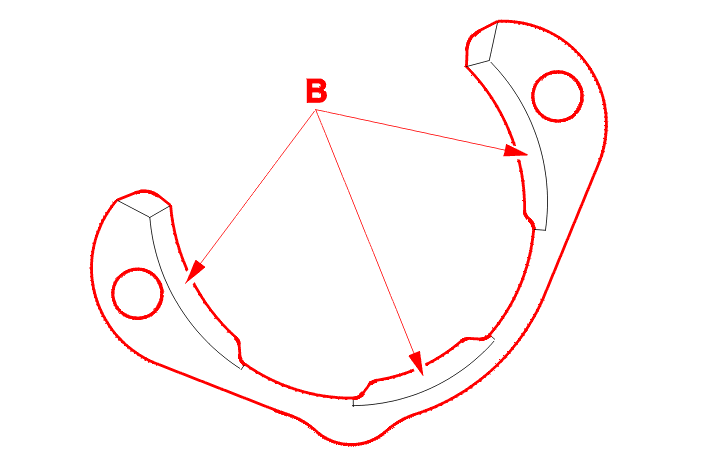

Stop ring with 3 bearing areas (B) .
Modification of the bearing is internal and cannot be identified .
3 - INTERCHANGEABILITY
IMPERATIVE : application of the new assembly to the engines V6 .
When stocks are exhausted, Parts Division will supply only the new assembly, This solution is valid for all ML5T manual gearboxes .
